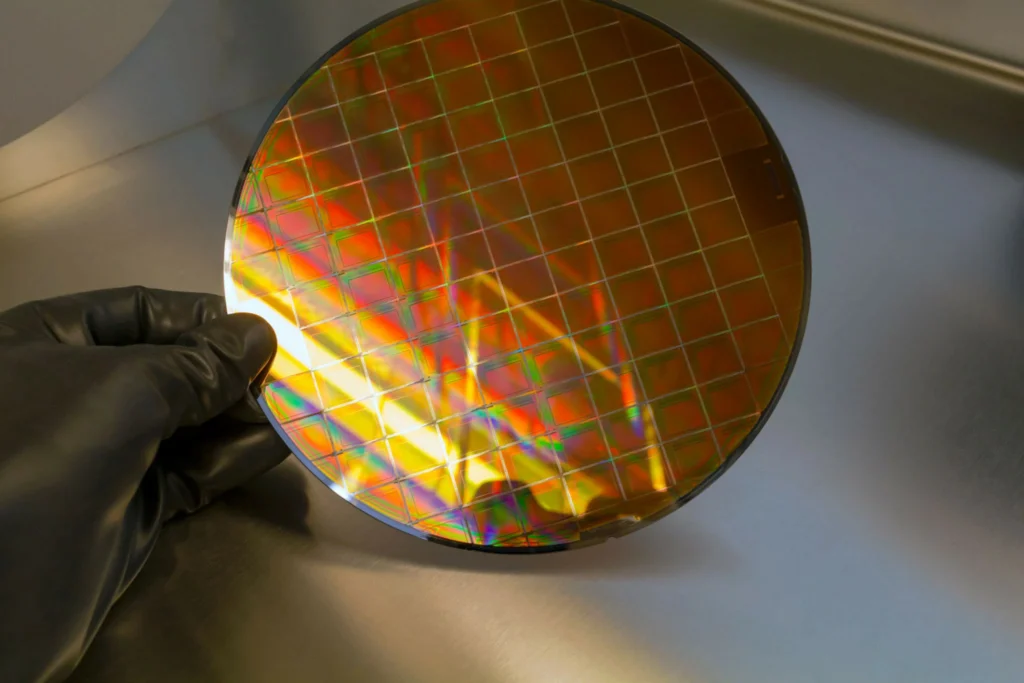

Borosilicate Glass Wafers for Robust Appliance Sensor Components

The Demands of Appliance Sensor Design

Modern home appliances increasingly rely on sensors to improve efficiency, safety, and user convenience. Temperature probes in ovens, pressure transducers in washing machines, turbidity sensors in dishwashers—each must deliver accurate readings while enduring extreme conditions. High heat, rapid thermal cycling, exposure to steam, detergents, and food acids challenge both the sensing element and its packaging. In many cases, the sensor’s performance hinges on a precision glass substrate or window that can maintain dimensional stability, optical clarity, and electrical insulation over the appliance’s lifetime.

For these applications, materials must resist thermal shock, corrosive chemicals, and mechanical stress without sacrificing signal quality. A borosilicate glass wafer offers an ideal foundation, combining a low coefficient of thermal expansion (CTE) with superior chemical durability and high transmission across the visible and near-infrared spectrum. Whether used as a diaphragm for a MEMS pressure sensor or as a protective cover for an optical detector, the right glass wafer ensures long-term reliability and consistent performance.

Why Borosilicate Glass Wafers Excel in Sensor Applications

Borosilicate glass wafers, particularly those meeting the ISO 3585 type 3.3 standard (such as Borofloat 33), are engineered for demanding environments. Their near-zero thermal expansion (CTE around 3.3 × 10⁻⁶/K) minimizes stress when bonded to silicon or metals, making them ideal for hybrid sensor assemblies. The glass’s annealing point above 500°C allows high-temperature processing, while its broad transparency—from 310 nm to over 2 μm—supports both optical and infrared sensing methods.

Compared to soda-lime or aluminosilicate glasses, borosilicate wafers show far greater resistance to water, acids, and alkalis, reducing the risk of surface degradation in humid or chemically aggressive surroundings. They are available in standard wafer sizes (100 mm, 150 mm, 200 mm) with precise thicknesses, mirror-like surface finishes, and tight flatness tolerances, ready for subsequent lithography, deposition, or anodic bonding steps. This versatility makes them a go-to substrate for appliance sensor developers.

Critical Selection Criteria for Sensor Wafers

When specifying a borosilicate glass wafer for an appliance sensor, several factors determine its suitability:

• Optical Transmission: Ensure the glass transmits the wavelength of interest—commonly visible light for optical encoders or near-IR for LED-based sensors. Typical internal transmittance exceeds 90% over the visible range for a 1-mm-thick wafer.
• Thermal Expansion (CTE): Mismatched CTE between the glass and other components can cause warping or seal failure during temperature swings. Type 3.3 borosilicate offers an excellent match to silicon (CTE ≈ 2.6 × 10⁻⁶/K) for anodic bonding.
• Surface Flatness and Roughness: For wafer bonding or thin-film patterning, total thickness variation (TTV) of a few micrometers and surface roughness below 1 nm Ra are often required. These parameters affect bond strength and lithographic resolution.
• Chemical Durability: Classified according to ISO 719 (hydrolytic resistance) and ISO 720 (volume acid resistance), borosilicate glass ranks high, resisting leaching and staining even after prolonged exposure to cleaning agents.
• Regulatory Compliance: Verify that the glass meets RoHS and REACH requirements; for food-contact sensors, ensure it complies with relevant standards like FDA 21 CFR.

From Prototype to Production: A Real-World Scenario

Consider a development team tasked with integrating a liquid-level sensor into a new smart dishwasher. The sensor uses a capacitive method, requiring two parallel electrodes separated by a stable dielectric. A 200 μm thick borosilicate glass wafer is chosen as the dielectric spacer for its uniform thickness, low dielectric loss, and resistance to hot, soapy water. During prototyping, the team tests several wafer batches, measuring capacitance drift under cyclic temperature changes from 20°C to 85°C. The borosilicate wafer maintains consistent readings, while alternative materials show significant drift due to moisture absorption.

As the design moves to pilot production, the wafer supplier provides detailed certificates of conformance covering CTE, thickness tolerance (±10 μm), and bow (<60 μm across a 150 mm wafer). The user engineers design a custom coating step to apply a hydrophobic treatment, further enhancing reliability. The result is a sensor that passes a 10,000-cycle endurance test without failure, accelerating the product’s time to market.

Planning for Success: Sizing, Tolerances, Coatings, and Integration

To streamline procurement and avoid costly rework, address these aspects early in the design process:

• Sizing: Standard diameters range from 2 inches (50.8 mm) to 8 inches (200 mm), with custom sizes available. Match the wafer diameter to your fabrication equipment’s handling capabilities.
• Tolerance Stack-Up: Specify total thickness variation (TTV), bow/warp, and parallelism. For example, a TTV of ≤5 μm and parallelism of ≤10 arcsec are common for MEMS-grade wafers.
• Coatings: Depending on the sensing principle, you might need anti-reflective coatings for optical sensors, conductive ITO layers for touch sensors, or protective films for harsh media. Confirm coating uniformity and adhesion with your supplier.
• Integration: Plan for wafer dicing, edge grinding, and cleaning steps. Many fabs require wafers in Cleanroom Class 100 packaging. Discuss handling, shipping, and storage requirements with the manufacturer.
• Logistics: For international orders, lead times can vary based on quantity and customization. Establish a clear quality agreement covering visual inspection criteria, sampling plans, and documentation.

Ready to Discuss Your Sensor Project?

Whether you are selecting a borosilicate glass wafer for a next-generation oven thermocouple or a pressure sensor for industrial laundry equipment, getting the specifications right is critical. Our engineering team can advise on material selection, dimensional tolerances, and coating options tailored to your application. Contact us to share your project requirements and receive a technical recommendation.

Why Borosilicate Glass Wafers Excel in Appliance Sensor Applications

Borosilicate glass wafers provide a stable, low-expansion dielectric platform for capacitive, optical, and ultrasonic sensors deployed in demanding appliance environments. Their inherent resistance to thermal shock, moisture, and chemical attack ensures consistent performance where alternative materials drift or degrade over time. This makes borofloat 33 glass a strategic choice for sensor substrates in dishwashers, washing machines, ovens, and refrigeration systems.

Critical Material Properties for Sensor Substrates

For appliance sensor components, material selection hinges on a combination of thermal, electrical, and mechanical stability. Borosilicate compositions such as Borofloat 33 exhibit a low coefficient of thermal expansion (CTE approximately 3.3 × 10⁻⁶/K), excellent flatness after lapping and polishing, and high transmission across visible and near-infrared wavelengths. These attributes minimize signal distortion in optical sensors and reduce parasitic capacitance shifts in capacitive level detection. The glass also demonstrates low dielectric loss (tanδ in the range of 40–50 × 10⁻⁴ at 1 GHz) and maintains surface integrity after repeated cleaning cycles with alkaline detergents. Compliance with FDA 21 CFR for incidental food contact further supports its adoption in kitchen and laundry appliances.

Manufacturing Processes and Quality Control

Producing borosilicate glass wafers for sensor applications involves multi-stage precision machining. Depending on the design, suppliers employ glass wafer cutting, coring, and edge grinding to achieve custom diameters from standard as-drawn sheets. Lapping and chemical-mechanical polishing (CMP) reduce thickness variation to within microns, while interferometry and profilometry verify bow, warp, and total thickness variation (TTV). For wafers requiring electrode patterning or anti-reflective properties, additional steps like ITO coating or AR coating may be integrated. Inline inspection typically follows ISO 10110 or supplier-specific surface quality standards, with certificates of conformance documenting CTE, transmission, and dimensional tolerances.

Key Facts for Buyers: Borosilicate Glass Wafers in Appliance Sensors

• Thermal stability: Withstands repeated cycling from sub-zero to 450 °C without delamination or cracking.
• Chemical durability: Resists hydrolysis and attack from common household chemicals, maintaining optical clarity.
• Electrical performance: Low dielectric constant and loss factor ensure accurate capacitive sensing in humid environments.
• Customizable geometry: Available in diameters up to 300 mm, thicknesses down to 100 µm, with optional holes and notches.
• Regulatory readiness: Can be supplied with compliance documentation for FDA, RoHS, and REACH requirements.

Evaluating Supplier Capabilities for Borosilicate Glass Wafers

When sourcing borosilicate glass wafers for appliance sensor projects, procurement teams should assess the following supply chain and technical factors. Material pedigree is critical—verify that the glass meets ISO 3585 or equivalent for borosilicate 3.3, and request batch-specific data sheets for optical transmission and CTE. Dimensional control capability is typically stated as a thickness tolerance class (e.g., ±10 µm) and bow/warp below 40 µm over a specified area. Lead times for custom custom glass wafer configurations can extend from a few weeks for standard sizes to several months when coatings or exotic profiles are required. Minimum order quantities (MOQs) are often negotiated per project, especially for pilot runs. Certifications such as ISO 9001 and environmental management to ISO 14001 indicate mature quality systems. Finally, ask about packaging and handling protocols; cleanroom-level packaging is essential to prevent particulate contamination on sensor-grade surfaces.

Integration Considerations for Appliance Sensor Assemblies

Integrating a borosilicate glass wafer into a sensor assembly demands attention to bonding methods and housing design. Anodic bonding to silicon is common for capacitive pressure sensors, while adhesive bonding with low-outgassing epoxies suits optical window applications. Coefficient of thermal expansion matching between the glass and mating components minimizes stress during thermal cycling. In optical sensor configurations, edge blackening or opaque coatings can reduce stray light. For ultrasonic sensors, the acoustic impedance of the glass should be matched to the coupling medium. Collaborating with the wafer supplier early in the design phase allows optimization of these parameters, reducing redesign iterations and speeding time-to-market.

To discuss your specific appliance sensor requirements and receive a tailored proposal, contact our engineering team with your drawings or specifications.
