Custom Shortpass Filter Glass for Appliance Optical Modules

In a brightly lit assembly cleanroom, an engineer snaps a thin, square glass filter into a sensor housing destined for a high-end smart oven. The filter’s task is precise: transmit the visible light that the gesture‑recognition camera needs, while blocking the infrared heat radiating from the baking element just centimeters away. That is the everyday function of a shortpass filter in an appliance optical module—selectively discriminating wavelengths to guarantee repeatable sensor performance in compact, thermally challenging environments.

Specification Overview

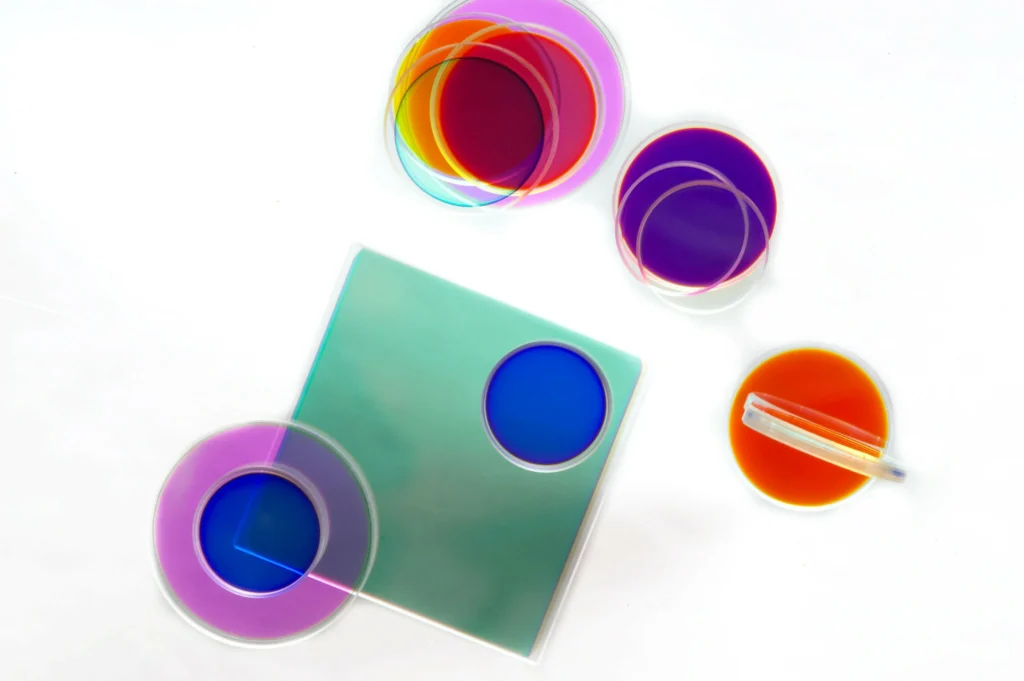

• Base Material – Optical glasses (BK7, Borofloat®), fused silica, or absorptive colored filter glass (e.g., Schott BG‑series equivalents)
• Dimensions & Thickness – Custom wafers and cut parts from 2‑inch to 8‑inch diameter; thickness 0.3 mm to 3 mm
• Dimensional Tolerances – Down to ±0.05 mm for critical fitments
• Flatness – λ/4 per inch as standard
• Parallelism – ≤ 1 arcminute
• Scratch‑Dig – 60/40 or better per MIL‑PRF‑13830
• Edge Finish – Ground, polished, or chamfered per assembly requirement
• Coatings – Dielectric thin‑film shortpass coating with customer‑specified cut‑off wavelength (e.g., 650 nm, 780 nm), optional anti‑reflective (AR) over‑coating, or integrated UV‑blocking layers

Variants and Grades

The product line spans two fundamental filter types, each with distinct performance trade‑offs. Absorptive colored glass filters rely on the bulk properties of doped glass (comparable to Schott BG‑series materials) to attenuate long wavelengths; they are mechanically robust, angles‑insensitive, and cost‑effective for high‑volume builds, though their spectral transition is gradual. Interference‑coated filters use vacuum‑deposited dielectric stacks to deliver a steep cut‑off slope and high in‑band transmission. They are ideal when optical density must rise sharply at a defined wavelength, but the coating’s spectral shift with angle of incidence must be accounted for in the module’s optical design.

Both variants can be supplied with cut‑off wavelengths ranging from 350 nm (UV‑shortpass) to 1100 nm (NIR‑shortpass). Buyers may select standard flatness and scratch‑dig grades or request tighter specifications for imaging‑class applications.

Typical Applications and Buyer Scenarios

Procurement teams sourcing for appliance optical modules choose shortpass filter glass for a focused set of use‑cases:

• Proximity and gesture sensors in smart kitchen hoods, ovens, and refrigerators—where passing ambient room light while rejecting IR from heat sources prevents false triggers.
• Ambient‑light sensors that automatically adjust display brightness on washing machines or thermostats.
• Barcode and QR scanners built into smart inventory systems, requiring visible‑light transmission and near‑IR blocking for reliable reading.
• Smoke‑detector optical chambers where a shortpass element isolates the LED’s scattered light from background IR.

Beyond appliances, the same filter glass portfolio serves medical diagnostic instruments, industrial machine‑vision cameras, and analytical sensors—wherever visible or UV light must be separated from longer‑wavelength interference.

Customization and Ordering Parameters

Every aspect of the filter can be tailored to the module’s geometry and optical budget:

• Mechanical features – custom rectangular or round formats, drilled holes, notches, and precise edge chamfers.
• Optical design – target cut‑off wavelength, transmission band, and out‑of‑band blocking density defined in your specification.
• Surface treatments – anti‑reflective, oleophobic, or hydrophobic top‑coats for touch‑sensitive or exposed surfaces.
• Packaging – cleanroom vacuum packing or custom tray stacking, compatible with automated pick‑and‑place lines.
• Quality documentation – spectrophotometer transmission traces, interferometric flatness maps, and dimensional inspection reports accompany every batch.

Minimum order quantities and lead times scale with complexity—from engineering prototypes to volume production. Typical lead times range 4–6 weeks after drawing approval, but final schedules are established during the technical review phase.

Start Your Technical Evaluation

Submit your outline drawing, target transmission curve, or module specification to our engineering team. We’ll analyze the requirements and return a detailed, binding proposal—typically within two business days. There is no cost for the initial design review. Let’s turn your appliance optical module concept into a qualified, manufacturable glass component.

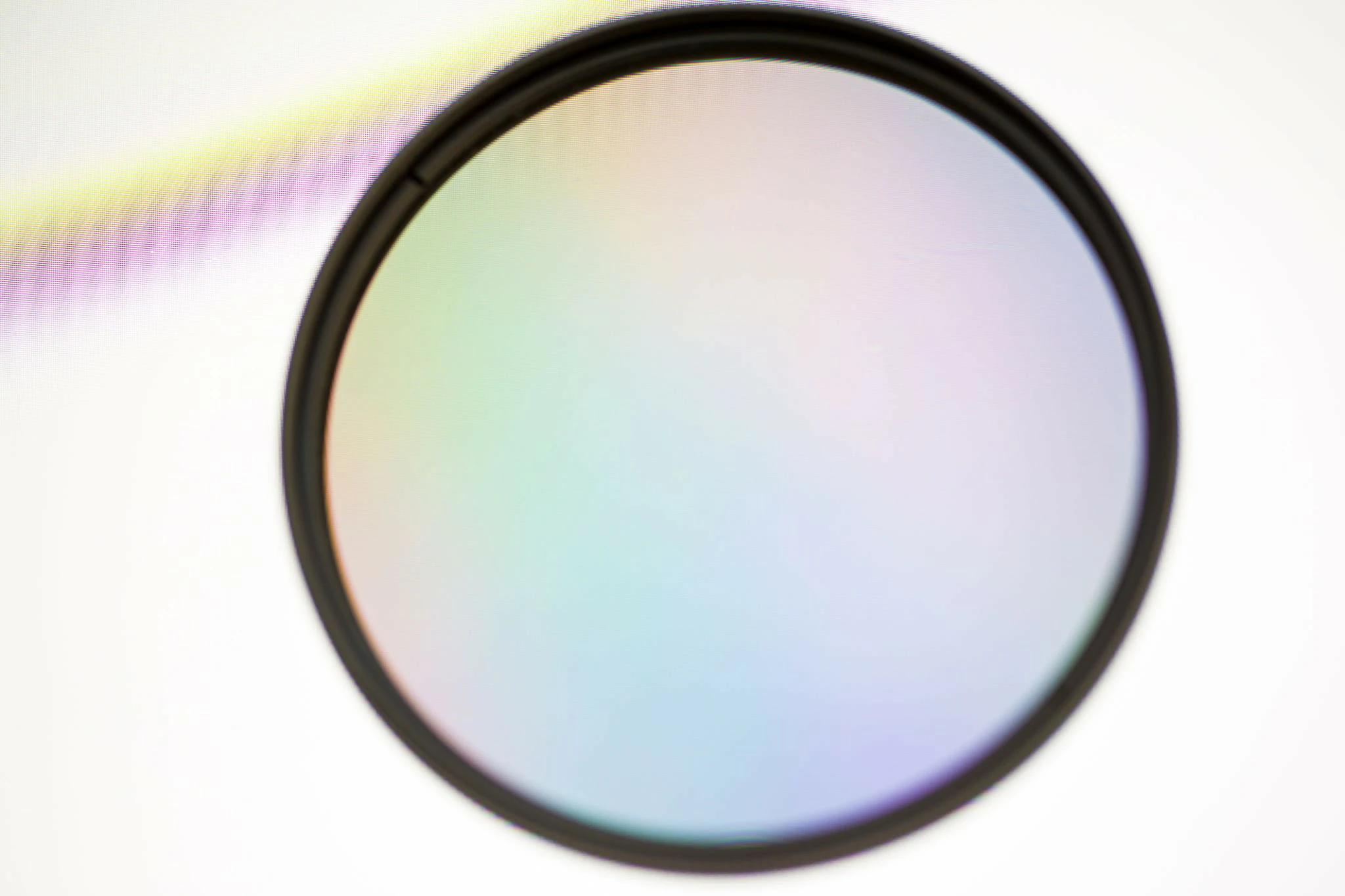

Custom Shortpass Filter Glass: Achieving Application-Specific Optical Cut-Offs

The primary function of a shortpass filter in an appliance optical module is to transmit wavelengths below a design threshold while attenuating longer wavelengths. This behavior is critical for eliminating unwanted near-infrared (NIR) interference in visible-light sensors, controlling stray light in display systems, and protecting delicate detectors from thermal radiation. Unlike off-the-shelf filters, custom shortpass filter glass allows procurement teams to specify the exact cut-off wavelength, substrate material, and mechanical dimensions required for seamless integration into the appliance’s optical path.

Design Considerations for Appliance-Integrated Shortpass Filters

Appliance optical modules present unique challenges compared to laboratory optics. Filters must often endure temperature cycles, humidity, and mechanical vibration without delamination or spectral drift. Substrate choice—fused silica, borosilicate glass, or sapphire—must balance thermal expansion, transmission range, and cost. Dielectric coating stacks are engineered to the target cut-off while maintaining high transmission in the passband, typically >90% from near-UV through visible. Edge seal or hard coating options extend life in non-hermetic enclosures.

Integrating Filters into Compact Modules

Space constraints in appliance modules demand thin, precise substrates, often 0.3 mm to 1.1 mm thick. Dimensional tolerances of ±0.05 mm and edge chips less than 0.2 mm are common requirements. Custom shapes, such as rectangles with radius corners or drilled mounting holes, reduce assembly steps and improve alignment accuracy. Discussing your mechanical drawing early in the design phase ensures the filter substrate can survive the dicing, edging, and coating processes without compromising optical performance.

Key Facts: Custom Shortpass Filter Glass for Appliances

• Substrate materials include optical borosilicate (e.g., Schott Borofloat®), fused silica, and sapphire, depending on thermal and spectral needs.
• Dielectric coatings provide steep transition slopes, typically from 50% transmission to OD4 within 20 nm.
• Typical cut-off wavelengths range from 400 nm to 700 nm, with custom values achievable through coating design.
• Double-side polished surfaces with 40-20 scratch-dig or better support high-yield device integration.
• Filters can be supplied as individual windows, wafer-level arrays, or die for direct bonding.

Material and Coating Durability in High-Volume Appliance Production

Procurement teams evaluating suppliers for appliance-scale volumes should verify coating adhesion under thermal shock (MIL-C-48497 or similar) and long-term humidity exposure (85°C/85% RH for 500 hours). Fused silica offers near-zero thermal expansion, making it the preferred substrate for applications with wide temperature swings. For cost-sensitive products, borosilicate shortpass filter glass provides sufficient thermal stability (CTE ~3.3 × 10⁻⁶/K) and can be ion-exchange strengthened for added robustness. Hard-oxide coatings withstand cleaning and handling better than soft fluoride layers, a key factor when integrating into automated assembly lines.

Quality and Certification: Ensuring Repeatable Optical Performance

Every production batch should include spectrophotometer transmission traces from 300 nm to 1100 nm, interferometric flatness maps (if flatness is <λ/4 per 25 mm), and detailed dimensional inspection reports. For medical or safety-critical appliance modules, traceability to ISO 10110 or ISO 13485 standards may be required. Partnering with a manufacturer that holds ISO 9001 certification and offers first-article inspection reports (FAIR) streamlines validation and reduces supply chain risk.

Move Forward with a Complimentary Technical Review

Our engineering team is ready to evaluate your appliance optical module concept and propose a custom shortpass filter glass solution that balances performance, durability, and cost. Send your target spectral curve, mechanical outline, and any environmental requirements. We will return a detailed proposal, including a spectrophotometric simulation, within two business days—no commitment required.
