Key Takeaways
- Custom perforated quartz plates are manufactured through a sequence of precise steps, including cutting, CNC drilling, lapping, polishing, and optional coating.
- Material selection—fused silica, borosilicate, or optical glass—directly impacts thermal, optical, and chemical properties for intended applications.
- In-line quality checks for dimensions, flatness, and surface quality guarantee components meet stringent industry standards.
- Production scales from prototype quantities to full-volume orders while maintaining consistent output through standardized processes.
From Quartz Blank to Precision Perforated Plate: The Complete Process

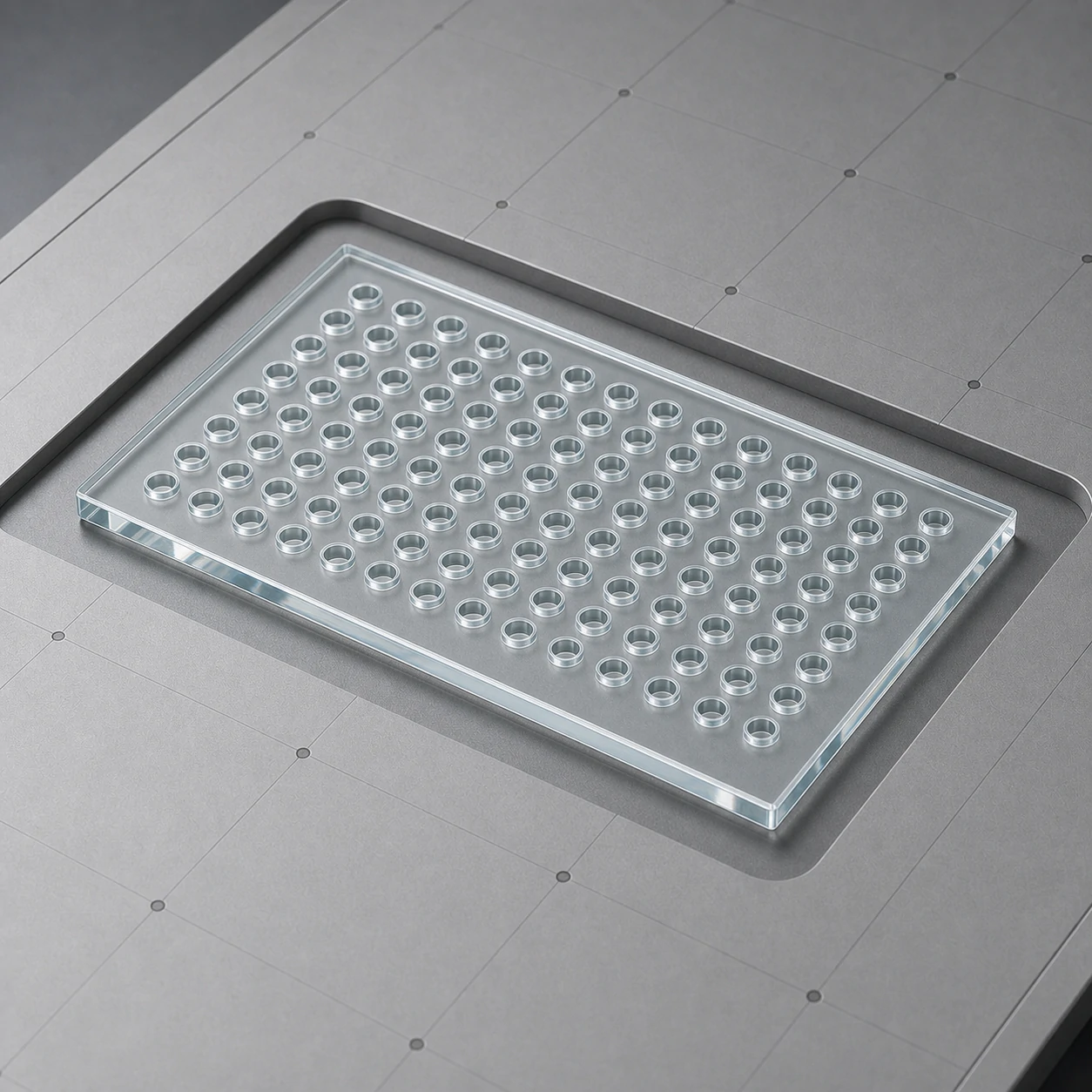

Custom perforated quartz plates are produced through a tightly controlled sequence of material selection, machining, surface finishing, and inspection. The goal is to deliver components where hole arrays, edge quality, and overall flatness meet exacting B2B specifications for semiconductor wafer handling, photonics mounts, microfluidic devices, and high-temperature processing tools.
Key Facts at a Glance
- Base materials include fused silica, borosilicate, and optical glass—chosen for thermal, optical, and chemical performance.
- Fabrication integrates CNC drilling, double‑side lapping/polishing, and optional magnetron sputtered coatings.
- Dimensional accuracy and surface quality are verified at multiple in‑line checkpoints, not only at final inspection.
- Scalable workflows accommodate prototype runs through high‑volume orders while maintaining consistent output.
Frequently Asked Questions
What base materials are available for custom perforated quartz plates?
Commonly used materials include high-purity fused silica (e.g., JGS1, JGS2), borosilicate glass (such as Borofloat 33), soda-lime glass, and optical glasses. The choice depends on the required thermal stability, optical transmission range, and chemical durability. Each material offers distinct advantages for specific industrial or scientific applications.
How are holes precisely drilled into quartz glass plates?
Precision CNC machining centers equipped with diamond tooling or laser drilling systems are used to create hole patterns. These methods achieve tight positional accuracy and clean hole edges. Drilling parameters are carefully controlled to avoid micro-cracking and chipping, especially on fragile quartz substrates.
What surface finishes are achievable on perforated quartz plates?
Through multi-stage lapping and polishing using cerium oxide or other slurries, surface finishes down to 40-20 scratch-dig (per MIL-PRF-13830B) and flatness within a few wavelengths (λ) can be consistently achieved. The exact finish depends on the starting material and post-processing requirements.
What coatings can be applied to perforated quartz plates?
Common coatings include anti-reflective (AR) layers for improved transmission in UV, visible, or IR spectra, as well as transparent conductive coatings like ITO (indium tin oxide) or FTO (fluorine-doped tin oxide). These are typically applied via magnetron sputtering to ensure uniformity even on plates with holes.
How is quality verified during production of perforated quartz plates?
Quality is checked at multiple stages using dimensional metrology tools, interferometers for flatness, optical microscopes for surface defects, and spectrophotometers for transmission. This ensures that every plate meets the required specifications before final cleaning and packaging.
