Key Takeaways
- Custom LED cover glass protects appliance indicator LEDs while maintaining optical clarity and withstanding thermal, chemical, and mechanical stress.
- Borosilicate glass is preferred for high‑heat applications, while chemically strengthened soda‑lime offers a cost‑effective solution for general use.
- Precision processes such as CNC cutting, screen printing, anti‑glare etching, and AR coating tailor the glass to exact design specifications.
- Key performance metrics include ≥90% visible transmission, surface quality of 60‑40 scratch‑dig or better, and dimensional tolerances of ±0.1 mm.
- Early design collaboration optimizes integration, from mounting methods and gasketing to LED‑diffuser spacing for uniform backlighting.
The Challenge: Reliable, Aesthetically Consistent LED Indication
How do you ensure that every LED indicator on a washing machine, oven, or smart home hub is bright, evenly diffused, and resistant to years of heat, moisture, and cleaning chemicals? Home appliance panels demand cover glass that combines high optical clarity with mechanical durability, precise dimensional control, and the ability to integrate decorative printing. Scratched, yellowing, or misaligned covers undermine user confidence and field reliability. Engineers face a balance of light transmission, thermal expansion compatibility, and long‑term stability across thousands of duty cycles.
How Precision Glass Resolves These Requirements
Precision‑manufactured cover glass — typically thermally tempered for safety and strength — can be fabricated to exacting sizes and shaped with drilled holes or notches for LEDs and switches. Its inherent scratch resistance outperforms polycarbonate or acrylic alternatives, and it maintains optical clarity without the yellowing that plastics exhibit under UV and heat. The glass can be screen‑printed on the reverse side with opaque borders, translucent icons, and diffusion patterns to control light spread. When an appliance OEM specifies a custom LED cover glass, they receive a component that consistently meets appearance and performance benchmarks across high‑volume production.
Selection Criteria for Appliance Indicator Glass
Choosing the right cover glass involves several key factors. Light transmission — clear soda‑lime glass typically exceeds 90% transmission in the visible spectrum; tinted or frosted options can reduce glare while preserving readability. Coefficient of thermal expansion (CTE) must match or be accommodated within the plastic or metal bezel to prevent stress fractures during thermal cycling. Flatness is critical for seamless gasket sealing and consistent backlighting; a deviation of a few micrometers can cause light leakage at the edges. Chemical durability ensures resistance to common household cleaners, oils, and humidity without delamination of printed layers. Compliance with regional safety standards (e.g., EN 60335 for household appliances) often drives the choice of thermally tempered glass that fragments into small, safe pieces on breakage.
A Typical Sourcing Scenario: From Specification to Production
Consider a product engineer at a global appliance brand developing a new oven control panel. The design calls for a 4‑mm thick tempered glass cover with back‑printed black border and translucent white icons for time, temperature, and mode LEDs. The engineer submits a 2D drawing with a dimensional tolerance of ±0.1 mm and requests a prototype run. The glass supplier reviews the file for manufacturability, suggests a micro‑etched diffusion coating to eliminate LED hot spots, and delivers 50 pre‑production samples. After fit, light, and environmental testing (including 85°C/85% RH aging), the design is locked. The supplier then transfers the process to a dedicated production line, maintaining color and transmission consistency batch after batch.
What to Plan For: Tolerances, Coatings, Integration, and Logistics
Early collaboration on design for manufacturability can avoid costly rework. Tolerance stack‑up must account for glass thickness variation (often ±0.05 mm), printing registration, and the housing’s shrinkage. Optical coatings — anti‑reflective (AR), anti‑fingerprint (AF), or diffusive — enhance user experience but require precise application and curing. Integration planning covers the LED placement, adhesive selection (double‑sided tape, liquid optically clear adhesive, or mechanical clips), and assembly fixturing, especially if the glass is flush‑mounted. Logistics involve packaging: vacuum‑sealed trays with interleaving protect against scratches and contamination during transport; for large panels, custom crating may be necessary.
Discuss Your Application with Our Engineering Team
Whether you are refining a next‑generation smart appliance or scaling an established product line, we invite you to share your project parameters. Our team can help you select from a range of substrate materials, refine your printing and coating stack, and provide qualification support — from first articles to full production ramp‑up. Contact us to start a technical conversation about your custom LED cover glass needs.

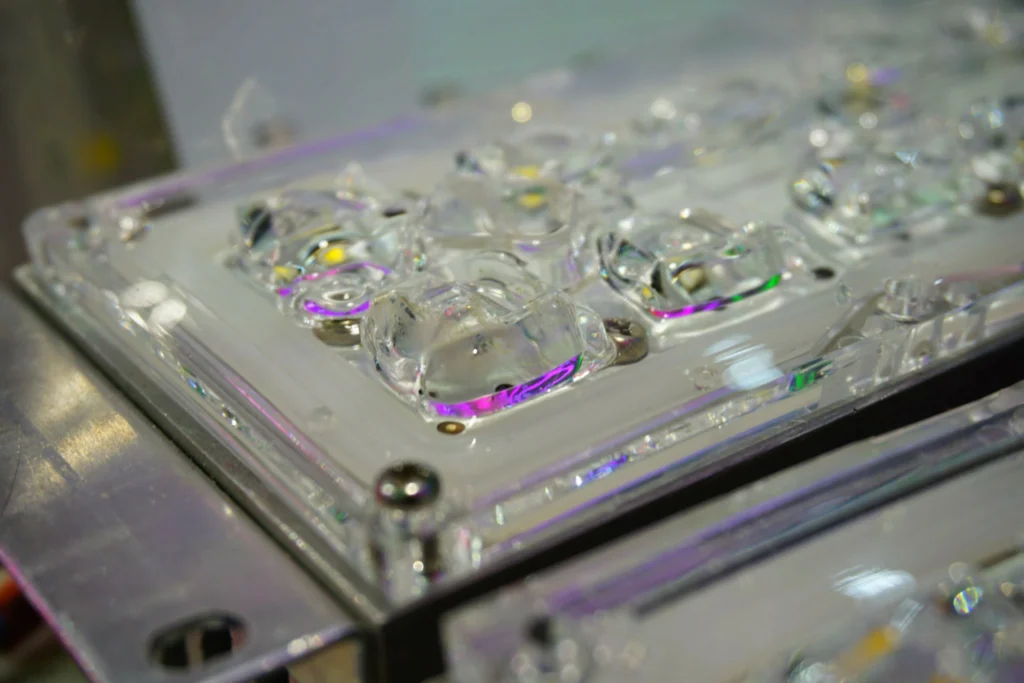

Custom LED Cover Glass for Home Appliance Indicator Panels
Custom LED cover glass provides a durable, precision-engineered window that protects indicator LEDs while meeting the optical, mechanical, and aesthetic demands of modern household appliances. When integrated into control panels for ovens, washing machines, dishwashers, refrigerators, and smart-home hubs, the glass ensures clear light transmission, resists thermal shock and chemical attack, and maintains a premium appearance over the product’s lifetime. By tailoring substrate material, edge finishing, coating, and printing to the specific appliance environment, you achieve consistent brightness, color fidelity, and user-interface clarity.
Material Selection for Appliance Indicator Glass
Choosing the right substrate is the first step to long-term reliability. Borosilicate glass (e.g. Borofloat 33) offers low thermal expansion and high thermal shock resistance, making it suitable for oven and cooktop panels. Soda‑lime glass, when chemically strengthened, delivers a cost‑effective solution with good impact resistance for general‑purpose appliance covers. Aluminosilicate glass provides superior scratch resistance and is often specified for premium touch‑control panels. For extremely high‑temperature environments, fused silica can be considered. Optical coatings further enhance performance: anti‑reflective (AR) layers push transmission above 99%, while anti‑fingerprint (AF) coatings keep the surface clean. For appliances requiring strict IR blocking, an IR‑cut filter coating can be applied. Our led package cover glass material guide details the properties and trade‑offs of these options.
Customization Processes for LED Cover Glass
Precision manufacturing transforms a glass blank into a ready‑to‑mount component. CNC cutting and edge grinding achieve exact dimensions, with chamfered or rounded edges to prevent chipping. For indicator layouts, micro‑holes can be drilled to align with individual LEDs, maintaining positional tolerances that prevent light bleed. Screen printing applies opaque borders, icon masks, and brand graphics in high‑temperature ceramic inks that bond permanently to the glass surface. Anti‑glare etching creates a matte finish that reduces reflections without sacrificing readability, a process detailed in our led glass etching capabilities overview. Chemical strengthening (ion exchange) can increase surface compressive stress for added impact resistance, and laser marking is available for serialization or traceability codes.
Key Quality Attributes and Compliance
The following facts summarize the performance criteria that matter for appliance indicator glass:
- Transmission: ≥ 90% in the visible range (400–700 nm) for clear glass; higher with AR coatings.
- Surface quality: 60‑40 scratch‑dig or better, ensuring no visible defects in illuminated areas.
- Dimensional tolerance: typically ±0.1 mm on length/width, with tighter tolerances available for high‑precision fits.
- Edge finish: ground, polished, or pencil‑edged to prevent handling damage and light‑pipe interference.
- Thermal shock resistance: borosilicate can withstand ΔT of 150°C, suitable for oven door applications.
- Chemical durability: resists common household cleaners, oils, and steam; passes ISO 719 / DIN 12116 testing.
- Compliance: materials and inks meet RoHS, REACH, and UL 94 V‑0 flammability requirements as needed.
| Material | Key Property | Typical Process | Common Use |
|---|---|---|---|
| Borosilicate (e.g. BF33) | Low CTE, high thermal shock resistance | CNC cutting, screen printing, AR coating | Oven, cooktop, high‑heat indicators |
| Soda‑lime (chem. strengthened) | Cost‑effective, good impact resistance | Cutting, edge polishing, anti‑glare etching | Washing machine, dishwasher, general panels |
| Aluminosilicate | High scratch resistance, thin profile | Precision drilling, AF coating, chemical strengthening | Premium touch panels, smart‑home interfaces |
| Fused silica | Extreme temperature and chemical stability | Water‑jet cutting, laser marking, IR coating | Specialized high‑temperature or laboratory appliances |
Integrating Custom LED Cover Glass into Your Appliance Design
Early collaboration with your glass supplier streamlines the integration of the cover glass into the appliance sub‑assembly. Consider the mounting method: adhesive bonding with double‑sided tapes or liquid optically clear adhesives (LOCA) ensures a flush, seamless appearance, while mechanical clips simplify serviceability. Gasket materials should be chosen to compensate for differential thermal expansion between the glass and the plastic or metal housing. For uniform backlighting, the glass thickness and diffuser distance must be co‑optimized; a mock‑up with the actual LED layout and cover glass can validate brightness uniformity before tooling. Finally, plan for packaging: vacuum‑sealed trays with interleaving protect against scratches during transport, and custom crating may be required for large panels.
Whether you are developing a new appliance platform or improving an existing indicator panel, we invite you to send your drawings and specifications. Our engineering team can recommend the optimal material and finishing stack, provide first‑article samples, and support your ramp‑up with scalable production. Contact us to begin a technical discussion about your custom LED cover glass project.
Frequently Asked Questions
What is the best glass material for an oven indicator panel?
Borosilicate glass, such as Borofloat 33, is often the best choice for oven indicator panels due to its low coefficient of thermal expansion and high thermal shock resistance (ΔT up to 150°C). It can withstand repeated heating and cooling cycles without cracking, and it can be screen‑printed with high‑temperature ceramic inks for permanent markings.
How do I prevent light bleed between LEDs in a cover glass?
Light bleed can be minimized by drilling individual holes aligned with each LED and applying an opaque black border through screen printing around the indicator areas. Anti‑glare etching on the glass surface also helps diffuse stray reflections, while tight dimensional control of the hole positions ensures each LED sits exactly in its designated cavity.
Can custom LED cover glass be chemically strengthened for impact resistance?
Yes, both soda‑lime and aluminosilicate glasses can be chemically strengthened through ion exchange, creating a compressive surface layer that significantly increases impact and scratch resistance. This process is suitable for appliances that may endure frequent handling or accidental knocks, such as washing machine and dishwasher panels.
What anti‑fingerprint coating options are available for appliance glass?
Anti‑fingerprint (AF) coatings are typically fluoropolymer‑based, applied via vacuum deposition or spray coating, and are oleophobic and hydrophobic. They reduce smudges and make cleaning easier, which is especially valuable for touch‑control panels on high‑end ovens and refrigerators. The coating is often combined with an anti‑reflective layer to maintain optical clarity.
What tolerances can I expect for a custom LED cover glass?
Standard dimensional tolerances for length and width are typically ±0.1 mm, with tighter tolerances achievable through CNC machining. Hole diameters and positions can hold tolerances down to ±0.05 mm. Flatness, important for flush mounting, is often specified as a maximum deviation of 0.05 mm over 100 mm, depending on the glass thickness and subsequent processing.
