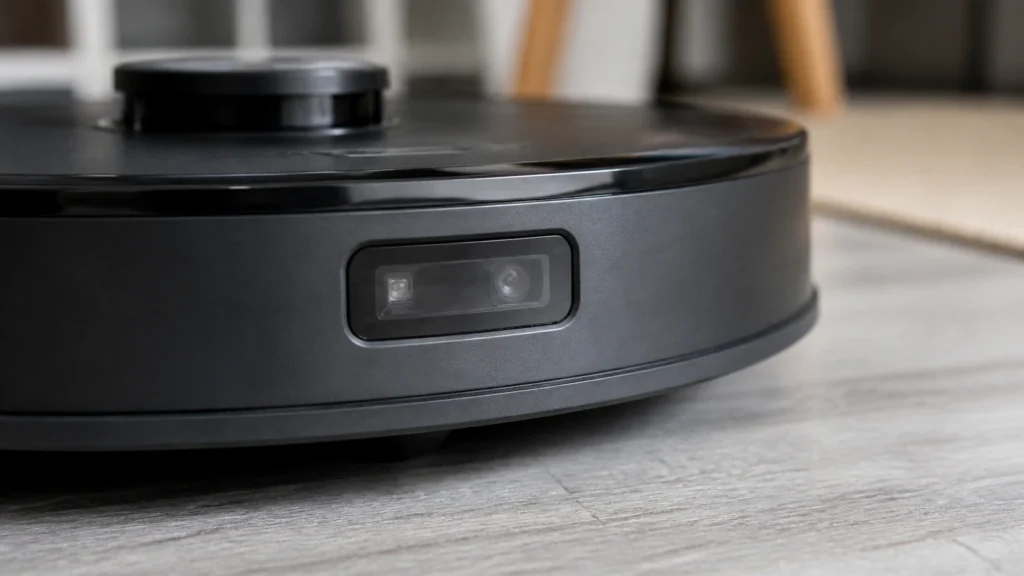

Bulk Ordering Glass Windows for Robotic Vacuum Optical Sensors

How Bulk Ordering Works for Optical Sensor Windows

When your engineering team specifies a glass window for a robotic vacuum’s optical sensor array, you need more than a component supplier—you need a manufacturing partner who can deliver high-precision optics at scale. Our bulk ordering process is designed to move from technical review to repeatable production as smoothly as possible. It starts with your drawing and performance requirements: material choice, dimensions, optical clarity, and any coatings for scratch resistance or anti-reflection. After feasibility confirmation, we align on volume tiers and provide a detailed quotation. From there, you receive production samples for approval, then we ramp to full production under agreed lead times. Every order ships with complete documentation and traceability, ensuring your sensor assemblies perform consistently in the field.

MOQ and Volume Tiers

Bulk orders for appliance sensor windows typically begin with minimum order quantities in the low hundreds for initial production runs. These MOQs reflect the setup of precision grinding, polishing, and coating equipment. For high-volume OEM programs, quantities can scale to tens of thousands of units per release, with tiered pricing that reduces per-unit cost as volumes increase. Custom tooling—such as a diamond grinding wheel profile for a unique outline—may involve a one-time charge, which we amortize over the first production batch or spread across a long-term supply agreement. Please contact us with your target annual volumes to receive a tiered quotation.

Lead Times and Production Scheduling

Standard lead times for optical-grade glass windows range from 4 to 8 weeks, depending on the complexity of the specification. A simple soda-lime or borosilicate window without coating may ship in 4–5 weeks, while those requiring anti-reflective (AR) coatings, anti-fog treatments, or chemical strengthening will schedule at 6–8 weeks. Production steps—cutting, edging, polishing, coating, inspection—are planned into our master schedule upon order confirmation. For time-sensitive product launches, we can offer expedited services where capacity allows. We also work with procurement teams to set blanket orders with call-off releases, aligning production cadence with your assembly line demand.

Cleanroom Packaging and Fragile-Glass Shipping

To protect surface quality and optical performance, every glass window is handled in an ISO Class 7 or 8 cleanroom environment. Direct contact surfaces are kept free of particles and outgassing residues. Parts are packaged in anti-static, particle-free trays or vacuum-sealed PE bags—particularly important when windows integrate directly into electronic sensor modules. For bulk shipments, trays are stacked with interleaved foam sheets, placed in double-wall cartons, and then crated with shock-absorbing foam inserts. We palletize cargo for sea freight and secure it for air freight, and we can arrange door-to-door logistics through our partner carriers. Packaging designs are validated to ISTA standards to ensure your components arrive flawlessly.

Commercial Terms, Documentation, and Reordering

Our standard export terms follow Incoterms 2020: FOB Shenzhen is common, with CIF and EXW available by agreement. Payment is typically structured as 30% T/T with order confirmation and 70% before shipment; alternative terms can be considered for established accounts. Every delivery includes a packing list, commercial invoice, and a certificate of conformity. Upon request, we provide material certification, optical test reports (e.g., transmission spectra), and compliance documents such as RoHS and REACH declarations. For ongoing supply, we can maintain safety stock of finished windows or allocate dedicated production capacity, enabling short-notice reorders. A part number is assigned at the first order, simplifying repeat procurement and ensuring exact specification replication.

Request a Bulk Quotation

To begin, share your window drawing, target annual quantities, and any special requirements—optical transmission, surface flatness, coating type, and delivery milestones. Our applications team will review the specification and return a comprehensive bulk supply proposal, including tiered pricing, lead time, and logistics options. We look forward to supporting your robotic vacuum sensor program with consistent, high-clarity glass windows built for volume manufacturing.

Bulk Supply of Optical Sensor Windows for Robotic Vacuum Cleaners

High-volume procurement of glass windows for robotic vacuum optical sensors requires specifying material, dimensions, surface quality, and optical coating to meet sensor performance and durability thresholds. These windows serve as protective barriers for time-of-flight, infrared, or laser-based sensors, enabling precise navigation and obstacle detection while withstanding vacuum cleaner operating conditions such as vibration, temperature swings, and occasional impact.

As a precision glass manufacturer, we produce optical windows in bulk for appliance OEMs, with expertise in substrate selection, precision machining, and optical thin-film coatings. Our production line accommodates custom shapes, ranging from small discs to large rectangular panels, with tight dimensional tolerances and high cosmetic standards that ensure consistent sensor readouts across thousands of units.

Optical Glass Materials and Coatings for Sensor Windows

Substrate Materials

Robotic vacuum sensors typically operate in the infrared or visible spectrum. The choice of glass substrate affects transmission, mechanical strength, and cost. Common materials include:

• Borosilicate glass (e.g., Borofloat 33): Good thermal shock resistance and chemical durability, suitable for wideband visible and near-IR transmission. Often used in cost-sensitive appliance sensor windows.
• Fused silica (JGS1, JGS2): Higher transmission in UV to IR, low coefficient of thermal expansion, excellent scratch resistance. Ideal for high-end laser-based sensors requiring low wavefront distortion.
• Sapphire: Extreme hardness and scratch resistance, broadband transmission from UV to mid-IR. Used in premium robotic vacuums where sensor windows face abrasive debris.
• IR-transmitting glasses: For sensors using longer wavelengths, infrared window glass materials like germanium or chalcogenide may be specified, though these are less common in consumer appliances.

Anti-Reflection Coatings

To maximize sensor efficiency, an anti reflective optical window coating is often applied. AR coatings reduce surface reflections, improving signal-to-noise ratio and preventing ghost signals from internal reflections. For robotic vacuums, a broadband AR coating covering the sensor’s operating wavelength range (typically 850 nm or 940 nm for IR) is standard. We apply electron-beam evaporation or ion-assisted deposition for durable, high-performing films that withstand cleaning and daily wear.

Key Procurement Facts

• Robotic vacuum optical windows must maintain high transmission at the sensor’s operating wavelength, often in the near-infrared.
• Common substrate choices: borosilicate for cost-effectiveness, fused silica for thermal stability, and sapphire for scratch resistance.
• AR coatings improve sensor accuracy by reducing stray reflections; broadband coatings are typical for multi-wavelength sensors.
• Surface quality (scratch-dig) of 60-40 or better per MIL-PRF-13830B ensures minimal scattering.
• Consistent dimensional control and edge finishing prevent fitment issues in automated assembly lines.
• Cleanroom packaging and traceable lot numbers are standard for bulk supply to appliance manufacturers.

Specifications and Quality Requirements

When issuing a bulk purchase specification, include the following parameters to ensure the window meets both optical and mechanical demands:

• Material: Select from borosilicate, fused silica, sapphire, or other IR-grade glass.
• Dimensions: Outer diameter/length × width × thickness, with tolerance typically ±0.1 mm or tighter.
• Surface flatness: λ/2 to λ/10 per inch at 632.8 nm, depending on wavefront distortion requirements.
• Surface quality: 60-40 scratch-dig or better, to minimize light scatter.
• Optical coating: Broadband AR or single-layer MgF₂, with reflectance <1% per surface at design wavelength.
• Edge finishing: Ground, seamed, or polished to prevent chipping during robot assembly.
• Environmental durability: Adhesion per MIL-C-675C, moderate abrasion, and temperature/humidity cycles.
• Certifications: RoHS, REACH, and optionally conflict minerals reporting.

Start Your Bulk Order for Robotic Vacuum Sensor Windows

To receive a customized quotation for high-volume glass window production, provide your sensor window drawing, target annual quantities, and optical performance requirements. Our engineering team will propose the optimal substrate, coating, and tolerance package, along with tiered pricing and logistics details. We ship worldwide and support long-term supply agreements with JIT or Kanban delivery.

Send your specifications to our applications team or click below to request a consultation.
