How to Handle and Maintain Precision Glass Components in Laser Systems

Where Precision Glass Components Fit in Your Optical or Laser System

In an optical or laser system, precision glass components serve as the critical interfaces that shape, direct, and protect the light path. Whether you’re working with a high-power laser cutter, a sensitive interferometer, or a compact medical imager, parts like optical windows, lenses, beam splitters, and prisms determine beam quality, transmission efficiency, and overall system stability. Even a minor scratch or misalignment on a laser optical window can scatter energy, distort the beam profile, or lead to catastrophic damage. Understanding how these components work and where they sit in the process is the first step toward reliable operation and long service life.

Before You Start: Setup, Power, Safety, and Site Requirements

Proper preparation prevents damage to both the glass components and the system. Before handling any precision glass part, ensure the work area is clean, well-lit, and free of airborne contaminants. A laminar flow bench or cleanroom environment is ideal for bare glass handling, but at minimum, a dust-free zone with static-dissipative surfaces should be set up. Always power down and lock out the laser or optical system prior to removing or installing components. If the system uses high-voltage power supplies or Class 4 lasers, follow your organization’s safety protocols for personal protective equipment (PPE), which typically includes laser safety eyewear and, depending on the glass, cut-resistant gloves.

You’ll need the right tools: lens tissue, anhydrous-grade isopropyl alcohol or a proprietary optical cleaner, a bulb blower or compressed air (filtered to remove moisture and oil), and handling tools such as tweezers with soft tips or vacuum pick-ups. Never touch optical surfaces with bare fingers, as skin oils can absorb laser energy and create hot spots. Keep all glass components in their original protective cases until the moment of installation, and allow them to acclimate to room temperature if transported from cold storage to prevent thermal shock.

Step-by-Step Operation: Handling, Installation, and Maintenance

The following steps cover the core workflow for typical precision glass components like laser optical windows, lenses, and mirrors. Always consult the component’s datasheet for material-specific recommendations, such as solvent compatibility with anti-reflective coatings.

1. Inspect the Component
   Remove the component from its case under clean conditions. Examine the surfaces under a bright, oblique light to look for dust, scratches, pits, or coating defects. If the part has a wedge or is specified for a particular orientation, note the manufacturer’s marking—often a small arrow or engraved dot.
2. Clean When Necessary
   Only clean an optical surface if contamination is visible or if the component is being reinstalled after storage. Start by blowing off loose particles with a bulb blower or filtered compressed air. Never wipe a dry surface. Fold a piece of lens tissue into a pad, apply a few drops of appropriate solvent, and wipe in one continuous, gentle stroke from the center outward, rolling the tissue as you go to lift debris. Repeat with fresh tissue each stroke. Avoid circular motions, which can grind particles into the glass.
3. Prepare the Mount or Holder
   Check that the mounting surface or cell is free of burrs and contaminants. Use a lint‑free cloth dampened with isopropyl alcohol to clean metal interfaces that will contact the glass. Ensure that all set screws, retaining rings, or springs are loose and ready to receive the component without forcing. Over-tightening is a common cause of stress birefringence and fracture.
4. Mount with Minimal Stress

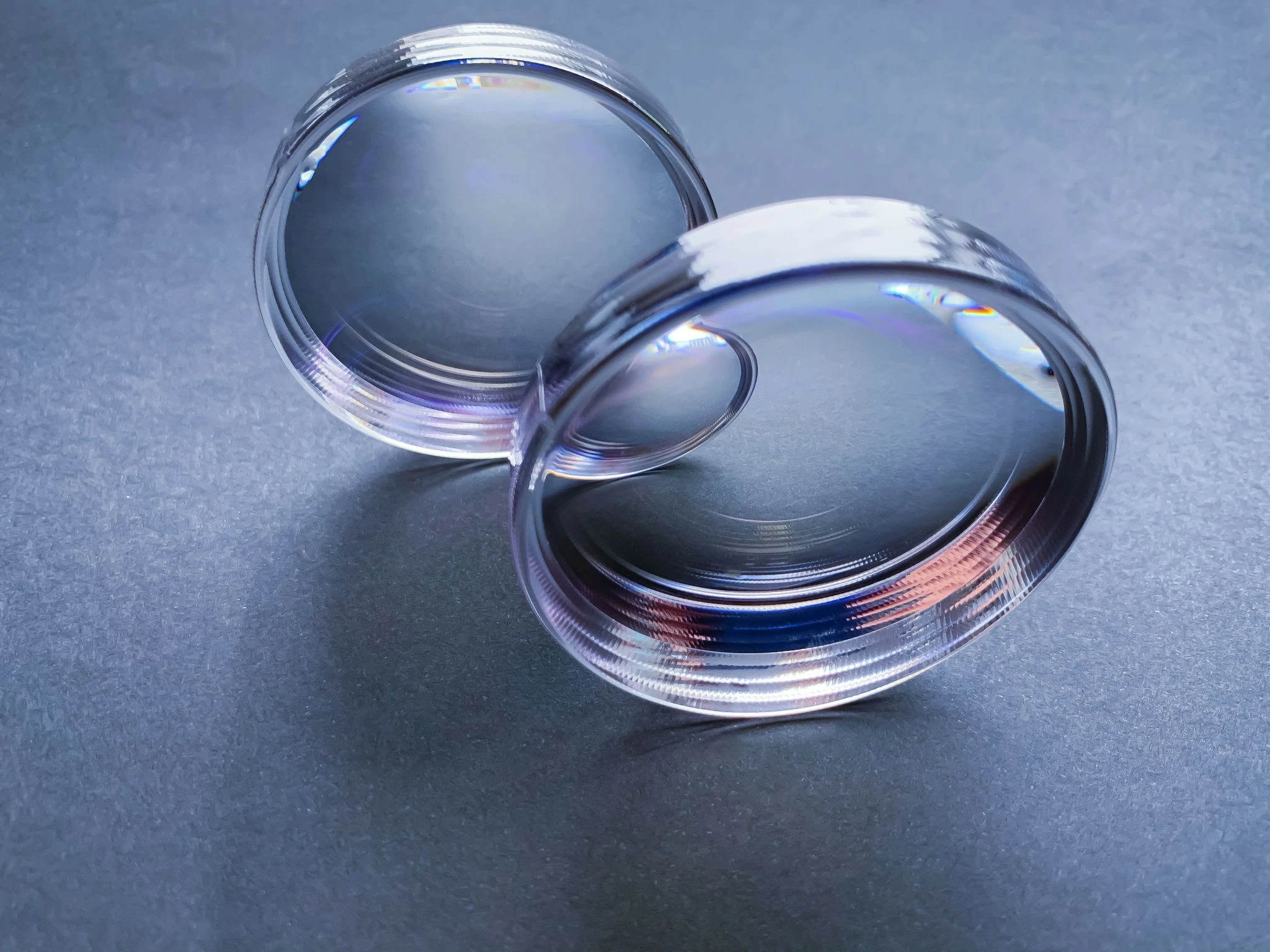

   Place the component into its mount using clean tools. For a lens, orient it correctly—usually the curved side faces the incoming beam if it’s a plano-convex lens. For a laser optical window, the flat surfaces should sit squarely against the mounting pads. Tighten retaining hardware in a star pattern to distribute pressure evenly, but stop as soon as the component is held firmly. A torque recommendation is not provided here, so rely on tactile feedback: the part should not move, but there should be no visible signs of deformation or stress.
5. Align Within the Optical Train
   Once mounted, perform a rough alignment by eye, then use alignment tools—such as a shear plate or an autocollimator—to bring the optic to the required position and angle. For typical laser optical windows used at normal incidence, a reflected beam back onto the aperture is often a sign of good alignment. Always start at low laser power and observe the beam profile on a target card before ramping up.
6. Power On and Verify Performance
   With all personnel wearing appropriate laser safety eyewear, power up the system to a low or testing level. Look for unwanted reflections, ghost beams, or hotspots on beam dumps. Gradually increase to operational power while monitoring thermal effects; if you see rapid heating, shut down and investigate misalignment or contamination. Record baseline transmission or power readings for future reference.
7. Routine Monitoring and Cleaning Schedule
   Environmental conditions dictate how often components need re-inspection. In a clean facility, check weekly for dust accumulation. In production areas, daily inspections may be necessary. When cleaning on‑the‑fly, avoid touching the component while the system is energized. Always follow the same gentle cleaning technique described above, and replace any component that shows persistent film or pitting that cannot be removed.

Best-Practice Settings for Quality and Yield

After verifying system integrity at low power, set operational parameters conservatively. Choose a laser fluence well below the damage threshold of your precision optical glass. For pulsed lasers, limit peak power by adjusting pulse duration and repetition rate; for CW systems, ensure beam diameter on the optic is large enough to keep irradiance low. Monitor real-time transmission values and compare against the baseline you recorded during commissioning. If transmission drops gradually, schedule an inspection—do not simply increase power to compensate. Avoid tight focusing inside the bulk material; this can cause filamentation or self-focusing, particularly in high-index glasses. When working with AR coated optical windows, stay within the coating’s specified angle of incidence range—off-angle use can shift the coating’s performance and increase reflection-induced heating.

Routine Maintenance Schedule and Common Wear Parts

Adopt a tiered maintenance schedule. Weekly: inspect all accessible surfaces for dust, fingerprints, or coating discoloration using a bright flashlight at an oblique angle. Monthly: remove and closely examine protective windows, beam dumps, and O-rings for thermal degradation or particulate buildup. Replace O-rings at least annually, or sooner if they show cracking or permanent set. High-fluence beam dumps should be swapped when the absorptive surface appears glossy or pitted. Quarterly: verify mounting hardware torque (use a calibrated torque driver) and re-check system alignment. Common wear parts include sacrificial protective windows, silicone or Viton O-rings, and water-cooled housings (if used). Keep a log of hours-on-component; for fused silica windows in a 24/7 production environment, plan replacement every 12–18 months, or immediately if laser damage is suspected.

Troubleshooting: 3–5 Common Problems and Likely Causes/Fixes

1. Gradual reduction in transmitted power – Likely caused by surface contamination or a loose coating defect. Clean the component using the approved method. If the problem persists, inspect for bulk absorption at the laser wavelength; some glasses can solarise and require replacement with a purer material like fused silica. 2. Sudden appearance of hotspots or ghost beams – Indicates a shifted mount or a stray reflection. Immediately reduce power, then inspect all optical mounts for mechanical drift. Verify that beam dumps are correctly positioned and that their surfaces are not reflective. 3. Visible pits, cracks, or burnt-looking spots on the surface – These are signs of laser‑induced damage, typically from exceeding the damage threshold or from particulate‑assisted breakdown. Isolate the component, and if the damage is minor, professional optical glass polishing may restore the surface, though coating re‑application will likely be needed. In most cases, replacement is the safest option. 4. Thermal lensing (beam divergence changes with warm‑up) – Caused by absorption in the bulk or coating, leading to a temperature gradient. Improve cooling around the optic, reduce incident power, or switch to a substrate with lower absorption at the operating wavelength. 5. Intermittent fluctuations in transmitted power – Often due to a loose connector or a drifting laser source. Confirm that all electrical and fiber connections are secure, and check the laser’s own power monitor. If the optic is water‑cooled, inspect for flow interruptions or coolant contamination.
