Glass Wafer Structuring Quality Control for Precision Substrates

Under the controlled light of a Class 100 cleanroom, a technician positions a 200 mm borosilicate glass wafer onto an interferometer stage. The interferogram that flashes onto the monitor will determine whether this wafer meets the flatness specification for a high-density semiconductor package. For procurement teams and engineers sourcing thin glass wafers, that moment encapsulates the critical role of quality control—ensuring every structured substrate performs reliably in its final device application.

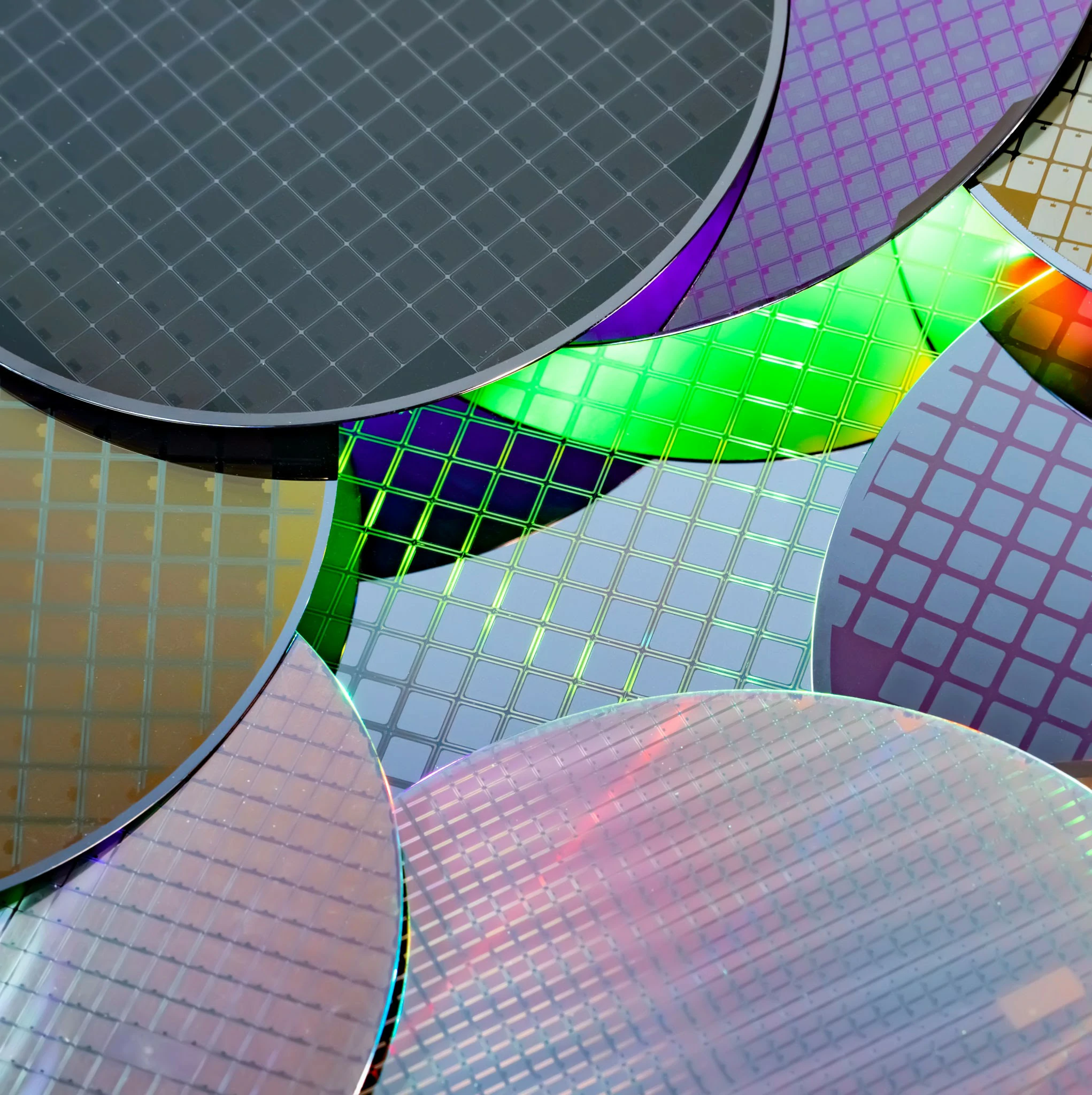

Our Glass Wafer Structuring Quality Framework

Every structured glass wafer delivered for precision device substrates undergoes a rigorous, multi-stage quality control process designed to confirm geometric accuracy, surface purity, and structural integrity. Our QC protocol integrates incoming material verification, in-process monitoring, final optical and dimensional inspection, and full traceability documentation. This framework supports applications ranging from MEMS carrier wafers to advanced packaging interposers, aligning with the most demanding glass wafer structuring requirements.

Key Quality Control Measures at a Glance

• Certified quality management system (ISO 9001)
• Incoming raw glass inspection for inclusions, bubbles, and CTE
• In-process TTV, bow, warp, and flatness measurement on NIST-traceable metrology tools
• Final AQL sampling per ISO 2859-1 with surface quality to 60-40 scratch-dig or better
• Lot-level traceability from ingot to shipment with full inspection documentation

Certified Quality Management System

Our manufacturing facility operates under an ISO 9001-certified quality management system. While additional certifications such as ISO 13485 for medical devices can be supported through qualified partners, our core processes are designed to meet the exacting demands of semiconductor, optoelectronic, and MEMS sectors. All materials comply with RoHS and REACH directives, and we maintain a documented change-management procedure that ensures no alteration in process or material occurs without customer notification.

Incoming Material Inspection

Every lot of raw glass—whether borosilicate (e.g., Borofloat 33), fused silica, or quartz—is inspected upon arrival. Technicians check for bulk defects like inclusions, striae, and bubbles using optical microscopy and laser scanning systems. Coefficient of thermal expansion (CTE) coupons are verified against supplier certificates, and surface quality samples are evaluated under the same metrology protocols used for finished wafers. For coating materials used in anti-reflective or conductive layers, adhesion peel tests and spectral consistency checks are performed. For applications requiring exceptional thermal stability, we also leverage our expertise in Custom Ultra-Thin Quartz Glass Disc processing to ensure laminar flow and minimal defect density.

In-Process Inspection and Controls

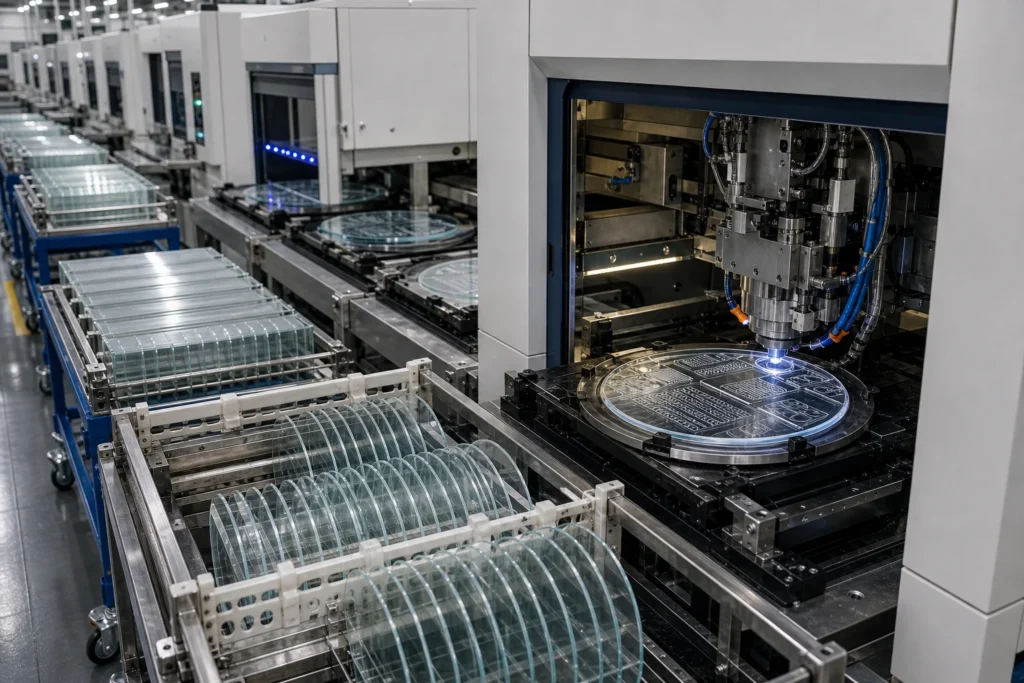

During glass wafer processing, dimensional stability is paramount. Our in-process metrology stations are embedded directly within the manufacturing line to capture real-time data without interrupting throughput. Key parameters include:

• Thickness and TTV (Total Thickness Variation) – Measured via non-contact capacitance gauges or spectral reflectometry, with acceptable tolerances typically defined by the end application (often ≤ 2 µm for a 200 mm wafer).
• Bow and Warp – Assessed using optical interferometry against a reference flat. Wafer bow is generally constrained to less than 40 µm for a standard 725 µm thick substrate, with tighter limits available for ultra-thin wafers.
• Edge Quality – Edge chipping and bevel radius are inspected using automated optical edge scanners. Micro-roughness of the edge is controlled to prevent particle generation during handling.
• Pattern Integrity – For structured wafers with features such as through-glass vias (TGVs) or alignment marks, in-line optical microscopy checks pattern fidelity, critical dimensions, and overlay registration.

Control charts and SPC (statistical process control) are applied to key dimensions, with out-of-tolerance trends triggering immediate tool adjustment.

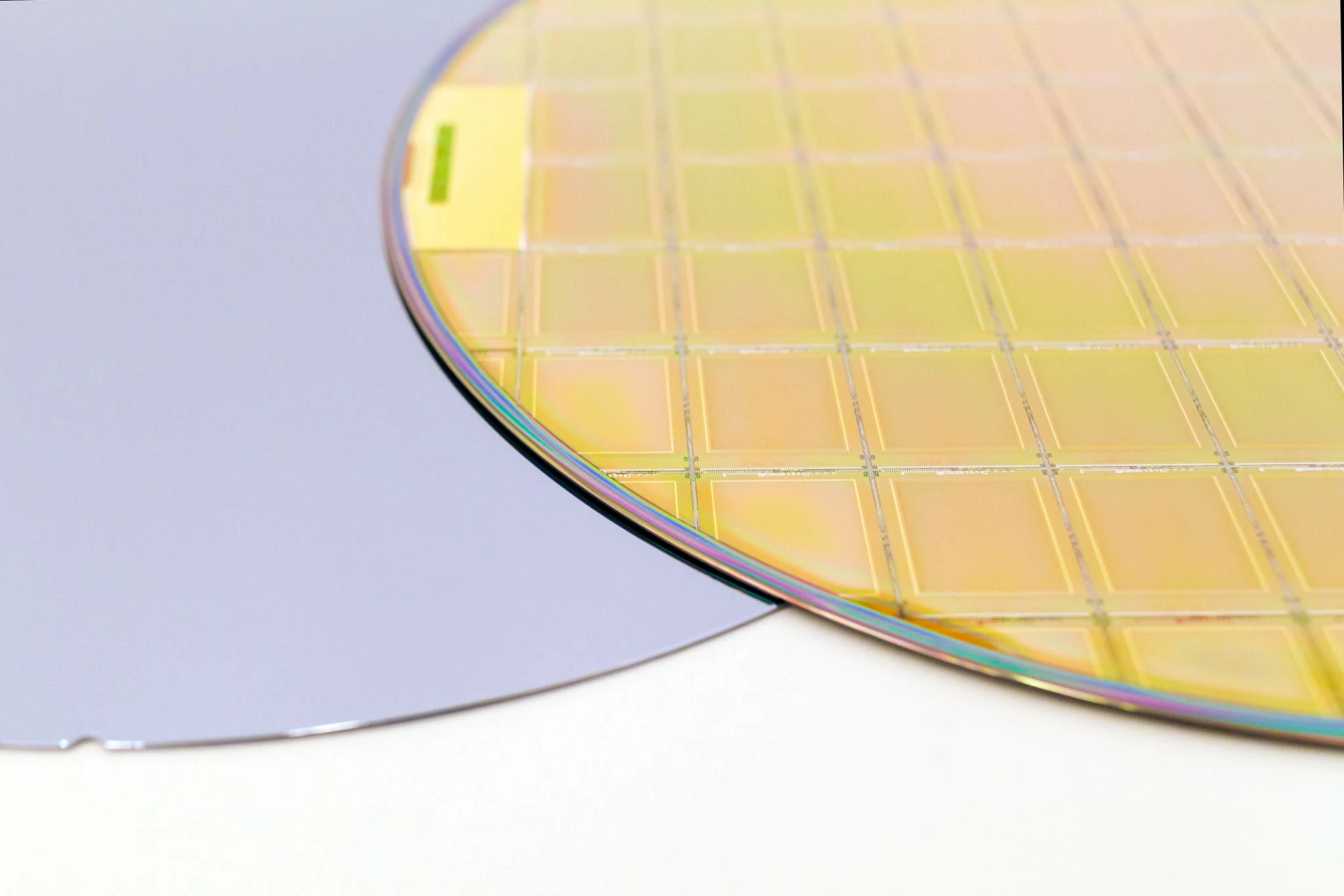

Final Inspection and Pre-Shipment Checks

Before packaging, every batch of thin glass wafers passes through a final quality gate that combines visual, optical, and cleanliness assessments. Surface quality is graded according to MIL-PRF-13830 scratch-dig standards (commonly 60-40 or 40-20 depending on specification) using visual comparison standards under controlled illumination. For wafers requiring optical transmission, a spectrophotometer scans the relevant wavelength range (UV, VIS, NIR) and records transmission or reflectance data. Dimensional verification is performed on a sample basis following AQL sampling plans per ISO 2859-1; critical dimensions may receive 100% inspection if agreed.

Cleanroom cleanliness is verified via optical particle counters, and wafers are packaged in certified cleanroom-compatible containers with nitrogen purge options for moisture-sensitive layers. Final lot inspection includes a review of all in-process data, and any non-conformance is resolved before release.

Metrology, Documentation, and Traceability

Our metrology suite includes white-light interferometers, laser scanning profilometers, automated CMMs, and spectrophotometers, all calibrated to NIST or equivalent national standards. Measurement recipes are locked and controlled, and gauge R&R studies are periodically conducted to ensure repeatability.

Every wafer lot is assigned a unique identification number that links back to the raw glass ingot, process history, and inspection records. A complete data package—typically comprising a certificate of conformance, dimensional reports, surface quality summaries, and spectral traces—is shipped with each order. This document set supports customer incoming inspection and source acceptance needs. We also accommodate third-party inspection by arrangement, including on-site visits and witness testing by agencies such as SGS or TÜV.

To request batch-specific inspection documentation or discuss custom QC protocols for your glass wafer structuring project, contact our engineering team with your specifications.
