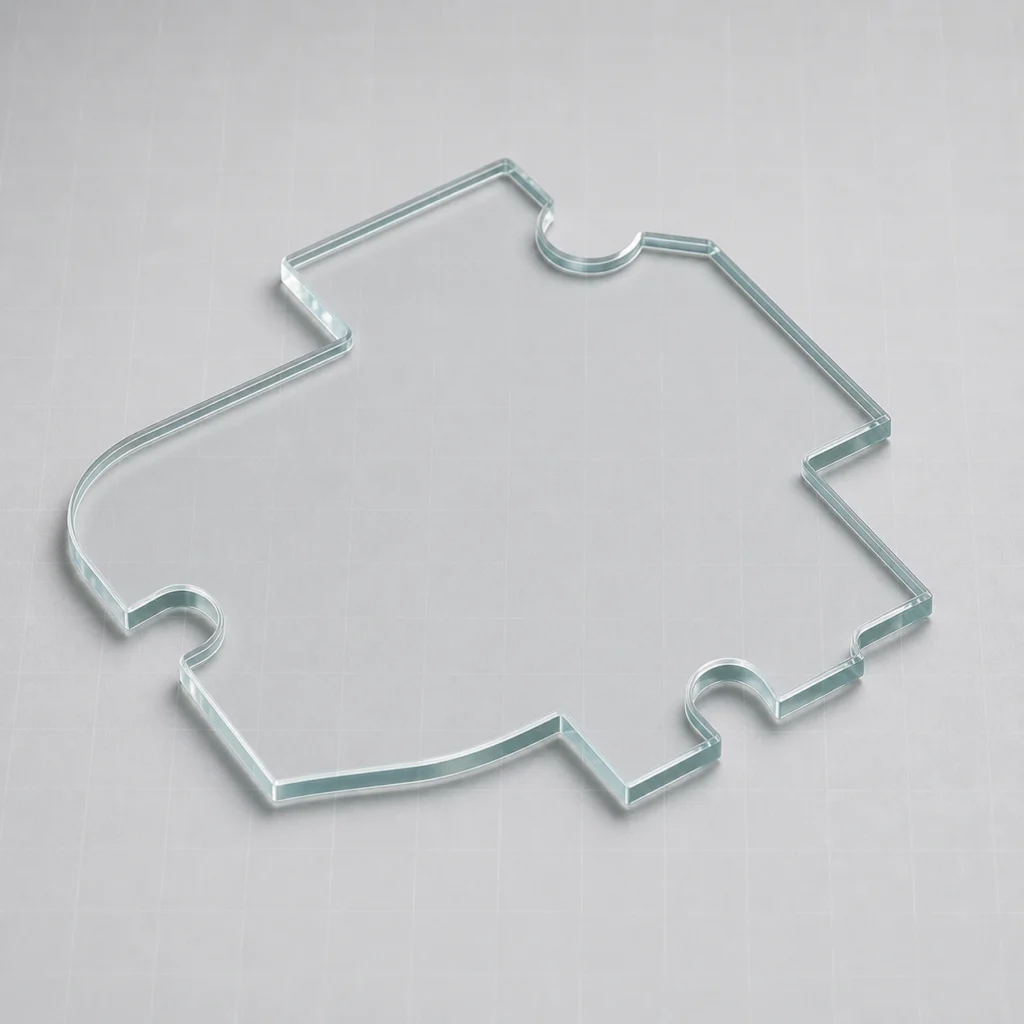

CNC Glass Grinding Process for Tight Tolerance Parts

Key Takeaways

• CNC grinding with diamond tooling achieves dimensional tolerances as tight as ±0.01 mm for precision glass parts.
• Material selection—fused silica, borosilicate, soda-lime—directly impacts grindability and final application.
• In-line quality checkpoints verify flatness, surface roughness, and transmission throughout production.
• Scalable processes enable consistent batch-to-batch repeatability for volume orders.

Precision CNC Glass Grinding for Tight Tolerances

Procurement teams sourcing glass components with micron-level tolerances turn to CNC grinding because it combines programmable precision with diamond tooling to remove material exactly where needed. A multi-axis CNC grinding center can hold tight dimensional control across thousands of parts, making it the backbone for producing optical windows, semiconductor wafer carriers, microfluidic chips, and other high-specification glass parts. The process transforms raw glass sheets or blanks into finished components through a sequence of controlled material-removal stages, each one refining geometry and surface quality.

Key Facts About CNC Glass Grinding

• Materials: Fused silica, borosilicate, soda-lime, optical glass, and sapphire are routinely ground to tight tolerances.
• Tolerances: Typical dimensional tolerances achievable are ±0.01 mm or better, with surface roughness down to Ra < 0.01 µm after polishing.
• Process control: Multi-axis CNC machines, diamond tooling, and real-time metrology ensure repeatability.
• Scalability: Automated loading and multi-spindle grinders support medium to high-volume production.
• Quality: In-line checks for flatness, scratch-dig, and transmission confirm that every batch meets the drawing.

Base Glass Materials for Precision Grinding

The starting material determines the grinding strategy and the attainable tolerance. Fused Silica JGS1 offers excellent UV transmission and low thermal expansion, making it ideal for optics and semiconductor fixtures. Borofloat 33 provides outstanding chemical resistance and is frequently specified for microfluidics and biomedical chips. Soda-Lime glass, common in display and architectural applications, grinds predictably but requires careful stress management. Optical glasses such as BK7 and high-index flints allow precision lens pre-forms. Sapphire, though harder, can be CNC-ground with specialized diamond wheels and slower feed rates. Each material’s hardness, brittleness, and thermal stability influence wheel selection, coolant type, and feed parameters across every subsequent stage.

Step-by-Step CNC Glass Grinding Process

Cutting and Scribing

Large sheets are first cut to near-net shape using CNC scribing with a diamond stylus or waterjet cutting for thicker plates. This roughing step minimizes material waste and sets the workpiece geometry for downstream grinding.

CNC Grinding (Rough and Fine)

The core tight-tolerance stage uses a multi-axis CNC grinder equipped with metal-bond or resin-bond diamond wheels. Rough grinding removes the bulk of the excess material, while fine grinding brings dimensions close to the final specification. Machine control adjusts spindle speed, feed rate, and wheel pressure in real time based on the material and the required geometry. Coolant delivery is essential to prevent thermal shock and subsurface damage.

Lapping

For components demanding extreme flatness and parallelism—such as optical flats or wafer substrates—lapping follows grinding. The workpiece is pressed against a cast-iron or composite lap plate with an abrasive slurry. Double-side lapping processes both sides simultaneously, ensuring uniform thickness and flatness down to a few light bands.

Polishing

Polishing removes the last micron of material to achieve optical-grade surface quality. Using polyurethane or pitch pads with cerium oxide or colloidal silica slurries, the process reduces surface roughness to Ra < 0.01 µm and eliminates subsurface damage. CNC polishers can follow programmed paths to create aspheric or freeform surfaces when needed.

Edging and Beveling

After polishing, the edges are ground to final diameter and chamfered. CNC edging centers hold the piece on a vacuum chuck and use a cup wheel to produce smooth, chip-free edges with tight roundness tolerance. Bevels protect edges from chipping during handling and assembly.

Drilling and CNC Contouring

Where designs require through-holes, slots, or complex contours, CNC drilling and milling with diamond core drills or end mills are integrated into the workflow. Ultrasonic-assisted machining can reduce edge chipping on brittle materials like fused silica or sapphire.

Coating (Optional)

Many precision glass parts require functional coatings—anti-reflective, conductive (ITO/FTO), or protective. These are applied after the grinding stages, typically by magnetron sputtering or ion-beam deposition in a cleanroom environment to avoid particulate contamination.

Tempering and Chemical Strengthening (Optional)

For components needing enhanced mechanical strength, thermal tempering (heating followed by rapid cooling) or chemical strengthening (ion exchange in a molten salt bath) is applied. The process sequence matters: strengthening must occur after all grinding to avoid releasing induced stress.

Final Cleaning and Inspection

Multi-stage ultrasonic cleaning with deionized water and optical-grade detergents removes all residue and particles. The components then undergo final optical and dimensional inspection before packaging in cleanroom-compatible containers.

Key Equipment and Quality-Driven Techniques

The CNC grinding centers used for tight-tolerance glass are typically 3- to 5-axis machines with glass-specific tooling, active tool management, and high-pressure coolant systems. Double-side lapping and polishing machines are critical for achieving sub-micron parallelism on wafers and optical flats. For coatings, magnetron sputtering systems deposit uniform thin films with precise thickness control. All equipment operates in controlled environments; cleanroom classifications (ISO 7 or better) are standard for optical and semiconductor-grade components. These techniques ensure that every process variable is tightly controlled, directly affecting the repeatability and yield of the final parts.

In-Line Quality Checkpoints During Production

Quality is verified at every stage, not just at the end. After grinding, a coordinate measuring machine (CMM) or laser interferometer checks critical dimensions and flatness. Surface roughness is measured with a stylus profilometer or white-light interferometer. Scratch-dig inspection follows the polishing stage, with 10-5 or 20-10 being typical specifications for precision optics. For coated parts, spectrophotometers measure transmission from UV to IR to confirm coating performance. Statistical process control (SPC) tracks dimensional trends across batches, triggering tool changes or adjustments before tolerances drift.

Scalability and Consistency for Volume Orders

For procurement teams, the ability to scale from prototype runs to volume production without compromising tolerances is critical. CNC glass grinding operations achieve this through multi-spindle grinders that process multiple workpieces simultaneously, automated robotic loading that reduces handling variation, and centralized recipe management that ensures the same parameters are used for every batch. Production cells are often organized in linear or U-shaped layouts to optimize flow. A well-documented process, combined with SPC and regular equipment calibration, provides the traceability and consistency that industrial and medical device OEMs require. Regular audits to ISO 9001 standards further validate process robustness.
