BF33 Glass for Microfluidic Chips: Properties, Coatings & Selection Guide

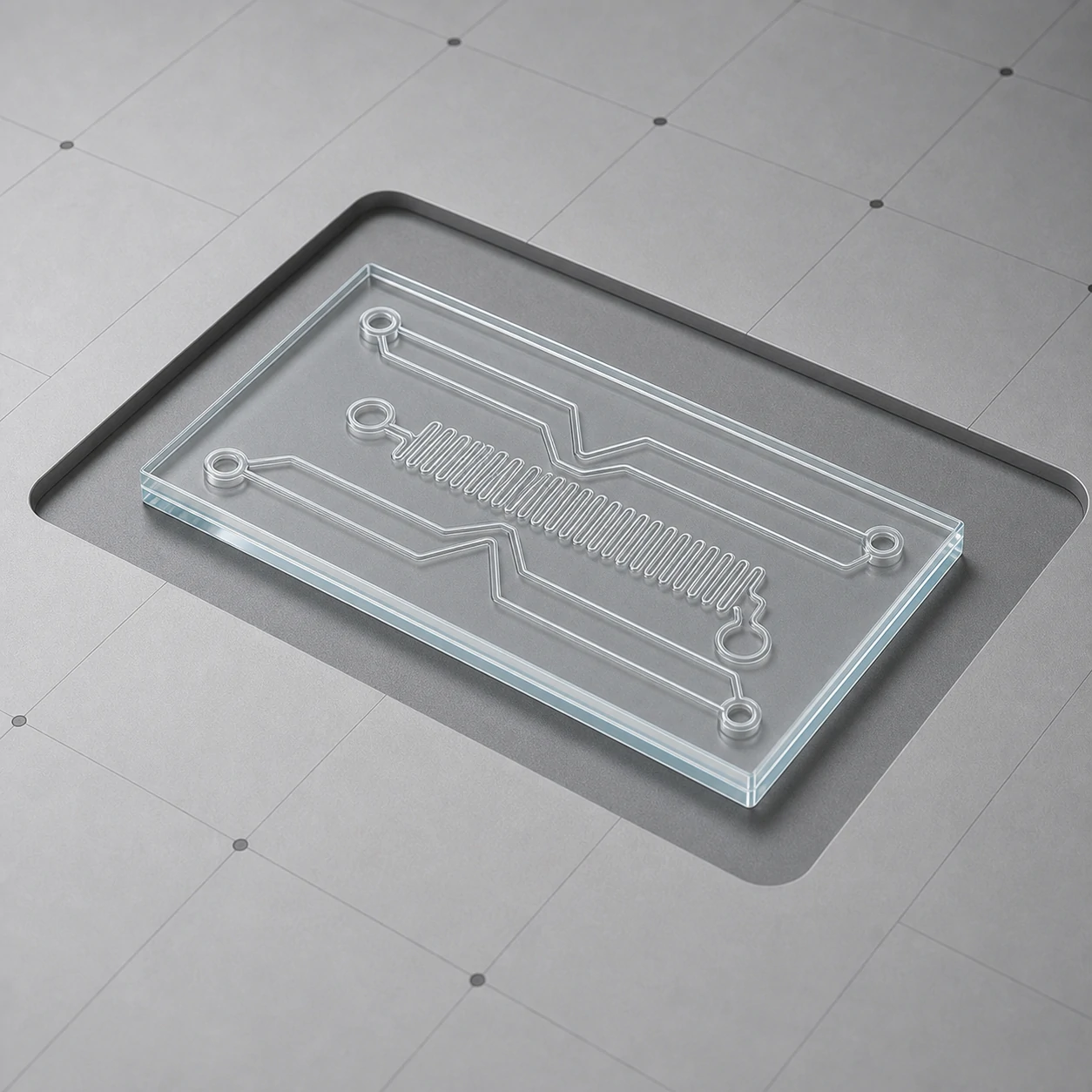

Why the Right Glass Material and Coating Decision Prevents Performance Failures

If you’re experiencing inconsistent anodic bonding, unexpected reagent attack, or poor fluorescence signal in your microfluidic chips, the root cause often traces back to substrate selection. In high-precision lab-on-a-chip and MEMS applications, the glass substrate must balance optical clarity, chemical inertness, thermal stability, and compatibility with downstream processes. Coatings further tailor the surface for droplet formation, electrokinetic control, or anti-fouling. Making an informed choice early avoids costly redesigns and ensures repeatable device performance.

Standard Glass Material Options for Microfluidic Substrates

Microfluidic chip manufacturers typically work with a shortlist of proven glass types. Each option brings distinct advantages and limitations:

• Fused silica: ultra‑high purity with exceptional UV transmission and near‑zero autofluorescence. Ideal for fluorescence microscopy and high‑temperature bonding, but carries a higher material cost.
• Borosilicate (BF33 / Borofloat® 33): a widely used workhorse. Low thermal expansion (~3.25 × 10⁻⁶ /K), excellent chemical durability, and good optical transparency from the visible into the near‑IR. Anodic bonding compatibility with silicon makes it a top choice for MEMS and integrated sensors.
• Soda‑lime glass: the most economical option. Adequate for low‑cost disposable devices but limited chemical resistance and higher thermal expansion restrict its use in demanding thermal cycling or harsh reagent environments.
• Aluminosilicate glass: enhanced mechanical strength and scratch resistance. Often used where higher pressure tolerance is needed, though it requires higher bonding temperatures and is more expensive than borosilicate.
• Sapphire: extreme hardness, broad optical transmission (UV to mid‑IR), and outstanding chemical inertness. Its high cost and difficult micromachining reserve it for specialized high‑pressure or abrasive fluidic applications.
• Optical glass (e.g., N‑BK7): designed for high transmission in the visible spectrum. Useful when integrated optics are embedded, but its lower chemical durability and higher thermal expansion may limit microfluidic use without protective coatings.

Properties and Trade-offs of Each Glass Type

Choosing a glass is an exercise in ranking priorities. Fused silica delivers the widest transmission window (down to ~190 nm) and the lowest autofluorescence, yet it is the most costly and requires aggressive etchants for channel formation. BF33 borosilicate strikes a compelling balance: its transmission stays above 90% from 350 nm to 2 µm, it resists most acids and bases, and its thermal expansion closely matches silicon, simplifying anodic bonding. Soda‑lime glass saves money but absorbs below 350 nm and weathers poorly in alkaline solutions. Aluminosilicate offers 20–30% higher fracture toughness than borosilicate, making it attractive for high‑pressure liquid chromatography on chip, although its higher annealing point demands tighter process control. Sapphire’s Vickers hardness (~2000 HV) virtually eliminates wear but drives up micromachining costs and lead times. Optical glass can provide near‑perfect visible transmission but often lacks the broad chemical inertness needed for biochemical assays. Each material’s coefficient of thermal expansion (CTE) also dictates which bonding technique is feasible; a large CTE mismatch can cause delamination during thermal bonding or temperature cycling.

Coating and Surface-Treatment Options and Their Trade-offs

Beyond the bulk material, surface modifications extend functionality:

• Anti‑reflective (AR) coatings: minimize reflection losses at key wavelengths, improving fluorescence detection sensitivity. Single‑layer MgF₂ or multi‑layer dielectric stacks are common, but they add a processing step and cost.
• Mirror coatings: metallic (aluminum, gold) or dielectric high‑reflectivity films turn a glass region into an on‑chip mirror for optical routing, though they may limit viewable area for microscopy.
• ITO (indium tin oxide): a transparent conductive layer enabling electrokinetic pumping, dielectrophoresis, or electrochemical sensing. ITO thickness must be balanced: too thin raises resistance, too thick reduces transmission.
• Hydrophobic treatments: fluorosilane self‑assembled monolayers or parylene‑C films create defined wetting patterns for digital microfluidics. Such layers can degrade over repeated cycling and may require periodic re‑coating.
• Thermal tempering: increases mechanical strength and thermal shock resistance by introducing compressive surface stress. However, uncontrolled tempering can warp thin wafers, affecting channel planarity.
• Chemical strengthening: ion‑exchange (e.g., potassium for sodium in soda‑lime) hardens the surface without the distortion risk of tempering, but the strengthened layer is shallow (typically <100 µm) and may not protect deeper channel walls.

Matching the Right Material and Coating to Your Application Needs

How do you decide? Start with the operational environment. For PCR‑on‑a‑chip with thermal cycling between 60 °C and 95 °C, low‑CTE choices like BF33 or fused silica prevent debonding. If the device must capture UV fluorescence (e.g., DNA separation), fused silica’s 190‑nm edge is essential. When building a cell‑culture platform with long‑term reagent exposure, BF33’s chemical durability plus an optional hydrophobic coating to control surface wetting often works well. For disposable point‑of‑care cartridges, soda‑lime with no coating keeps unit cost low. Electrokinetic devices benefit from an ITO‑coated borosilicate substrate to integrate driving electrodes directly on‑chip.

Compliance considerations are also important. In general, standard borosilicate, fused silica, and aluminosilicate substrates comply with RoHS (Restriction of Hazardous Substances) and REACH regulations as they are inorganic glasses and do not intentionally contain restricted substances. However, when coatings or strengthening treatments are added, you should verify with the supplier that the entire assembled component meets the relevant directives for your market region.

If you’re unsure which glass material and coating will deliver the best balance of optical performance, chemical resistance, and cost for your microfluidic chip design, ask a specialist to evaluate your specific process parameters and recommend the optimal substrate.

How to Select BF33 Glass and Coatings for Microfluidic Devices

BF33 borosilicate glass becomes the substrate of choice for microfluidic engineers when optical transparency, thermal resilience, and chemical inertness are non-negotiable. The decision flow typically starts with channel depth and aspect ratio requirements, then moves to surface chemistry and bonding method. For example, if electrokinetic pumping is required, an ITO conductive layer may be integrated on the glass surface, as seen in ITO-coated glass substrates.

Customization Capabilities and Tolerances

Manufacturers offer extensive customization of BF33 microfluidic chips to match exact design specifications. Key attributes include:

• Substrate thickness: Standard wafers are available in 0.5 mm, 0.7 mm, and 1.1 mm thicknesses; custom thicknesses can be achieved through precision lapping and polishing.
• Channel dimensions: Microchannel widths as narrow as 10 µm and depths from a few micrometers to hundreds of micrometers, with typical aspect ratios up to 1:2 for wet etching.
• Surface quality: Polished surfaces routinely achieve scratch-dig 20-10 and surface roughness Ra < 1 nm, essential for optical imaging and bonding.
• Edge quality: Ground or polished edges, with edge chips controlled per customer specification.
• Tolerances: Substrate thickness tolerance of ±0.05 mm standard, down to ±0.01 mm upon request; channel dimensional tolerances are process-dependent but typically held within ±10% of design.

Quality Certifications and Standards

Reputable suppliers fabricate BF33 microfluidic devices in ISO 9001 certified facilities, often within ISO Class 5 (Class 100) cleanrooms. Materials comply with RoHS and REACH regulations. Certificates of conformance and lot traceability are provided with each batch.

Key Facts: BF33 Borosilicate Glass for Microfluidics

• BF33 is a borosilicate glass with a coefficient of thermal expansion (CTE) of approximately 3.25 × 10⁻⁶/K, enabling reliable anodic bonding to silicon wafers.
• It transmits over 90% of visible light, making it suitable for fluorescence and absorption-based detection in microfluidic assays.
• The glass withstands thermal shock up to 500°C and resists attack from most acids, solvents, and biological reagents.
• Microchannels can be fabricated by wet etching (isotropic) or dry etching (anisotropic), with laser micromachining and powder blasting available for rapid prototyping.
• Common wafer sizes include 4-inch, 6-inch, and 8-inch diameters; square or rectangular substrates can be custom-cut.

Lead Times, MOQ, and Prototyping Services

Typical lead times for custom BF33 microfluidic chips vary from a few weeks for initial prototypes to longer for production volumes, depending on design complexity and coating requirements. Minimum order quantities (MOQ) are flexible: many manufacturers offer low-volume prototyping with single-digit piece counts, while mass production orders are scaled accordingly. To reduce lead time, providing complete CAD files and specifying all material and coating requirements upfront is essential. Consulting a manufacturer’s design rules for glass microfluidic channels early in the design phase helps avoid iterations.

Summary of BF33 Microfluidic Chip Attributes
