LED Cover Glass Material Guide for Optical Encapsulation

Why Glass Material Choice Matters for LED Encapsulation

When you source cover glass for LED optical encapsulation, the material determines light output, thermal reliability, and bond integrity with the encapsulant. Choosing the right glass means balancing transmission, durability, and cost for your specific package design.

Common Cover Glass Materials for LED Packages

Precision glass manufacturers offer several materials suitable for LED encapsulation covers:

• Fused Silica: High-purity synthetic quartz for UV‒IR transmission.
• Borosilicate Glass: Thermal-shock-resistant glass with good visible-light transmission.
• Soda-Lime Glass: Inexpensive float glass for cost-sensitive visible-light applications.
• Aluminosilicate Glass: Chemically strengthenable glass for thin, durable covers.
• Sapphire: Single-crystal aluminum oxide with extreme hardness and wideband transmission.
• Optical Glass (e.g., N-BK7): Engineered for precise refractive index control when the cover doubles as a lens.

Properties and Trade-offs of Each Material

Fused Silica transmits over 90% from 185 nm to 2.5 µm, has an exceptionally low coefficient of thermal expansion (CTE), and withstands high-intensity UV without solarization. The offset is higher material and machining cost.

Borosilicate Glass offers good visible and near-IR transmission, a CTE of about 3.3 × 10⁻⁶ /K, and better thermal shock resistance than soda-lime, at a moderate cost. It does not transmit deep UV.

Soda-Lime Glass is the most economical, with 85–90% visible transmission, but absorbs UV and has a high CTE (~9 × 10⁻⁶ /K), limiting its use in high-temperature processes.

Aluminosilicate Glass can be chemically strengthened for impact resistance, has low CTE, and excellent visible transmission, making it suitable for thin, durable covers in display or automotive applications.

Sapphire spans 150 nm to 5.5 µm with a CTE around 5.3 × 10⁻⁶ /K and Mohs 9 hardness, but its cost and machining challenges restrict it to high-reliability needs.

Optical Glass provides tight index control for designs where the cover acts as a lens, though thermal resistance is lower than fused silica or borosilicate.

Coating and Surface-Treatment Options

Uncoated glass reflects about 4% per surface. Applying optical coatings can dramatically improve performance, but each option involves trade-offs:

• Anti-Reflective (AR) Coatings: Single- or multi-layer AR coatings raise transmission above 99% at target wavelengths but may reduce surface energy, potentially affecting encapsulant adhesion unless a primer is used.
• ITO (Indium Tin Oxide) Coatings: A transparent conductive layer for ESD protection or heating; adds slight transmission loss (typically 80–90%) and cost.
• Hydrophobic/Oleophobic Coatings: Anti-smudge layers that keep the surface clean in outdoor or touch-enabled applications, though they can complicate secondary bonding.
• Thermal Tempering: Increases impact and thermal shock resistance but may introduce optical wavefront distortion, so it is avoided for precision optics.
• Chemical Strengthening: Ion exchange (especially for aluminosilicate) creates a deep compressive layer without distortion, ideal for thin, rugged covers.

Matching Material and Coating to Your Application

Selecting the right combination depends on your LED package’s operating conditions:

• High-Power UV LEDs: UV-grade fused silica with a UV-optimized AR coating ensures maximum transmission and long-term stability.
• General Illumination: Borosilicate or soda-lime glass with a visible AR coating offers a cost-effective path to high lumen output.
• Automotive or Outdoor: Chemically strengthened aluminosilicate with a hydrophobic topcoat withstands thermal cycling, vibration, and moisture.
• MicroLED Displays: Ultra-thin aluminosilicate with high optical uniformity supports precise pixel alignment.

All standard glass materials and coatings are RoHS and REACH compliant, meeting international environmental requirements for electronic components. For additional certifications (e.g., UL, FDA), inform us during specification.

Get a Material Recommendation

Choosing the optimal cover glass for your LED encapsulation project involves multiple trade-offs. Send us your operating wavelength range, target transmission, thermal profile, and mechanical constraints. Our engineers will respond with a concise material and coating recommendation matched to your production needs.

Custom LED Cover Glass Manufacturing Capabilities

We fabricate LED cover glass components to precise dimensional and optical specifications, supporting custom shapes, sizes, and surface finishes for high-efficiency optical encapsulation. Our in-house CNC machining, lapping, and polishing lines allow us to deliver custom LED package glass cover plates with consistent flatness and surface quality. Whether you require ultra-thin sheets for microLED arrays or robust, chemically strengthened windows for outdoor luminaires, we tailor every parameter—from edge beveling to surface roughness—to your design.

Capabilities extend to precision edge grinding, drilling, and slotting, accommodating complex geometries without introducing micro-cracks. Chemical strengthening and thermal tempering processes are available for aluminosilicate and soda-lime glasses, boosting impact resistance and thermal shock tolerance. All fabrication steps are carried out in cleanroom environments to prevent particulate contamination that could degrade encapsulation performance.

Key Facts for LED Cover Glass

• Available glass types include fused silica, borosilicate, aluminosilicate, soda-lime, and sapphire.

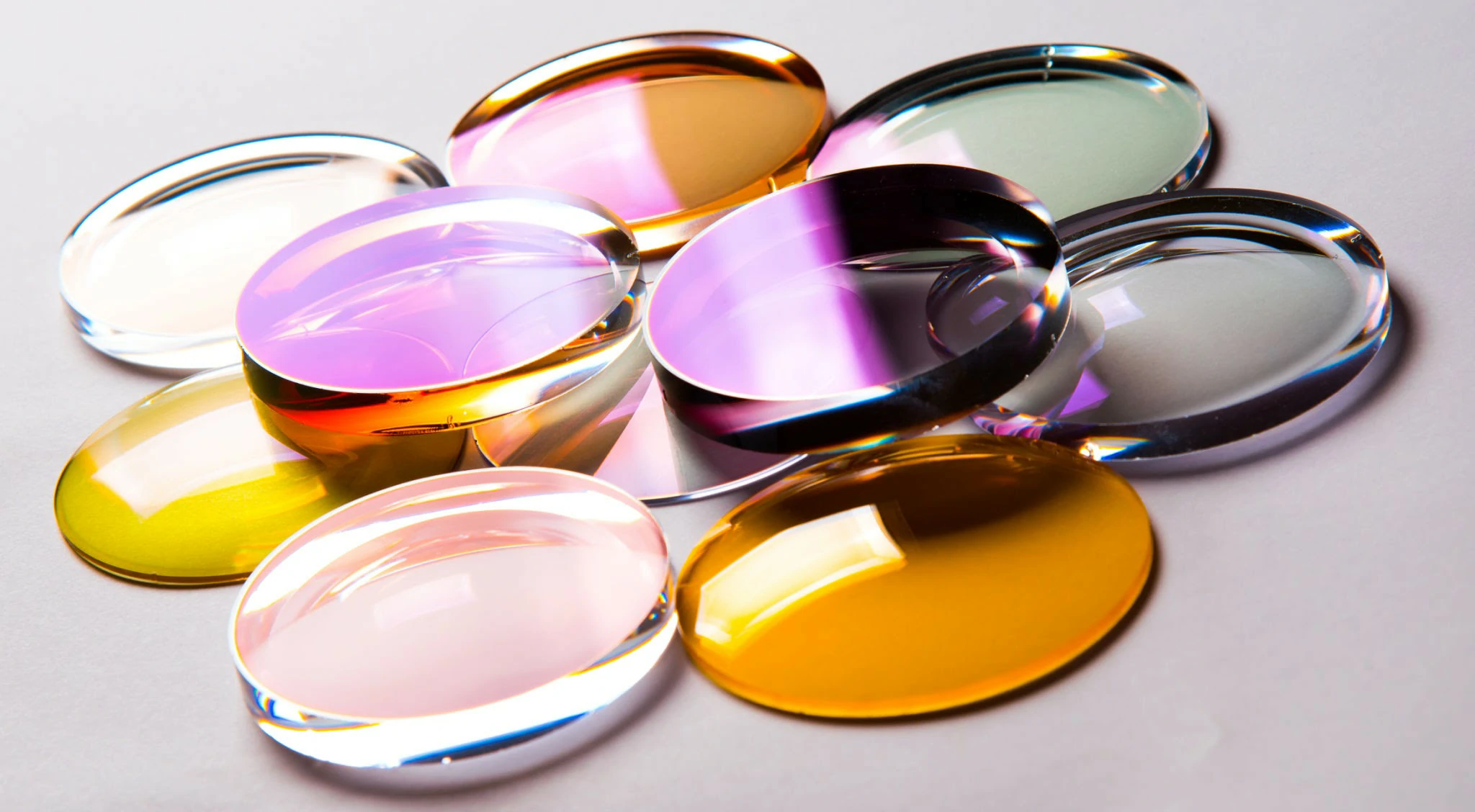

• AR, hydrophobic, and ITO coatings can be applied, including our AR-Coated High-Transparency Optical Glass options.
• Thicknesses typically range from 0.1 mm to several millimeters, depending on material and application.
• Surface quality and flatness are controlled to optical-grade standards (e.g., scratch-dig per MIL-PRF-13830B).
• Both prototype and production quantities are supported, with minimal order quantities tailored to the specific design.
• All standard materials and coatings are RoHS and REACH compliant.

Quality Assurance and Inspection

Every LED cover glass batch undergoes rigorous optical and dimensional inspection. Surface quality is verified using interferometry and visual scratch-dig assessment against established standards. Transmission and reflection spectra are measured via spectrophotometry across the specified wavelength range to confirm coating performance and substrate homogeneity. Dimensional conformance—thickness, flatness, parallelism, and edge finishing—is checked with coordinate measuring machines and optical profilers.

For applications demanding high reliability, we can provide documentation such as certificates of conformity and traceability reports. Our quality system ensures that parts consistently meet the tight tolerances required for optical encapsulation, minimizing light loss and ensuring long-term seal integrity.

Supply Chain and Lead Times

We understand that B2B procurement requires predictable delivery. Lead times scale with order complexity and volume; a standard pilot batch can be expedited, while production quantities align with mutually agreed-upon schedules. Minimum order quantities are design-dependent—we routinely support both small-batch R&D builds and high-volume manufacturing. Finished components are shipped in clean, anti-static packaging designed to protect the glass surfaces during transit, with export documentation included for international buyers.

For overseas clients, we manage customs clearances efficiently and offer flexible shipping terms. Early supplier involvement is encouraged to streamline material selection and design for manufacturability before tooling commitments.

Material and Parameter Consolidation

The table below summarizes the key material options, physical attributes, and application guidance covered throughout this guide, along with our manufacturing scope.

Request a Quote or Send Your Drawings

For a specific material and coating recommendation tailored to your LED encapsulation project, contact our engineering team with your requirements. Provide your operating wavelength range, target transmission, thermal profile, and mechanical constraints. We will respond with a concise material and coating proposal matched to your production needs.
