Application: Digitizer.
Overview

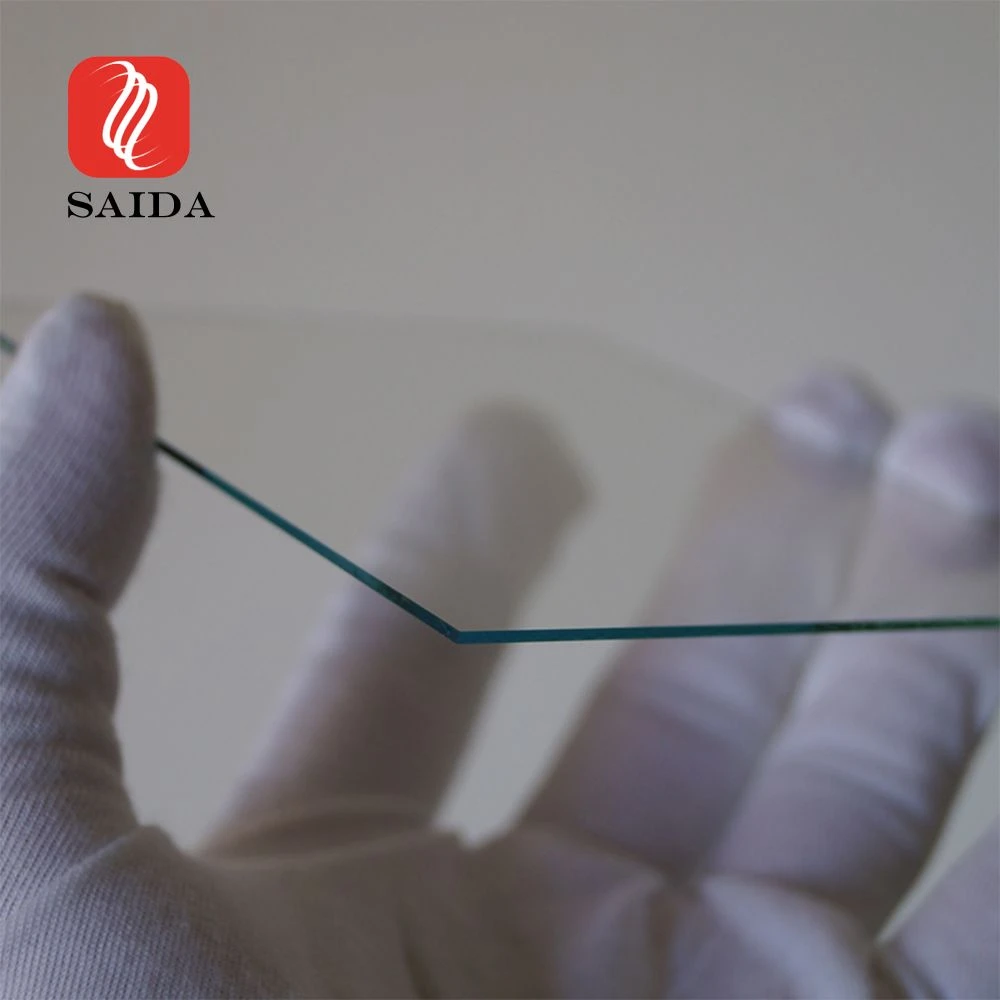

0.4mm-4mm Customized ITO/Fto Conductive Glass with Bus Bars is a patterned conductive glass. Listed geometry: curve shape. Flatness Conforming Article. Listed for Electronics & Instruments applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Curve |
|---|---|
| Flatness | Conforming Article |
| Application | Electronics & Instruments |
| Usage | Digitizer |
| Appearance | Bent Tempered |
| Standard | GB/T9963 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | 0.5mm |
| Fragment State | I |
| Technics | Chemical Tempered |
| Avaialbe Size | 0.33mm, 0.55mm, 0.7mm, 1.1mm, 1.5mm, 2.0mm, |
| Avaialble Coating | Ar/Af/AG/ITO Coating |
| Printing Technology | Silk Printing |
| Quality Standard | En60598, En12150, etc. |
| Color | Customized |
| Mqo | Sample Order Accepted |
| Product picture | What is Conductive Glass? |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Item | Standard | Result | A/R | |
| 'Length | 406.4 ±0.2 mm | 406.42 | 406.4 | A |
| 'Width | 355.6 ± 0.2 mm | 355.60 | 355.6 | A |
| 'Thickness | 1.1 ±0.05 mm | 1.110 | 1.115 | A |
| 'Squareness | ≤0.1% | 0.02 | 0.02 | A |
| 'Warp | ≤0.1% | 0.02 | 0.02 | A |
| 'Waviness | ≤0.15 um/20mm | 0.090 | 0.102 | A |
| 'SiO2 coating thickness | ≥300 Å | 339.00 | 345.0 | A |
| 'ITO coating thickness | 250 ±50 Å | 254.00 | 262.0 | A |
| 'Sheet Resistance | 70 ~ 90 Ω/£ | 76.00 | 83.0 | A |
| 'Transmission | Tr ≥87% (λ= 550nm) | 89.50 | 89.6 | A |
| 'Etching time | ≤ 40S | 20.00 | 20.0 | A |
| 'Alkaline resistance | R/R0≤110 % | 101.30 | 101.3 | A |
| 'Acid resistance | R/R0≤110 % | 101.20 | 101.2 | A |
| 'Heat Resistance | R/R0≤350 % | 205.40 | 206.2 | A |
| 'Adhension | No damage | OK | A | |
| 'Abrasion | No denudation | OK | A | |
| 'Appearance | Ref. the specification of SaidaGlass standard | OK | A |
What to specify when you request a quote
- Sheet resistance — state the target sheet resistance and its tolerance.
- Transmittance — give the minimum visible transmission at the resistance you need.
- Substrate and thickness — listed as “0.5mm”; name the base glass (soda-lime, borosilicate, alkali-free, quartz) and thickness.
- Size and cutting — listed as “0.33mm, 0.55mm, 0.7mm, 1.1mm, 1.5mm, 2.0mm,”; give the cut size and whether edges are seamed.
- Pattern or electrodes — send a drawing for any etched pattern, bus bar or electrode.
Engineering guides for this part
For material grades and coating options, see FTO Conductive Glass for Custom Slides: Material & Coating Options. How parts like this are machined and finished is covered in FTO Conductive Glass Processing for Optoelectronics. For an application example, read FTO Conductive Glass for Smart Appliance Heating Sensors. A related standard product is Custom FTO Conductive Glass.
FAQ
Where is this patterned conductive glass used? expand_more
Listed applications: Electronics & Instruments.
What should I include in a quote request? expand_more
Include sheet resistance, transmittance, substrate and thickness, size and cutting and pattern or electrodes, plus quantity and a drawing if the part is custom.
