Product type: Spherical Lenses. Application: Lighting, Medical, Optical, Photography. Model: TT Lens 93.
Overview

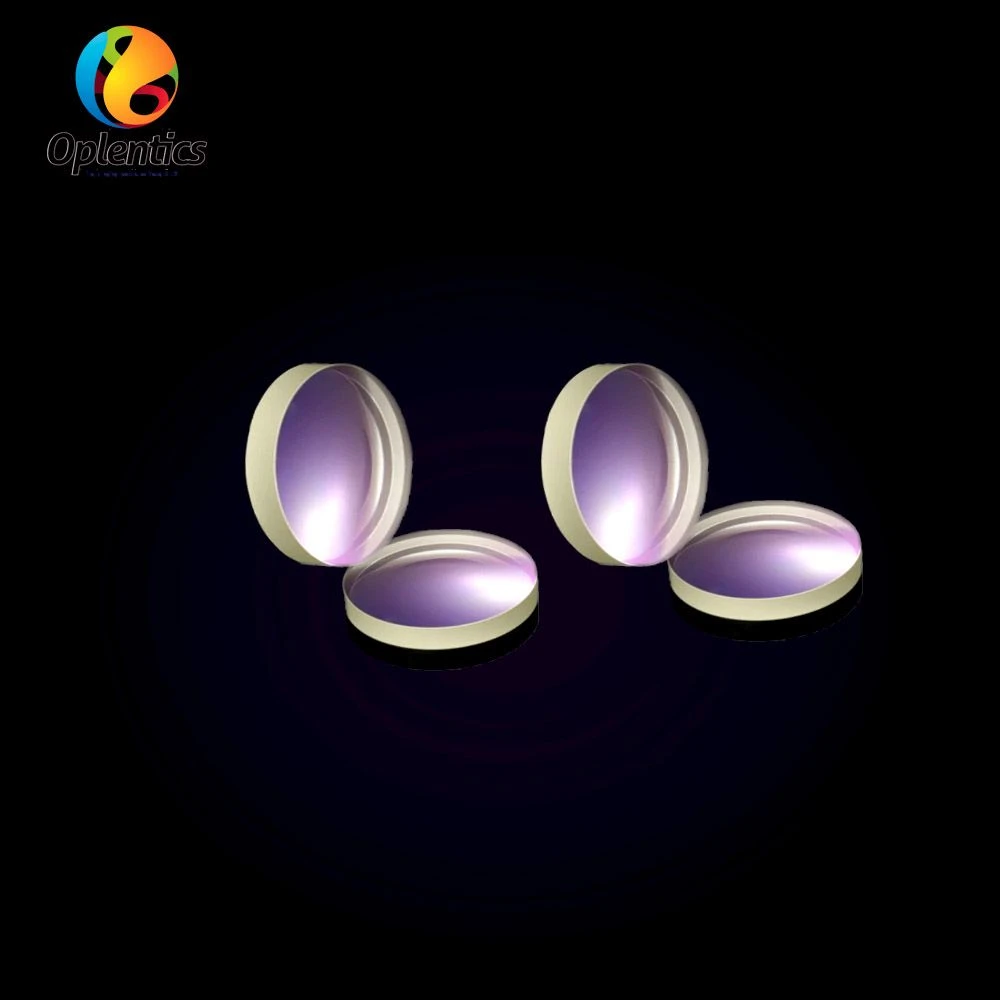

1" Diameter Anti-Reflective Coated N-Sf11 Optical Glass Spherical Singlet Lens is an optical lens made from Optical Glass. Listed geometry: thickness as Required, spherical lenses shape. Optical / electrical data: transmittance >95%. Coating: HMC; surface quality as Required. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Spherical Lenses |
| Shape | Spherical Lenses |
| Thickness | as Required |
| Transmittance | >95% |
| Coating | HMC |
| Surface Quality | as Required |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Lens 93 |
| Lenses Color | Clear |
| Bevel | Protective Bevel as Required |
| Polished | Yes |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Name | 1" Diameter Anti-Reflective Coated N-SF11 Optical Glass Spherical Singlet Lens |
|---|---|
| Size | 1" or customized |
| Shape | Plano-concave, plano-convex,double-concave,double-convex,double cemented,triplet cemented,positive meniscus,negative meniscus |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “as Required”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “Protective Bevel as Required”; state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
