Application: Photo Frame. Model: SE01. Function: Decorative Glass.
Overview

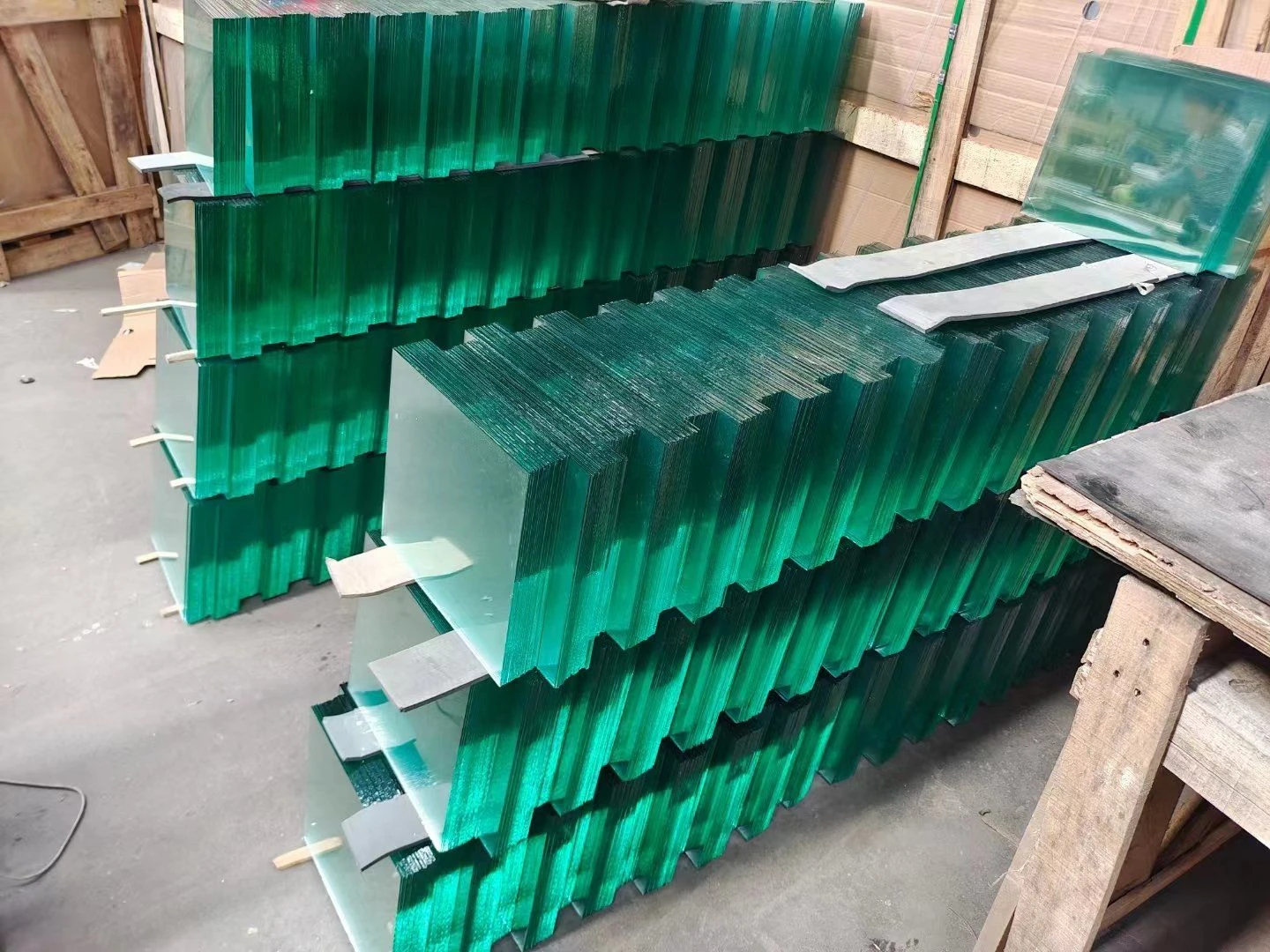

The 1mm 1.8mm Hot Selling Clock / Picture Photo Frame Clear Sheet Glass is supplied as a building / safety glass. Listed geometry: size 600X900mm, 914X1220mm,700X1000mm, thickness 1mm,1.3mm,1.4mm,1.5mm,1.7mm,1.8mm,2mm, square shape. Typical applications: Photo Frame. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Square |
|---|---|
| Size | 600X900mm, 914X1220mm,700X1000mm |
| Thickness | 1mm,1.3mm,1.4mm,1.5mm,1.7mm,1.8mm,2mm |
| Usage | Photo Frame |
| Model NO. | SE01 |
| Structure | Solid |
| Function | Decorative Glass |
| Nominal Thickness | 1.8mm |
| Surface State | Ordinary Net Sheet Glass |
| Grade | Grade One |
| Forming | Pittsburgh Process |
| Workmanship | Molding machinery |
| Color | Clear |
| Name | Sheet Glass,Clear Sheet Glass |
| ThicknessL | 1mm 1.3mm 1.4mm 1.5mm 1.7mm 1.8mm 2mm |
| Normal Size | 630x930mm(1mm ), 600×900, 700x1000mm, 914x1220mm |
| Packing Detail | 1. Interlay paper between two sheets. |
| Supplier | Qingdao Sunny Glass Co., Ltd. |
Technical data
| Specification | Packing and QTY./20'GP |
|---|---|
| 1mmx630x930 | 420pcsx40=9843.12 m2 |
| 1.3mmx600x900 | 450pcsx32=7776 m2 |
| 1.3mmx700x1000 | 420pcsx26=7644 m2 |
| 1.3mmx914x1220 | 450pcsx16=8028.58 m2 |
| 1.4mmX600X900 | 420pcsx32=7257.6 m2 |
| 1.4mmx700x1000 | 420pcsx26=7644 m2 |
| 1.4mmx914x1220 | 415pcsx16=7404.13 m2 |
| 1.5mmx600x900 | 400pcsx32=6912 m2 |
| 1.5mmx700x1000 | 410pcsx24=6888 m2 |
| 1.5mmx914x1220 | 460pcsx14=7181.12 m2 |
| 1.7mmx600x900 | 400pcsx28=6048 m2 |
| 1.7mmx700x1000 | 360pcsx24=6048 M2 |
| 1.7mmx914x1220 | 400pcsx14=6244.45 m2 |
| 1.8mmx600x900 | 390pcsx28=5896.8 m2 |
| 1.8mmx700x1000 | 390pcsx22=6006 m2 |
| 1.8mmx914x1220 | 390pcsx14=6088.34 m2 |
| 2mmx600x900 | 360pcsx28=5443.2 m2 |
| 2mmx700x1000 | 360pcsx22=5544 m2 |
| 2mmx914x1220 | 360pcsx13/14=5218.57/5620 m2 |
| Payment terms | 30%deposit and balance before shipment by T/T |
| Delivery | 15days after deposit receipt |
| Thickness | Visible Light | Visible Light | Solar | Solar | Visible-Infrared | Ultraviolet |
| Transmittance | Reflectivity | Transmittance | Reflectivity | Transmittance | Transmittance | |
| 3mm | 90.25 | 8.3 | 85.09 | 7.7 | 80.51 | 80.62 |
| 4mm | 89.82 | 8.3 | 83.04 | 7.6 | 77.03 | 78.18 |
| 5mm | 89.39 | 8.2 | 81.07 | 7.4 | 73.71 | 76.02 |
| 6mm | 88.96 | 8.2 | 79.17 | 7.3 | 70.54 | 74.08 |
| 8mm | 88.31 | 8.1 | 76.51 | 7.1 | 66.14 | 70.6 |
| 10mm | 87.47 | 8.1 | 73.61 | 6.9 | 61.56 | 67.15 |
| 12mm | 86.25 | 8 | 68.53 | 6.6 | 53.09 | 66.23 |
What to specify when you request a quote
- Glass type and thickness — listed as “1mm,1.3mm,1.4mm,1.5mm,1.7mm,1.8mm,2mm”; name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “Square”; send a drawing with outline, holes and edge finish.
