Product type: Fresnel Lenses. Application: Lighting, Medical, Optical, Photography, Astronomy.
Overview

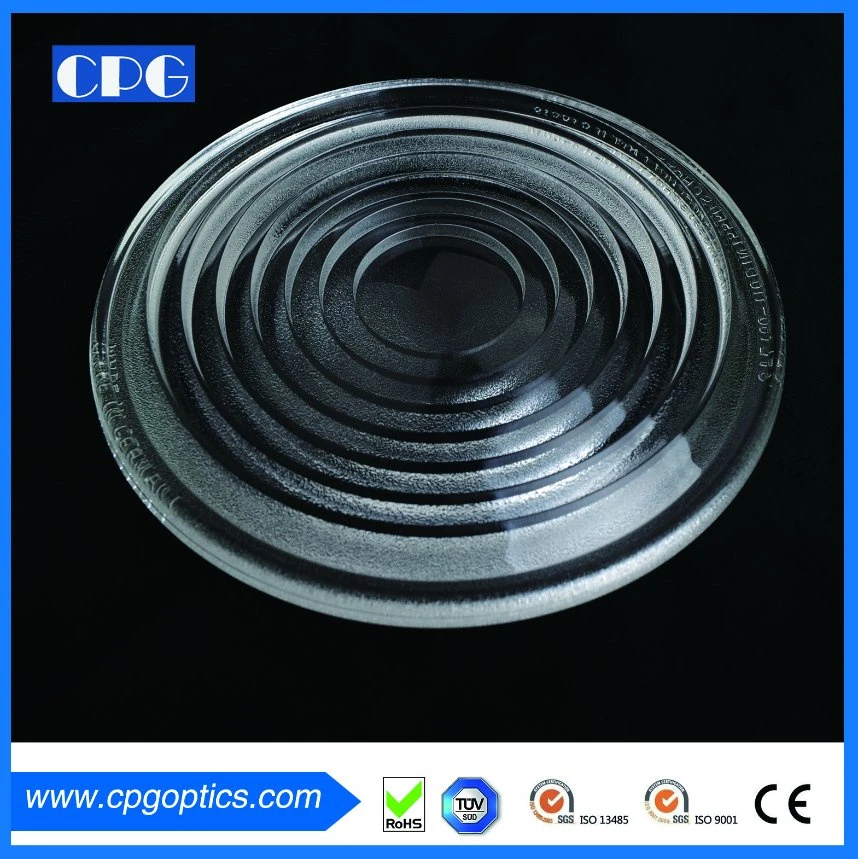

The 25.4mm Photo-Etching Optical Glass Positive/Negative Fresnel Lens is supplied as an optical lens made from Optical Glass. Listed geometry: diameter 25.4mm, single-lens shape. Optical / electrical data: transmittance 90%-95%. Coating: HMC; surface quality 10/5(can change for different types and as required). Typical applications: Lighting, Medical, Optical, Photography and Astronomy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Fresnel Lenses |
| Shape | Single-lens |
| Transmittance | 90%-95% |
| Coating | HMC |
| Surface quality | 10/5(can change for different types and as required) |
| Parallelism | < 1arcsec(can change for different types and as rquired) |
| Usage | Lighting, Medical, Optical, Photography, Astronomy |
| Lenses Color | Clear |
| Materials | Optical Glass or Plastic. |
| Diameter range | 25.4mm |
| Dimension tolerance | +/0.005mm,+/-0.1mm |
| Thickness tolerance | +/-0.005mm,+/-0.1mm |
| Package detail | Optics are packed with Capacitor paper, white paper, custom-made plastic containers etc |
| Supplier | CPG OPTICS LIMITED |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “25.4mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “10/5(can change for different types and as required)”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
