Application: Furniture, Door, Building, Window. Model: 2112W-TP856.
Overview

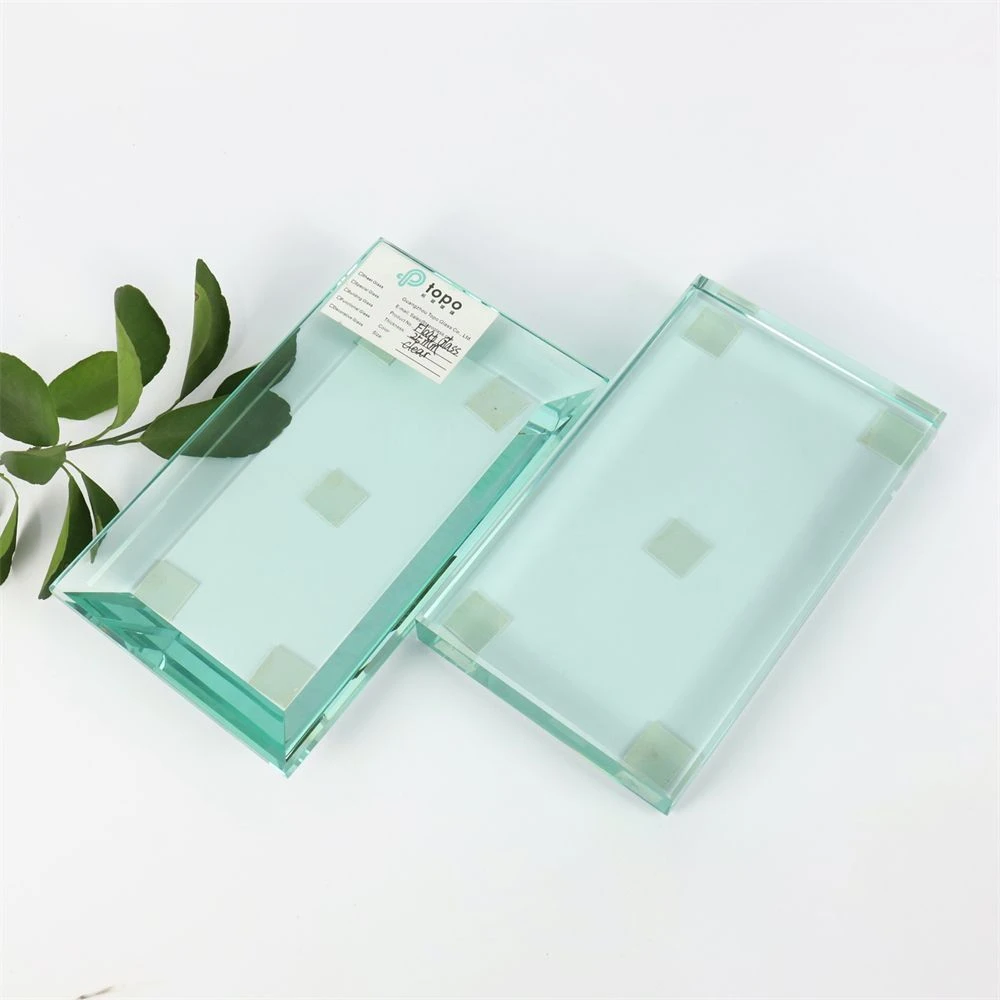

2mm-25mm Clear Float Sheet Raw Glass (W-TP) is a precision glass plate / sheet. Listed geometry: flat shape. Optical / electrical data: transmittance 87%-89%. It is used in Furniture, Door, Building and Window. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Usage | Furniture, Door, Building, Window |
| Structure | Solid |
| Model NO. | 2112W-TP856 |
| Surface State | Ordinary Net Sheet Glass |
| Grade | Excellent Grade |
| Forming | Float Process |
| Workmanship | Molding machinery |
| Color | Clear |
| Class | Sheet Glass |
| Appearance | Smooth |
| Technics | Float Process |
| Silicon Content | Above 80% |
| Transparency | Transparent |
| Light Transmittance | 87%-89% |
| Clear Float Glass | 2mm-25mm Clear Float Sheet Raw Glass (W-TP) |
| Key Specifications | Product No. |
| Product Show | Clear Building Flat Float Glass |
| Topo Glass Manufacturer's Advantages | 1. Located in the Pearl River Delta, closed to Nansha Port & Huangpu Port; |
| Loading Situations | 20GP |
| Supplier | Guangzhou Topo Glass Co., Ltd. |
Technical data
| Product No. | W-TP |
|---|---|
| Product name | Clear Glass |
| Color | Clear |
| Thickness | 2mm, 3mm, 4mm, 5mm, 6mm. 7mm, 8mm, 10mm, 12mm, 19mm, 22mm, 25mm |
| Product Size | 2440mmx3300mm / 2440mmx3660mm / 2140mmx3300mm / 2140mmx3660mm / 1830mmx2440mm/ 1650mmx2140mm / 2140mmx1830mm / 1650mmx2440mm etc. |
| Customized | Customized |
| Structure | Solid |
| Light transmittance | 87%-89% |
| Transparency | Transparent |
| Technics | Float Process |
| Origin | China |
| Silicon content | above 80% |
| Packing | Safety Plywood Crates |
| MOQ | 20ft |
| Loading Port | Nansha Port / Huangpu Port / Yantian Port / Shekou Port |
| Payments terms | T/T |
| Delivery Time | Within 15 working days |
| 1830mmx1220mm / 1650mmx1070mm etc. | 2440mmx1830mm / 2440mmx3300mm etc. | 3300mmx5000mm / 3300mmx5500mm etc. |
| 20GP | 20GP | 20GP |
| 1830mmx1220mm / 1650mmx1070mm etc. | 2440mmx1830mm / 2140mmx1650mm etc. | 2140mmx3660mm / 2140mmx3300mm etc. |
What to specify when you request a quote
- Material — name the glass or quartz grade.
- Outline and thickness — give outline, thickness and tolerances.
- Holes, slots and features — listed as “Flat”; dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — listed as “Ordinary Net Sheet Glass”; state polish and flatness where they matter.
