Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography. Model: NBP027.
Overview

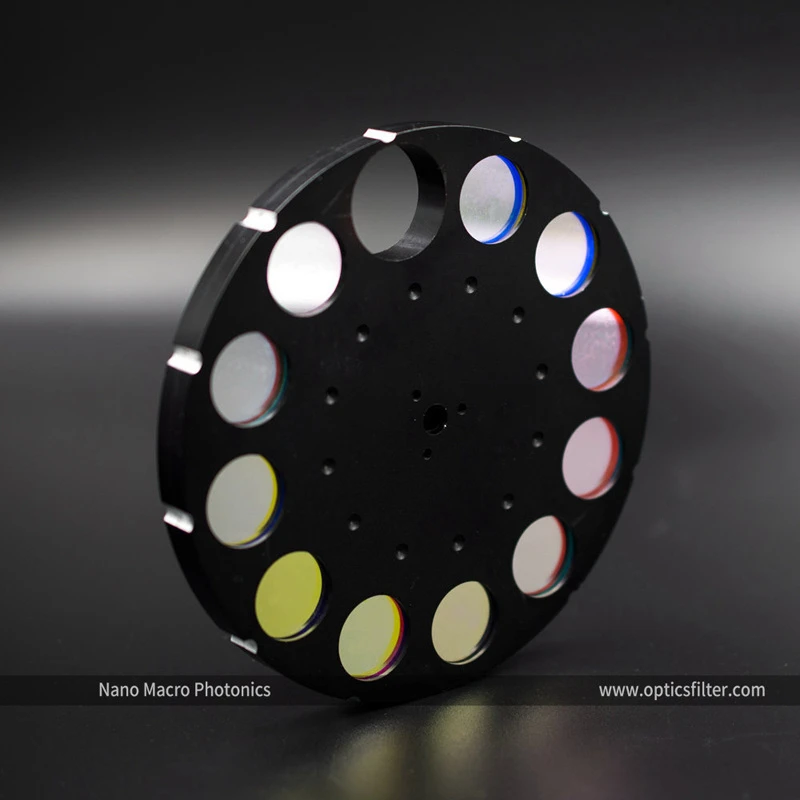

The 340-1080nm Optical Thin Film Bandpass Narrow Band Filter is supplied as a bandpass filter made from Glass. Listed geometry: thickness 1mm-2mm. Optical / electrical data: wavelength 340-1080nm, bandwidth Customized. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Cwl | 340-1080nm |
| Fwhm | Customized |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 1mm-2mm |
| Model NO. | NBP027 |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Cwl Tolerance | +-2nm |
| Blocking Range | 200-1200nm |
| Optical Aperture | Customize |
| Flat Polish | 60-40 |
| Edge Craft | Customize |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| CWL | 340-1080nm customized |
|---|---|
| FWHM | 8-20nm customized |
| Dimension | customized |
| Thickness | customized |
| Material | Optical glass |
| Surface Quality | 60/40 Scratch/Dig |
What to specify when you request a quote
- Spectral target — listed as “340-1080nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — listed as “200-1200nm”; give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “1mm-2mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
