Product type: Borosilicate Glass. Application: 3D Printer Raw Material. Model: bolipai-001. Function: Optical Function, Thermal Function, Biological and Chemical Function.
Overview

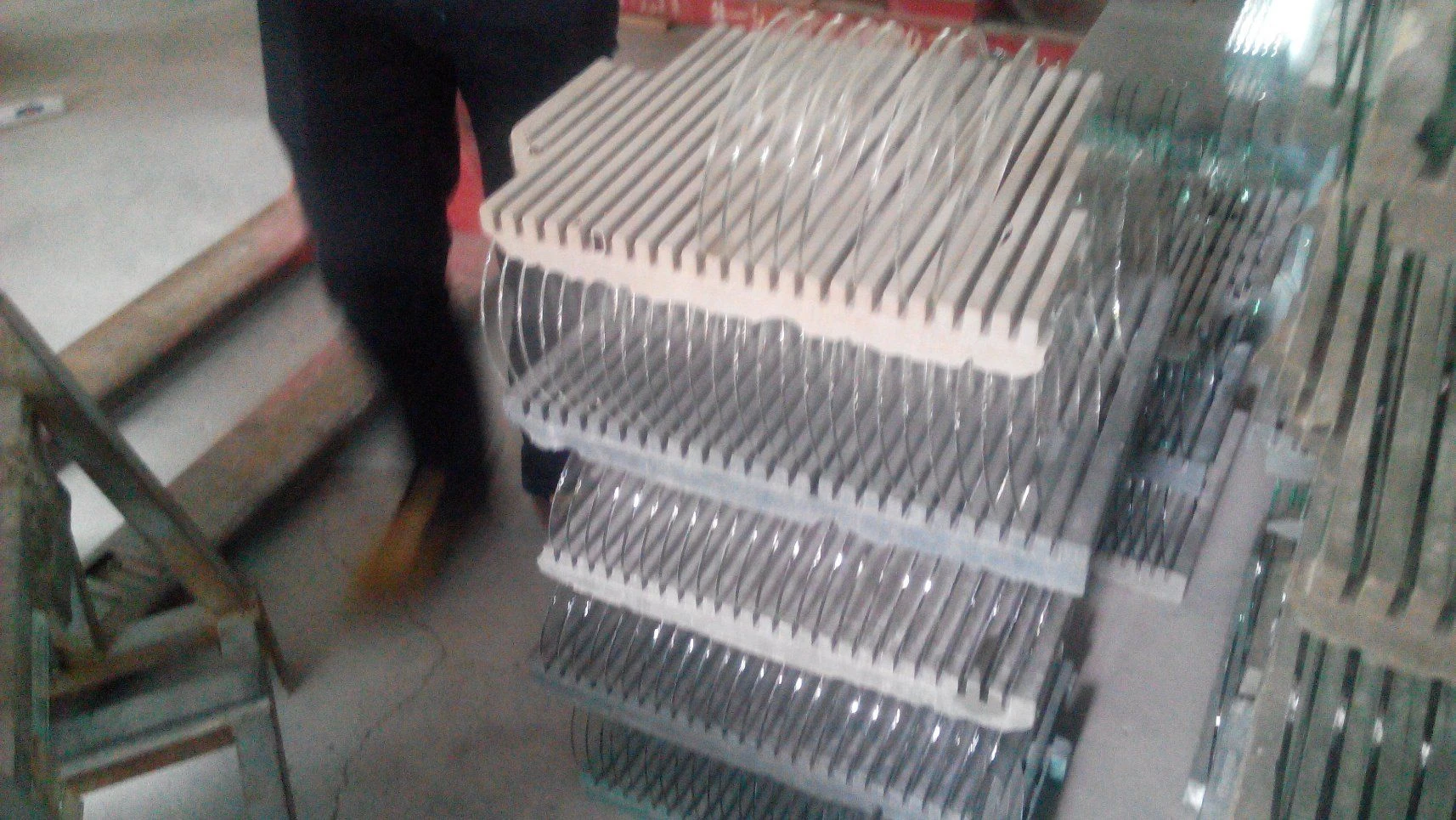

The 3D Printer Material Tempered Borosilicate Glass Plates is supplied as a precision glass plate / sheet. Listed geometry: plate shape. Optical / electrical data: transmittance 92%(thickness≤ 4mm). Temperature 100 >300(Strengthening type). It is used in 3D Printer Raw Material. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Borosilicate Glass |
|---|---|
| Shape | Plate |
| Application | 3D Printer Raw Material |
| Usage | 3D Printer Raw Material |
| Structure | Solid |
| Model NO. | bolipai-001 |
| Moh's Hardness | 7 |
| Function | Optical Function, Thermal Function, Biological and Chemical Function |
| Transparency | Transparent |
| Processing Method | Surface Coating |
| Preparation Process | High Speed Cooling Method |
| Color | Clear |
| Dimensions(mm) | 1200× 600 1150× 850 1150× 1700 |
| Available thickness(mm) | 1–12 |
| Density (g/cm3 ) (at 25° C) | 2.23± 0.02 |
| Co-efficient of expansion(α )(20-300° C) | 3.3± 0.1× 10-6 |
| Softening point(° C) | 820± 10 |
| Identical temperature difference(K) | 100 >300(Strengthening type) |
| Maximum working temperature(° C) | ≥ 450 |
| Refractive(nd ) | 1.47384 |
| Light transmission | 92%(thickness≤ 4mm) |
| Processing | Pre-cut formats, edge processing |
| Supplier | Jiangmen Bolipai Glass Products Co., Ltd. |
What to specify when you request a quote
- Material — name the glass or quartz grade.
- Outline and thickness — listed as “1200× 600 1150× 850 1150× 1700”; give outline, thickness and tolerances.
- Holes, slots and features — listed as “Plate”; dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — state polish and flatness where they matter.
Engineering guides for this part
For material grades and coating options, see Custom Borosilicate Glass Sheets Cut to Size: Precision and Performance. How parts like this are machined and finished is covered in Flat Glass Polishing Process for Precision Substrates. For an application example, read Custom Ultra-Thin Glass Discs for Appliance Sensor Assemblies. Before sending a drawing, check Precision Glass Material Selection: Fused Silica vs Borosilicate & More. A related standard product is Custom LED Package Glass Cover Plate.
