Product type: Corner Cube Prism. Application: Surveying. Model: ADS402-3.
Overview

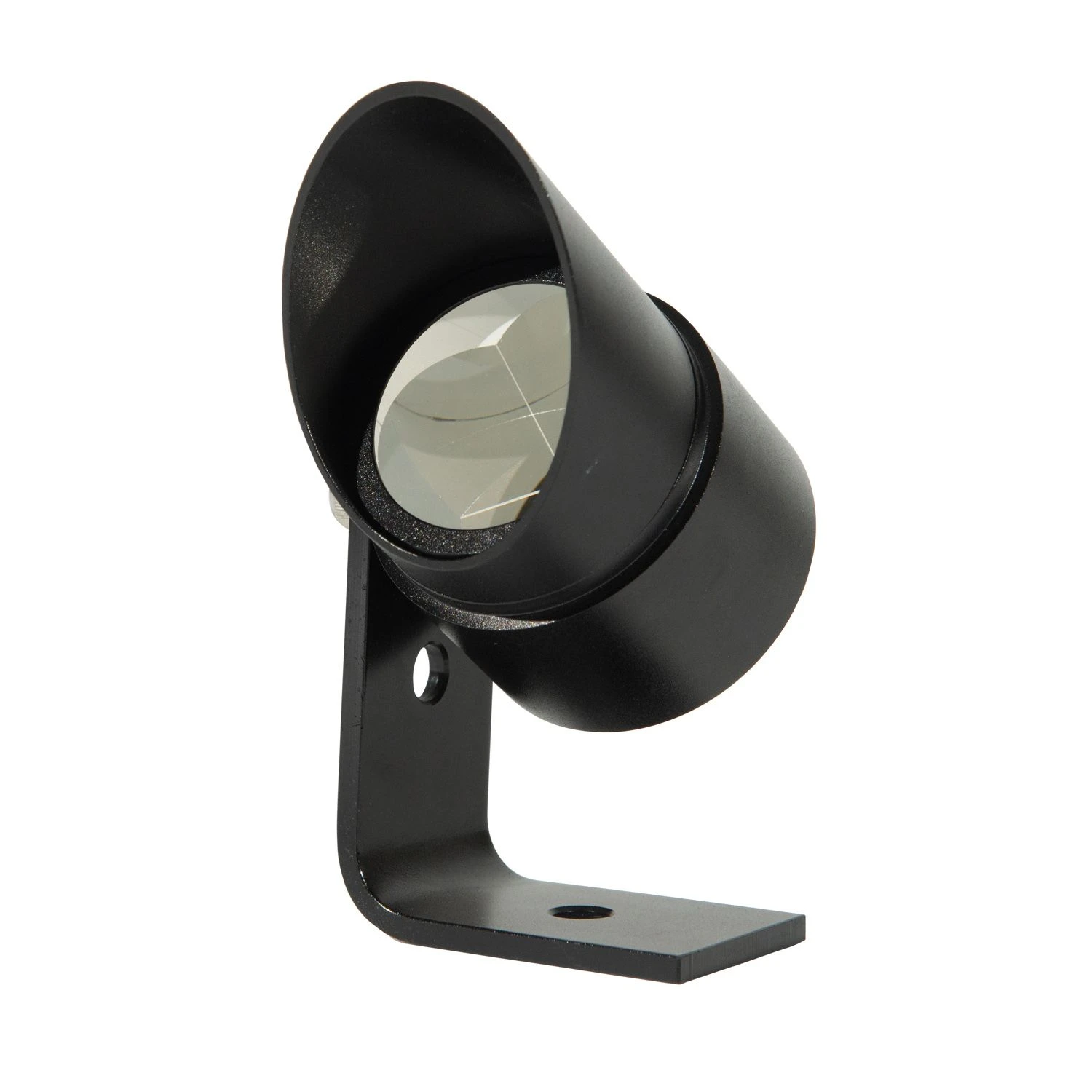

42mm Best Seller High Quality L Bracket Survey Prism for Road Monitoring Surveying Mini Optical Reflector Prism Bar: an optical prism made from Glass. Listed geometry: diameter 42mm, cube corner prism shape. Coating: Copper/Silver. It is used in Geographical Survey. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Corner Cube Prism |
| Shape | Cube Corner Prism |
| Diameter | 42mm |
| Coating | Copper/Silver |
| Application | Geographical Survey |
| Usage | Surveying |
| Model NO. | ADS402-3 |
| Frame Material | Aluminum Alloy |
| Supplier | Commander Group Ltd. |
Technical data
| Model NO. | ADS402-3 |
|---|---|
| Applicable | surveying |
| Prism Diameter | 42mm |
| Prism Material | BK7 |
| Constant | 0mm |
| Accuracy | < 5″ |
| Material of prism holder | Metal |
| Coated | copper/silver |
| Transportation Package | Soft bag,carton |
| Mounting hole | Ø8 or Ø10 |
