Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography.
Overview

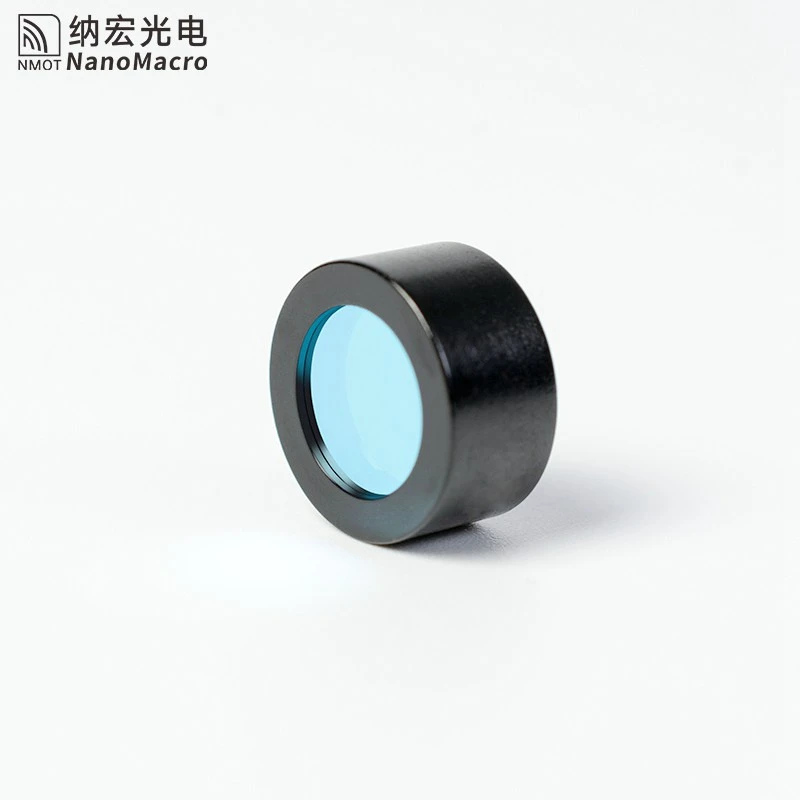

450nm Optical Glass Interference Coating Bandpass Filter Ultra-Narrow Band Filter is a bandpass filter made from Glass. Listed geometry: size 30X30mm, thickness Customized. Optical / electrical data: wavelength 450nm, bandwidth 48nm or Custom, transmittance T>90%. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Size | 30X30mm |
| Cwl | 450nm |
| Fwhm | 48nm or Custom |
| Transmittance | T>90% |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | Customized |
| Color | Customized |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| CWL | 450±5nm |
|---|---|
| FWHM | 48±5nm or custom |
| Blocking range | 350-1100nm |
| Optical density | OD2-OD6 |
| Transmittance | T>90% |
| Material | Glass |
| Dimension | 30x30mm or custom |
| Surface quality | 60/40 |
What to specify when you request a quote
- Spectral target — listed as “450nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “30X30mm”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
