Product type: Optical Filter. Application: Lighting, Medical, Optical, Photography.
Overview

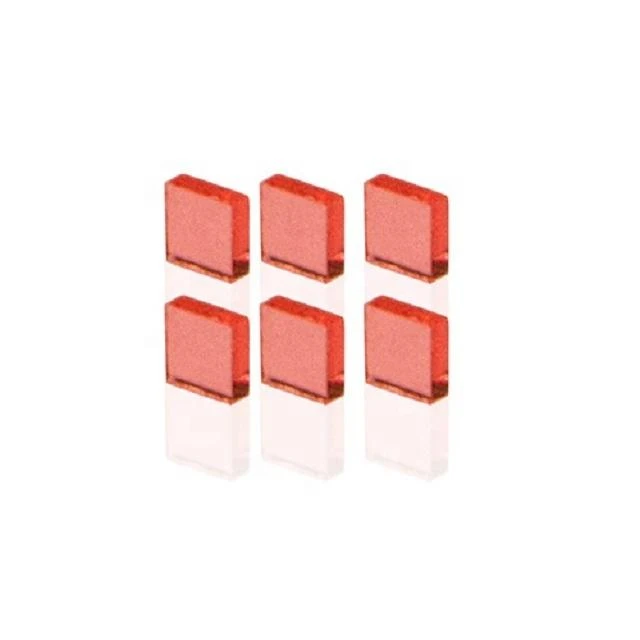

The 650nm Optical Filter Band Pass Filter Low Pass is supplied as a bandpass filter made from Glass. Listed geometry: diameter Customized, square or rectangular shape. Optical / electrical data: transmittance 90%. Coating: Polished; flatness Lambda/4, Lambda/2 or as Reques. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Optical Filter |
| Shape | Square or Rectangular |
| Diameter | Customized |
| Transmittance | 90% |
| Coating | Polished |
| Clear Aperture | 90% |
| Usage | Lighting, Medical, Optical, Photography |
| Lenses Color | Clear |
| Radius | Customized |
| Surface Flatness | Lambda/4, Lambda/2 or as Reques |
| Surface Roungh | 60/40 |
| Structure | Plano Concave |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
Technical data
| Name | Optical filters |
|---|---|
| Material | B270, BK7, JGS |
| CWL | 405-545nm;532-650nm;600-670nm |
| Cut-on wavelength | 497nm±3nm |
| Diameter | 1-200mm |
| Thickness | 0.5-10mm |
| Surface roungh | 60/40, 40/20 or better |
| Surface flatness | lambda/4, lambda/2 or as request |
| Chamfer | 0.1+/-0.05mmx45deg |
| Coating | AR Coating or Customer Design |
What to specify when you request a quote
- Spectral target — listed as “90%”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “Customized”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “Lambda/4, Lambda/2 or as Reques”; quote scratch-dig for imaging paths.
