Product type: Color Filter. Application: Lighting, Medical, Optical, Photography.
Overview

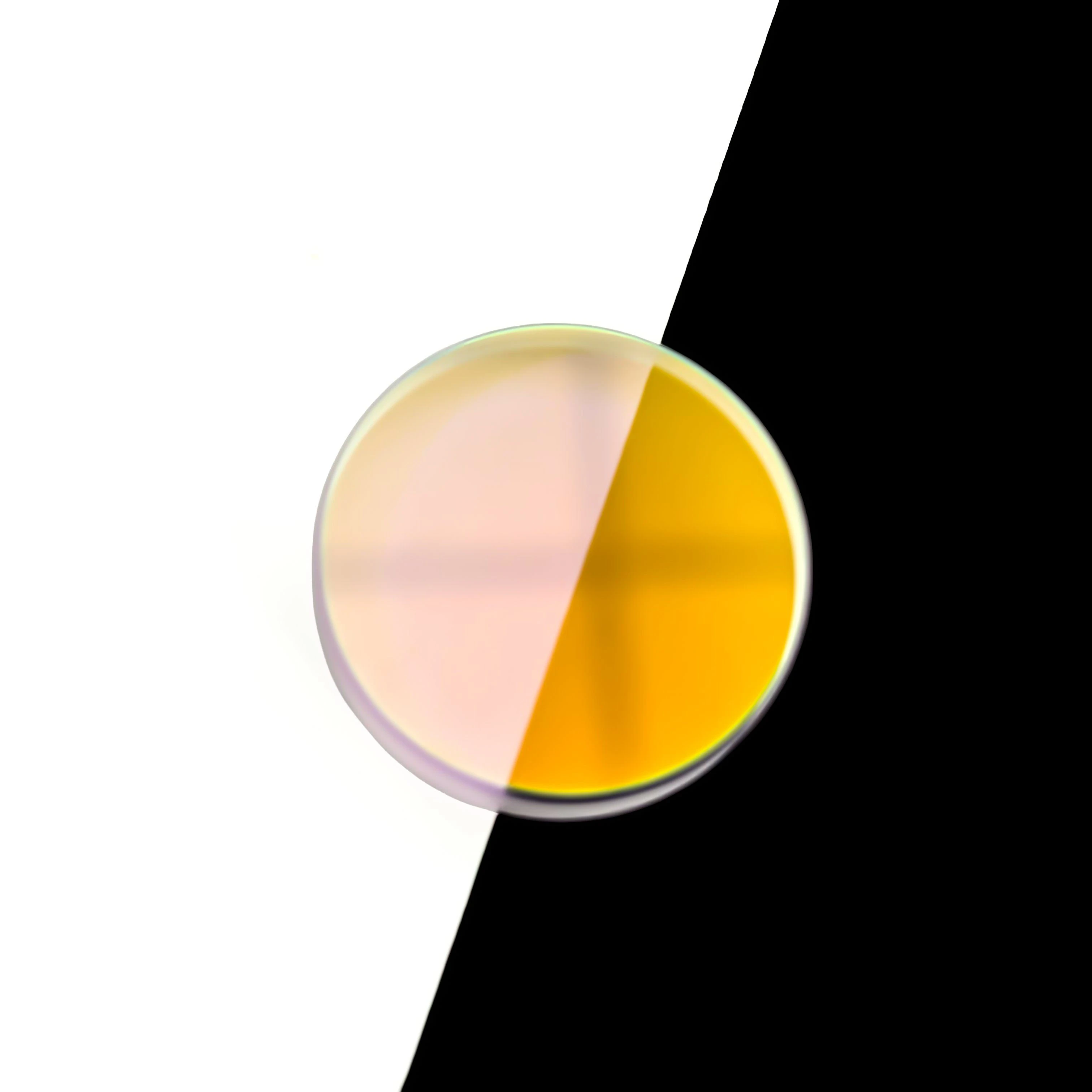

The 905nm 780nm Band-Stop Filter Od4 Notch Optical Notch Filter is supplied as a bandpass filter made from Glass. Listed geometry: size Customized, thickness 0.5mm-1mm. Coating: Ar / Bbar / Hmc / PVD / Iad; surface quality 40/20, 60/40. It is used in Raman Spectroscopy, Fluorescence Imaging and Laser SA. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Size | Customized |
| Surface Quality | 40/20, 60/40 |
| Application | Raman Spectroscopy, Fluorescence Imaging, Laser SA |
| Usage | Lighting, Medical, Optical, Photography |
| Thickness Range | 0.5mm-1mm |
| Color | Transparent |
| Principle | Selective Absorption Filter |
| Angle of incidence | 0° |
| Capacity | 6000000PCS/Month |
| ODM Service | Supported |
| OEM Service | Supported |
| Filter Type | Bandpass / Longpass / Shortpass / ND / IR Cut / UV |
| Coating Durability | Hard Coated / Mil-Spec Optional |
| Coating Type | Ar / Bbar / Hmc / PVD / Iad |
| Optical Density | Od2 to Od6 |
| Targeted "surgical" filtering | Like an optical scalpel, it deeply truncates only a specific narrow wavelength band (such as a specific laser wavelength), while causing almost no damage to adjacent wavelengths. |
| Broad-spectrum high transmittance | Unlike traditional absorption filters, it has extremely high light energy utilization in non-target wavelength bands, ensuring the overall brightness of imaging or detection. |
| Supplier | Suzhou Vangta Electronic Technology Co., Ltd. |
Technical data
| Trademark | WQT / Vangta | Size | Customized |
| Origin | Jiangsu, China | Wavelength Range | 400nm – 1100nm |
| Brand | Vantga | Coating | AR Coating / Spectral Coating / High Reflection Coating |
| Model No. | YGP-04 | Light Transmission | High Transmittance |
| Product Type | Optical Filter | Diffusion Angle | Customized |
| Material | Glass / Acrylic / PMMA / ZnSe / Fused Quartz | Application | Raman spectroscopy detection/fluorescence microscopy and biomedicine |
| Shape | Custom Shape | Customization | OEM / ODM Available |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — listed as “Od2 to Od6”; give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “Customized”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “40/20, 60/40”; quote scratch-dig for imaging paths.
