Product type: Ceramic Plate. Application: Aerospace, Architectural, Ceramic Decorations, Electronics, Home Use, Medical, Refractory, Semiconductor. Model: 100*100*3.5 140*140*3.5.
Overview

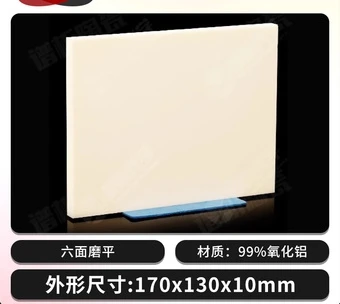

Alumina Plate for Sodium Borosilicate Glass Sealing, Cte 6.8 Ppm: a precision glass plate / sheet. Flatness <0.5mm; temperature 1400, 1500, 1600c, 1700c, 1800c. Listed for Aerospace, Architectural, Ceramic Decorations, Electronics and Home Use applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Ceramic Plate |
|---|---|
| Flatness | <0.5mm |
| Application | Aerospace, Architectural, Ceramic Decorations, Electronics, Home Use, Medical, Refractory, Semiconductor |
| Model NO. | 100*100*3.5 140*140*3.5 |
| Grain Size | <100nm |
| Purity | 99% |
| Main Material | Andalusite, Alumina |
| Working Temperature | 1400, 1500, 1600c, 1700c, 1800c |
| Color | White, Lvory, Cream |
| V Shape Angle | Can Be Customized |
| Supplier | Suzhou Moat City Technology Ltd |
What to specify when you request a quote
- Material — listed as “Andalusite, Alumina”; name the glass or quartz grade.
- Outline and thickness — listed as “<100nm”; give outline, thickness and tolerances.
- Holes, slots and features — listed as “Can Be Customized”; dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — listed as “<0.5mm”; state polish and flatness where they matter.
