Product type: Biconvex Lens. Application: Lighting, Medical, Optical, Photography. Model: LENS-01.
Overview

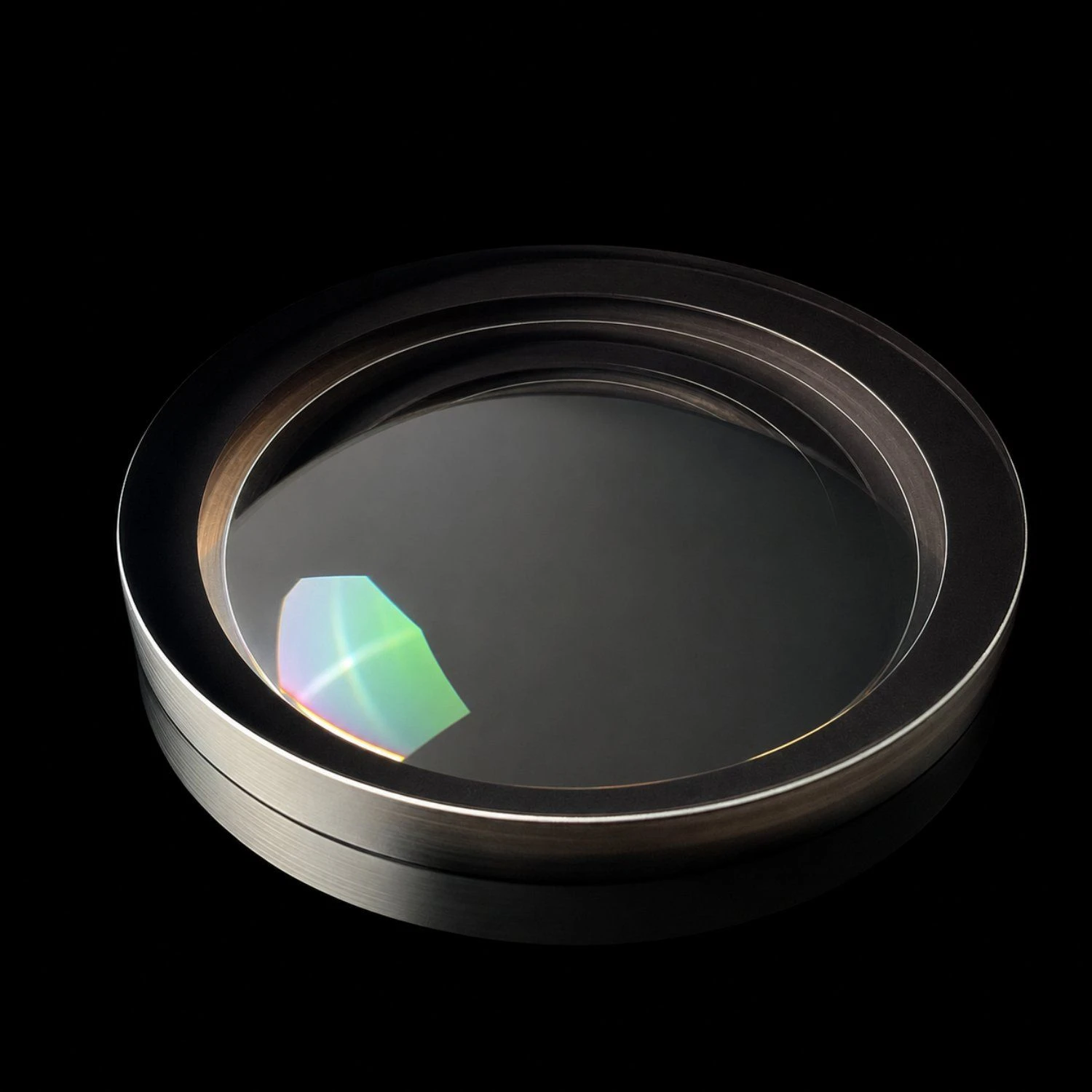

The Anti-Reflection Coat Defined Focal Length Custom Diffractive Optical Lens for Semiconductor Detection is supplied as an optical lens made from Bk7 / H-K9l Optical Glass. Coating: Nti-Reflective Coating; surface quality 60/40, 40/20, 20/10. Listed for Laser Machine Vision and Optical Equipment applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Bk7 / H-K9l Optical Glass |
|---|---|
| Type | Biconvex Lens |
| Shape | Customized |
| Coating | Nti-Reflective Coating |
| Surface Quality | 60/40, 40/20, 20/10 |
| Application | Laser Machine Vision / Optical Equipment |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | LENS-01 |
| Functions | Light convergence and divergence |
| Supplier | Suzhou Vangta Electronic Technology Co., Ltd. |
Technical data
| Origin | Jiangsu, China | Customization | OEM / ODM Available |
| Brand | Vangta | Coating | Anti-Reflective Coating |
| Model No. | LENS-01 | Surface Quality | 60/40, 40/20, 20/10 |
| Product Type | Biconvex Lens | Application | Laser Machine Vision / Optical Equipment |
| Diameter | 1–360mm / Customized | Material | BK7 / H-K9L Optical Glass |
What to specify when you request a quote
- Material — listed as “Bk7 / H-K9l Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60/40, 40/20, 20/10”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Nti-Reflective Coating”; list the band and reflectance or transmission target.
