Product type: Cylindrical Lenses. Application: Lighting, Medical, Optical, Photography. Model: TT Lens 66.
Overview

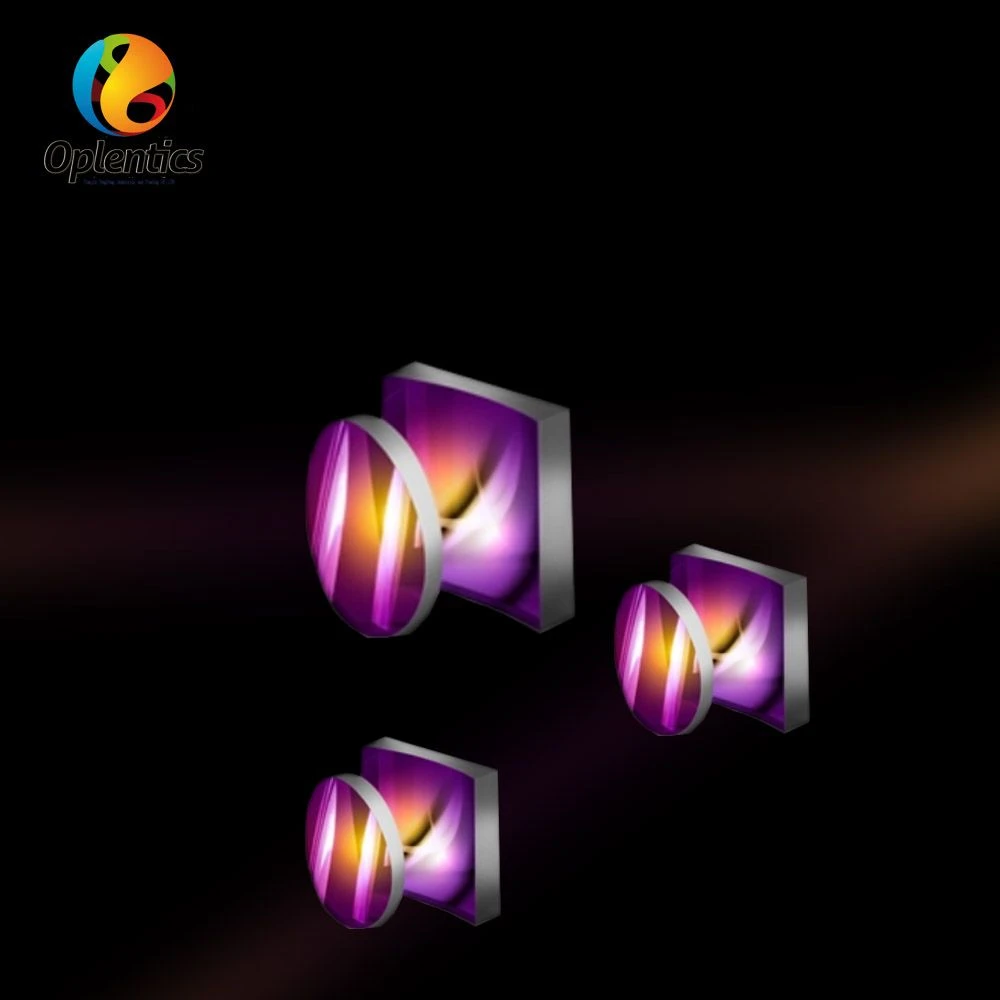

Ar Coated Fused Silica Laser Grade Laser Line Cylinder Lenses: an optical lens made from Optical Glass. Listed geometry: thickness as Required, cylindrical shaped lens shape. Optical / electrical data: transmittance >95%. Coating: HMC; surface quality as Required. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Cylindrical Lenses |
| Shape | Cylindrical Shaped Lens |
| Thickness | as Required |
| Transmittance | >95% |
| Coating | HMC |
| Surface Quality | as Required |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | TT Lens 66 |
| Lenses Color | Clear |
| Polished | Yes |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data
| Product Name | AR Coated Fused Silica Laser Grade Laser Line Cylinder Lenses |
|---|---|
| Coating | AR Coating |
| Size | Dia 1mm to 300mm |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “as Required”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
Engineering guides for this part
For material grades and coating options, see AR-Coated Glass Materials for High-Transmission Optical Parts. How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. For an application example, read AR Coated Glass for Appliance Touch Screens: Specs and Selection. Before sending a drawing, check Fused Silica Refractive Index: Key to Optical Design Improvement. A related standard product is AR-Coated High-Transparency Optical Glass.
