Product type: Lens. Model: SHOCKOE.
Overview

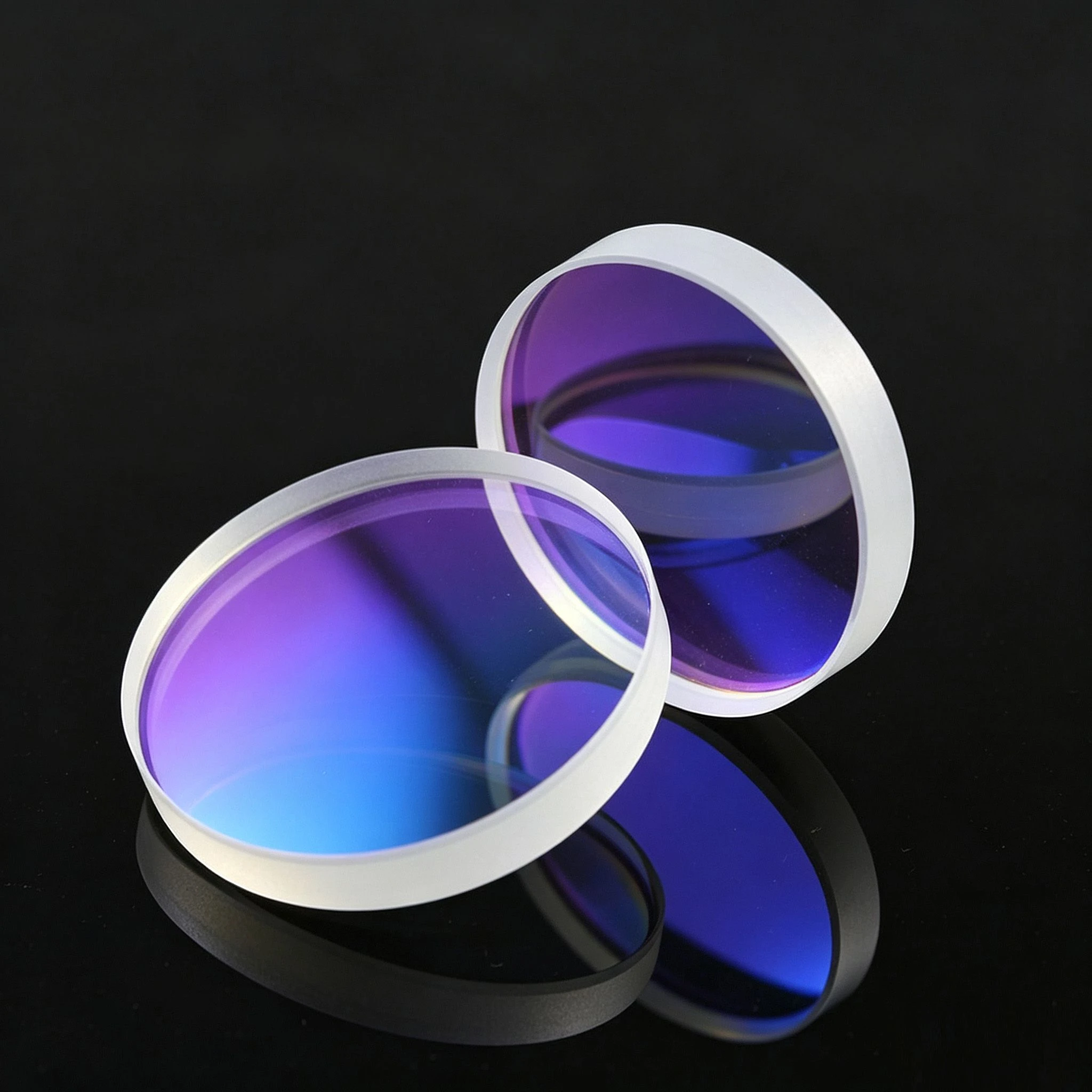

Ar Coated Quartz Lens for 1064nm Fiber Laser Machines is an optical lens made from Fused Silica. Listed geometry: thickness Cusomized, plane lens shape. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Fused Silica |
|---|---|
| Type | Lens |
| Shape | Plane Lens |
| Thickness | Cusomized |
| Model NO. | SHOCKOE |
| Standard Component | Standard Component |
| Selling Units | Single Item |
| Key Selling Points | Competitive Price |
| Color | Transparent |
| Laser Type | Fiber Laser |
| Single Package Size | 10X10X5 Cm |
| Weight (Kg) | 0.04kg |
| Cutting Material | Metal Material Cutting |
| Place of Origin | China |
| Spare Parts Type | Machine Consumables |
| Condition | New |
| Supplier | Shanghai Shockoe Automation Technology Co., Ltd. |
Technical data
| Protective Lens Specifications | |||||||||
| Specification Model | Diameter | Thickness | Weight | Wavelength | Power Range | Material | Threshold | Reflectivity | Remarks |
| 18*2 | 18 | 2 | 7 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 27.9*4.1 | 27.9 | 4.1 | 11 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 28*4 | 28 | 4 | 11 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 20*2 | 20 | 2 | 7 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 20*3 | 20 | 3 | 8 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 20*4 | 20 | 4 | 10 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 30*5 | 30 | 5 | 14 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 21.5*26000w | 21.5 | 2 | 10 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 21.5*215000w | 21.5 | 2 | 8 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 22.35*4.1 | 22.35 | 4.1 | 10 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 25.4*4 | 25.4 | 4 | 13 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 24.9*1.5 | 24.9 | 1.5 | 9 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 34*510000w | 34 | 5 | 19 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 34*515000w | 34 | 5 | 19 | 1064 | 6-15 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 34*520000w | 34 | 5 | 19 | 1064 | 6-20 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 37*710000w | 37 | 7 | 26 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 37*715000w | 37 | 7 | 26 | 1064 | 6-15 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 37*720000w | 37 | 7 | 26 | 1064 | 6-20 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 37*730000w | 37 | 7 | 26 | 1064 | 6-30 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 36*3 | 36 | 3 | 14 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 38.1*1.6 | 38.1 | 1.6 | 12 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 50*2 | 50 | 2 | 38 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 55*9 | 55 | 9 | 79 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 32*2(WSX Original) | 32 | 2 | 10 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 24.9*1.5RAYTOOLS Original | 24.9 | 1.5 | 10 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 27.9*4.1RAYTOOLS Original | 27.9 | 4.1 | 13 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 38.1*1.6RAYTOOLS Original | 38.1 | 1.5 | 20 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 37*7WSX Original | 37 | 7 | 24 | 1064 | 6-15 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 40*7 | 40 | 7 | 30 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 29.7*4.7 | 29.7 | 4.7 | 13 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 25.4*5 | 25.4 | 5 | 12 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 40*5 | 40 | 5 | 23 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 37*1.5 | 37 | 1.5 | 13 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 30*4 | 30 | 4 | 9 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 17*2 | 17 | 2 | 9 | 1064 | 1-6 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 42*9 | 42 | 9 | 37 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 40*2 | 40 | 2 | 14 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
| 45*3 | 45 | 3 | 20 | 1064 | 6-10 | ImportedQuartz | 40J/cm2/10ns | 99.8%/98.5% | CustomizedNon-Standard |
What to specify when you request a quote
- Material — listed as “Fused Silica”; name the glass or crystal.
- Geometry — listed as “10X10X5 Cm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
Engineering guides for this part
For material grades and coating options, see Fused Silica and Other Glass Materials for Machined Components. How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. For an application example, read AR Coated Glass for Appliance Touch Screens: Specs and Selection. Before sending a drawing, check Fused Silica Refractive Index: Key to Optical Design Improvement. A related standard product is AR-Coated High-Transparency Optical Glass.
FAQ
What is the Ar Coated Quartz Lens for 1064nm Fiber Laser Machines made of? expand_more
It is listed as Fused Silica. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
What sizes and thicknesses are available? expand_more
The listing gives thickness Cusomized. Custom outlines and thicknesses are made to drawing; state the tolerance you need.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
