Product type: Convex Lens. Application: Medical, Optical. Model: STF901.
Overview

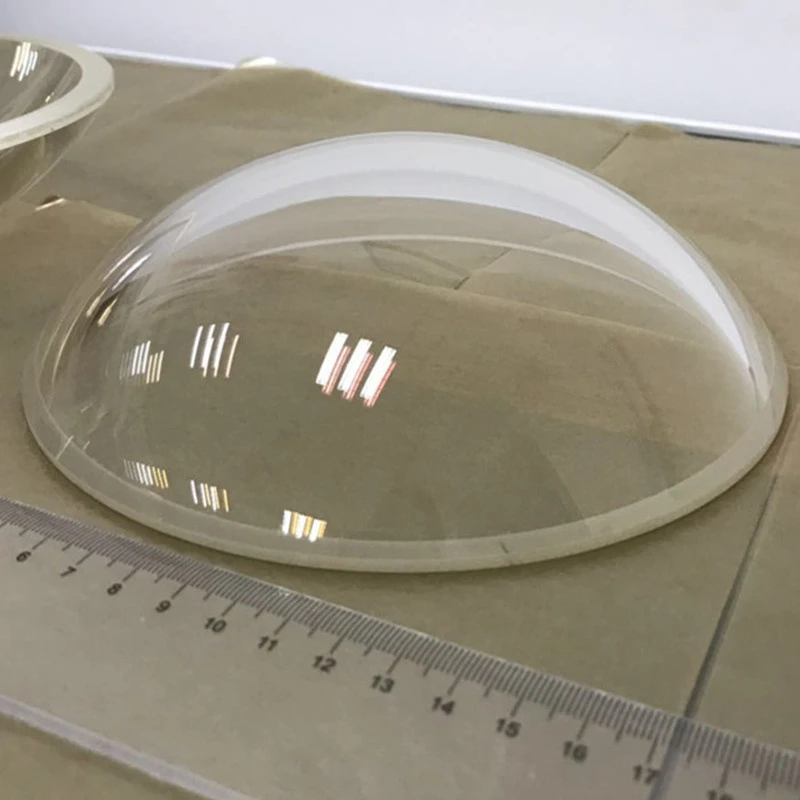

Big Size 400mm Dome Lens H-K9l Glass Ar Coating 400-700nm is an optical lens made from Glass. Listed geometry: single-lens shape. Optical / electrical data: transmittance >95%. Coating: HC; surface quality 60-40; flatness 1/4 Lambda. It is used in Medical and Optical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Convex Lens |
| Shape | Single-lens |
| Transmittance | >95% |
| Coating | HC |
| Surface Quality | 60-40 |
| Flatness | 1/4 Lambda |
| Usage | Medical, Optical |
| Model NO. | STF901 |
| Lenses Color | Clear |
| Tolerance | +/-0.05mm |
| Supplier | Changchun Sunday Optics Co., Ltd. |
Technical data
| Material | H-K9L, JGS1, Sapphire |
|---|---|
| Diameters Available | 8-400mm |
| Diameter Tolerance | +0.00/-0.05mm or customer design |
| Surface Quality | 60-40 |
| Thickness tolerance | +/-0.05mm |
| Clear Aperture | >90% of Diameter |
| Chamfer | 0.05-0.5mmx45degree, according to customer's needs. |
| Coating | BBAR 400-700nm |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60-40”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HC”; list the band and reflectance or transmission target.
