Product type: Optical Prism. Application: Beam Dispersion, Beam Split, Laser, Astronomy, Imaging, Detection, etc. Model: RAY-XS030#.
Overview

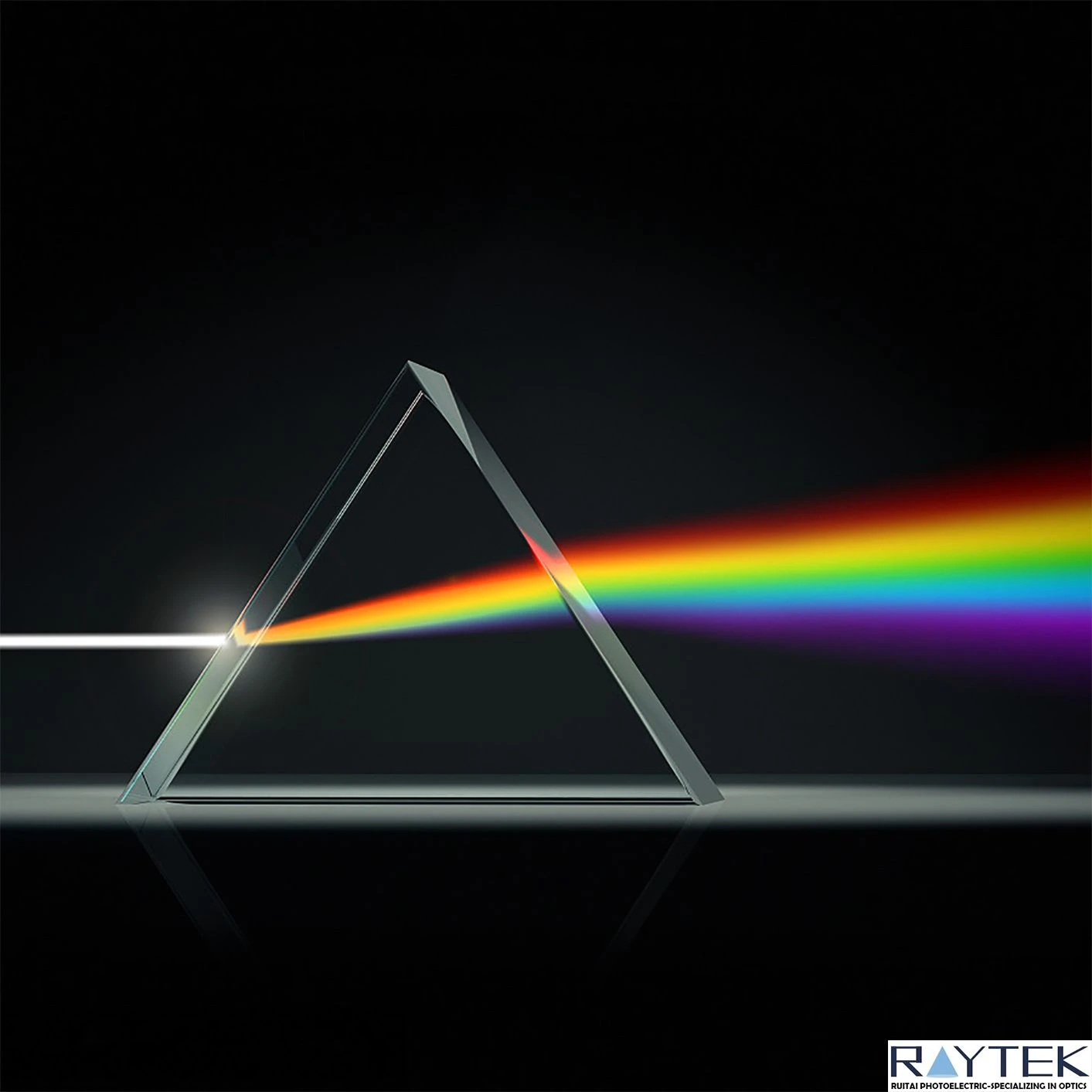

Brewster Dispersing Prism/Dispersing Prism/Triangular Prism/Optical Prism: an optical prism made from Glass. Listed geometry: brewster prisms shape. Supplied uncoated. Typical applications: The Cavity to Compensate The Dispersion of Fixed. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Optical Prism |
| Shape | Brewster Prisms |
| Coating | Uncoated |
| Application | The Cavity to Compensate The Dispersion of Fixed |
| Usage | Beam Dispersion, Beam Split, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | RAY-XS030# |
| Prism Substrates | UVFS |
| Optional I | UVFS/SF10/N-LAKL21 |
| Optional II | Equivalent UVFS/SF10/N-LAKL21 |
| Applying Fields I | Used in the cavity to compensate the dispersion of fixed cavity optical elements |
| Applying Fields II | In the external cavity to manipulate the pulse characteristics |
| Main Optical Tech Specification | Prism Shape |
| LK10 | 63.00° |
| SB10 | 69.06° |
| SF10 | 60.60° |
| Main Cooperation Materials Manufacturers | CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
Technical data
| Optional I: | UVFS/SF10/N-LAKL21 from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
|---|---|
| Optional II: | Equivalent UVFS/SF10/N-LAKL21 Made in China, C-laser own brands |
| Applying Fields I: | Used in the cavity to compensate the dispersion of fixed cavity optical elements |
|---|---|
| Applying Fields II: | In the external cavity to manipulate the pulse characteristics |
| ***** |
| Prism Shape | Brewster prism | Size Tolerance | +0/-0.25 mm |
| Prism Material | UVFS/SF10/N-LAKL21, Equivalent | Thickness Tolerance | |
| Coating Type | Uncoated | Chamfers | 0.5 mm face width |
| Damage Threshold | – | Chamfers Angle Tolerance | 45° maximum |
| Surface AccuracyIrregularity | – | Thermal limit | – |
| Surface Quality | 40-20 scratch-dig | Coefficient of thermal expansion | – |
| Surface Flatness | ≤λ/10 at 632.8 nm over the clear aperture | Apex Angle | LK10: 63.00°SB10: 69.06° SF10: 60.60° |
| Wavelength Region | – | Clear Aperture | ≥90% of face |
| OEM/ODM | Accepted | Custom Manufacturing | Available |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Uncoated”; list the band and reflectance or transmission target.
Engineering guides for this part
How parts like this are machined and finished is covered in Optical Glass Polishing for High Clarity Surfaces. Before sending a drawing, check Design Guide for Holes, Slots, and Edges in Custom Glass Parts.
FAQ
What is the Brewster Dispersing Prism/Dispersing Prism/Triangular Prism/Optical Prism made of? expand_more
It is listed as Glass. Coating: Uncoated. Other grades can be quoted if your application needs different transmission, thermal or chemical properties.
Where is this optical prism used? expand_more
Listed applications: The Cavity to Compensate The Dispersion of Fixed.
What should I include in a quote request? expand_more
Include material, geometry, surface figure, centring and edges and coating, plus quantity and a drawing if the part is custom.
