Product type: Optical Windows. Application: Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc. Model: OL-0293.
Overview

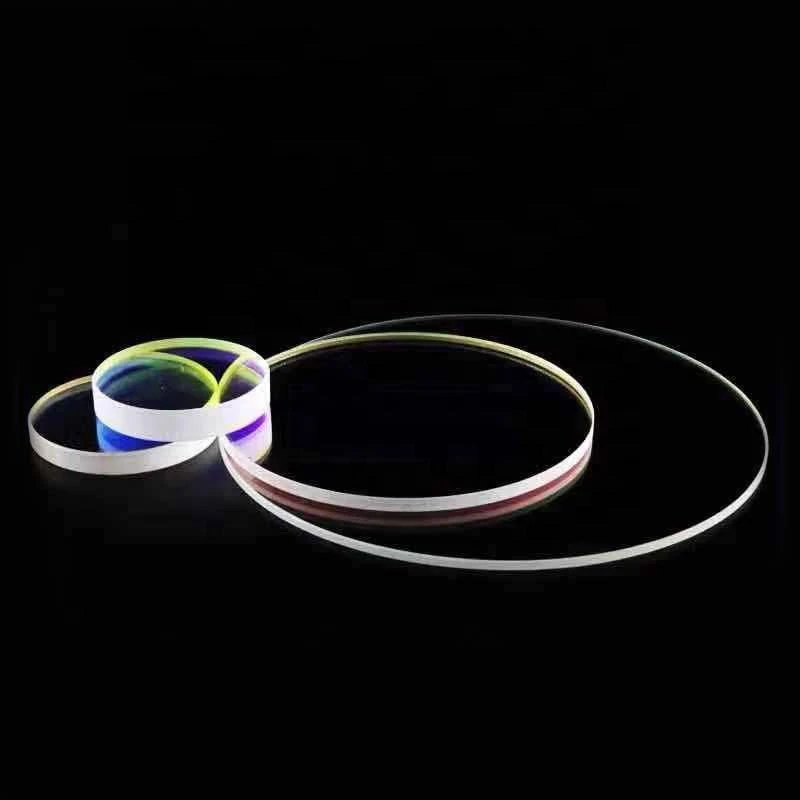

Calcium Fluoride (CaF2) Optical Windows UV Window Laser Lens Optical Instrument Optical Glass is an optical lens in Optical Glass (Sappire substrate). Listed geometry: thickness 2-3.2mm or Custom Manufacturing, single-lens shape. Optical / electrical data: wavelength 150-5000nm, transmittance >95%. Supplied uncoated; surface quality 40-20 Scratch-Dig or Custom Manufacturing. Listed for Lighting, Medical, Optical, Photography and Laser applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Substrate | Sappire |
| Type | Optical Windows |
| Shape | Single-lens |
| Thickness | 2-3.2mm or Custom Manufacturing |
| Wavelength Range | 150-5000nm |
| Transmittance | >95% |
| Coating | Uncoating |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography, Laser, Astronomy, Imaging, Detection, etc |
| Model NO. | OL-0293 |
| Lenses Color | Clear |
| Main Characteristics | Sapphire, Sapphire windows,Sapphire materials, Sapphire optical materials |
| Supplier | C-Laser (Taicang) Material Technology Co., Ltd. |
Technical data
| Items | Value | Value |
| Tensile strength | 40,000 – 60,000 psi (design criterion) | 0.27 – 0.41 GPa |
| Flexural strength | 70,000 -130,000 psi (design criterion) | 0.48 – 0.89 GPa |
| Young's Modulus, E (25 °C)(Modulus of Elasticity) | 50 x 106 psi | 345 GPa |
| Compressive Modulus, K | 55 x 106 psi | 379 GPa |
| Flexural Modulus (Modulus of Rupture) | 52 x 106 psi | 358 GPa |
| Shear Modulus, G (Modulus of Rigidity) | 21.5 x 106 psi | 148 GPa |
| Bulk Modulus, k (Volumetric Modulus of Elasticity) Poisson's Ratio | 35 x 106 psi0.29 | 241 GPa |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Uncoating”; list the band and reflectance or transmission target.
Engineering guides for this part
For material grades and coating options, see Fused Silica Windows for UV and Laser Optical Systems. How parts like this are machined and finished is covered in Flat Glass Polishing Process for Precision Substrates. For an application example, read Infrared Window Glass for Smart Home Appliance Sensors. Before sending a drawing, check Fused Silica Refractive Index: Key to Optical Design Improvement. A related standard product is Infrared Windows.
