Product type: Neutral Density Filter. Application: Lighting, Medical, Optical, Photography. Model: ND010.
Overview

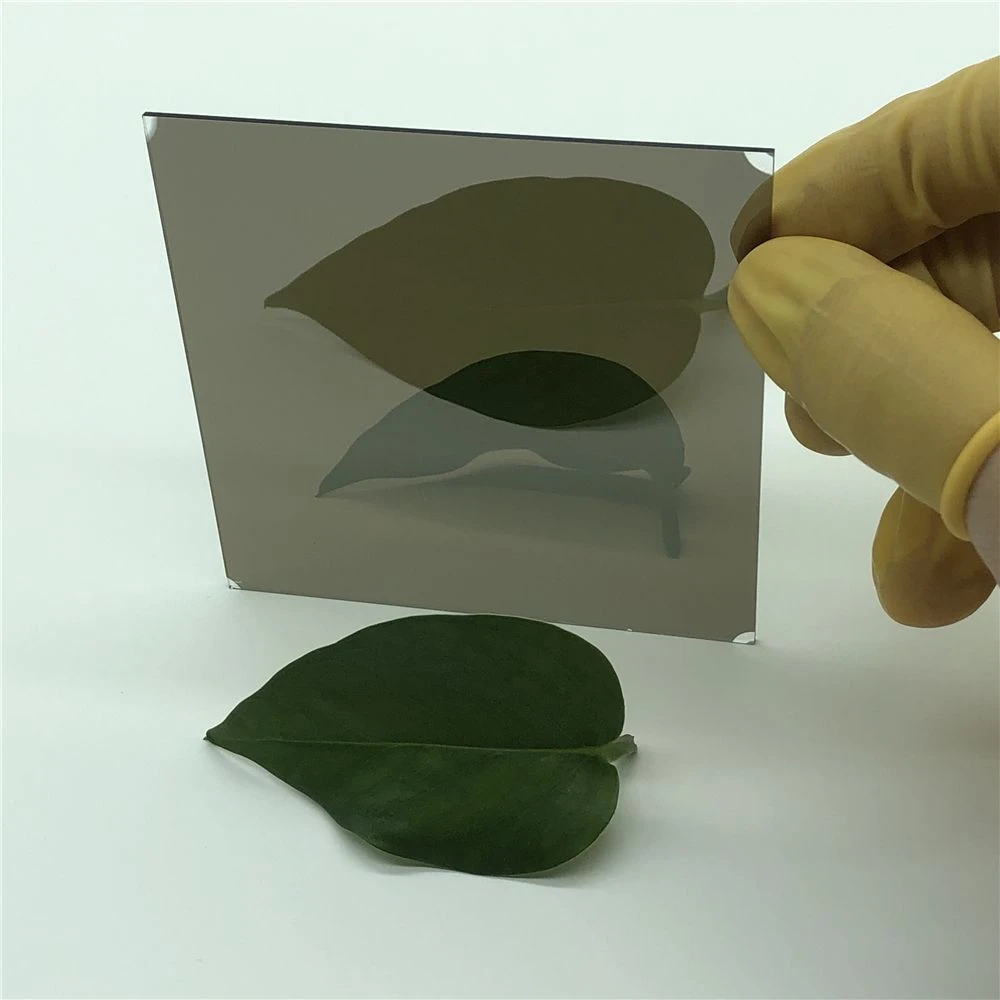

Camera Lens Filter Visible Light Near Infrared Optical Glass Neutral Density ND Filter: a neutral density filter made from Glass. Listed geometry: size 5~120mm or Custom, thickness 1mm-2mm. Optical / electrical data: wavelength 400-1100nm or Custom. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Neutral Density Filter |
| Shape | Customized |
| Size | 5~120mm or Custom |
| Wavelength | 400-1100nm or Custom |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | ND010 |
| Thickness Range | 1mm-2mm |
| Color | Transparent |
| Principle | Neutral-type Filter |
| Angle of incidence | 0° |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Surface quality | 60-40 |
|---|---|
| Angle of incidence | 0 degree |
| Wavelength | 400-1100nm or custom |
| Transmittance | Tavg=12.5% or custom |
| Dimension | 24mm x 18mm or custom |
| Thickness | 0.55mm or custom |
What to specify when you request a quote
- Spectral target — listed as “400-1100nm or Custom”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “5~120mm or Custom”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
