Product type: Color Filter. Application: Optical and Photographic Instrument. Model: JS-EXS-001.
Overview

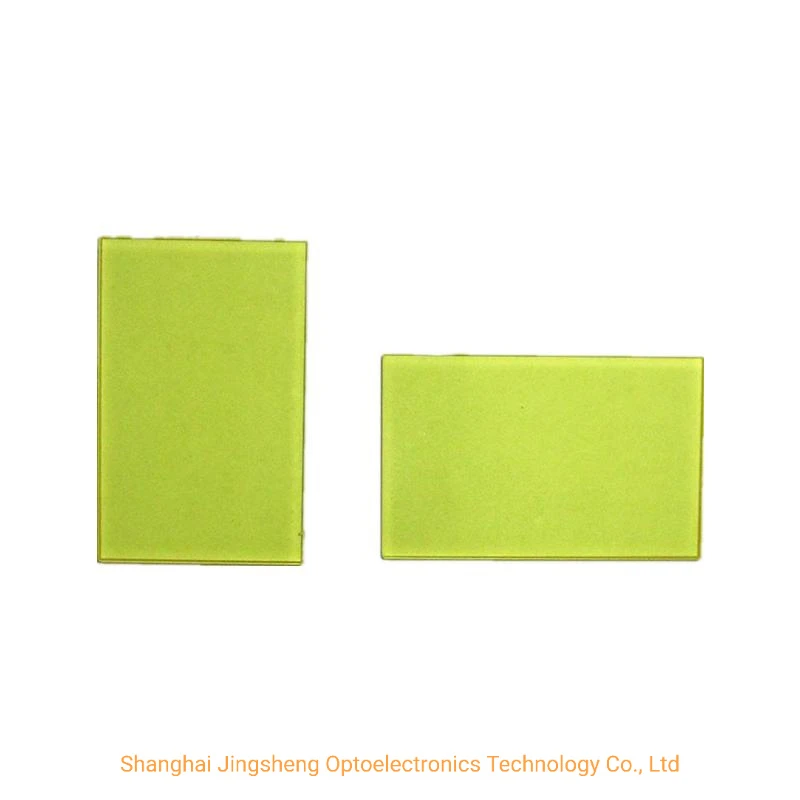

Cheap Iad Hard Coating Processing Wavelength 550/590nm Optical Dichroic Glass Filter is a dichroic filter made from Glass. Optical / electrical data: wavelength 490±5nm, bandwidth 20-25nm. Surface quality 60-40 40-20. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Cwl | 490±5nm |
| Fwhm | 20-25nm |
| Surface Quality | 60-40 40-20 |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | JS-EXS-001 |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 45° |
| Use | Optical and Photographic Instrument |
| Packaging& Shipping | Inner packing——-special protective packing for optical products. |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
What to specify when you request a quote
- Spectral target — listed as “490±5nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “45°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — listed as “60-40 40-20”; quote scratch-dig for imaging paths.
Engineering guides for this part
For material grades and coating options, see Dichroic Filter Glass: Selecting Substrates for Precision Optical Separation. For an application example, read Dichroic Filter Glass for Smart Appliance Lighting Modules. A related standard product is Dichroic Filter.
