Product type: Convex Lens. Application: Lighting, Medical, Optical, Photography. Model: AW313.
Overview

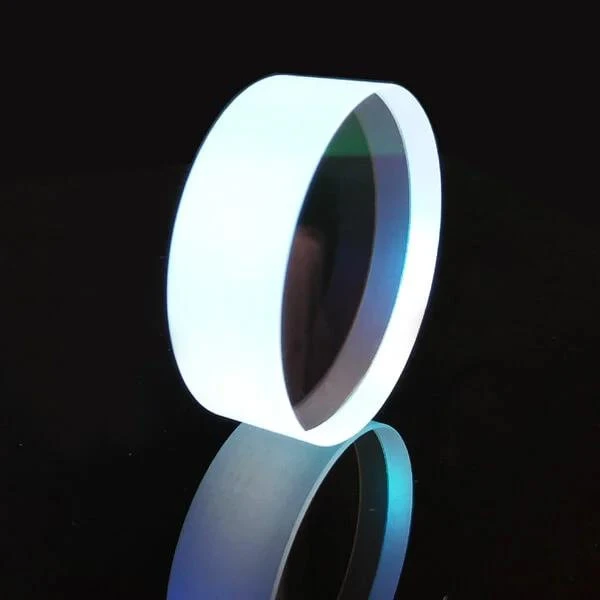

Cost-Efficient OEM Optical Glass Glued Triplet Lenses Achromatic Lens is an optical lens made from Optical Glass. Listed geometry: diameter 0/-0.1, size Customized, cylindrical shaped lens shape. Optical / electrical data: wavelength 632.8nm, transmittance 90%-95%. Surface quality 40/20, 60/40. Listed for Lighting, Medical, Optical and Photography applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Convex Lens |
| Shape | Cylindrical Shaped Lens |
| Transmittance | 90%-95% |
| Surface Quality | 40/20, 60/40 |
| Clear Aperture | >90% |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | AW313 |
| Lenses Color | Colored |
| Focal Length Tolerance | < ± 1% |
| Thickness Tolerance | Thickness Tolerance ± 0.1 |
| Eccentricity | 3′ |
| Designed Wavelength | 632.8nm |
| Scratch/Dig | 60/40 |
| Diameter Tolerance | 0/-0.1 |
| Coating Coating | Ar or Bbar |
| Dimensions | Customized |
| Structure | round |
| for Image | cameras, CCTVs, projectors, Optical Prism for Camera, digital camcorders, CCD lenses and various optical equipment; |
| Science and technology | telescopes, microscopes, levels, fingerprints, gun sights, solar energy converters and various measuring instruments; |
| Medical equipment | cystoscope, gastroscope and various laser treatment equipment. |
| Applications | 1 . Correcting Astigmatism |
| Supplier | Fujian Allwin Technology Co., Ltd. |
Technical data
| Store Room | |||||||
| Serial No. | Parts no. | Material | DIA | R1 | R2 | TC | F |
| 1 | D15F6530 | H-ZF6 | 15 | -27.542 | -23.605 | 2.8 | -6530 |
| D15F6530 | H-ZK11 | 15 | 23.605 | 23.605 | 7.8 | -6530 | |
| 2 | D36F1867 | H-ZF6 | 36 | 110.79 | -29.054 | 3.04 | -1867 |
| D36F1867 | H-QK3L | 35.8 | 29.054 | 279 | 10 | -1867 | |
| 3 | D43F111.5 | H-FK61 | 43 | 27.233 | -109.04 | 13 | -111.5 |
| D43F111.5 | H-QF1 | 43 | 109.043 | -12.511 | 5 | -111.5 | |
| 4 | D17F85 | H-ZK6 | 16.8 | 21.2 | 41.498 | 5.4 | -85 |
| D17F85 | H-ZF12 | 17 | -41.498 | -16.38 | 6.8 | -85 | |
| 5 | D18F49 | H-K9L | 18 | 21.53 | 33.989 | 8 | -49 |
| D18F49 | H-ZF13 | 18 | -33.989 | -16.666 | 8 | -49 |
| Material | BK7 ,Fused silica, sapphire |
|---|---|
| Coating | as required |
| Structure: | round |
| Surface Quality: | 40/20, 60/40 |
| Diameter | 0.5mm~20mm |
| Clear Aperture | Over 90% |
| Tolerance of FL | ±2% |
| Material Type | H-K9L/UV Fused Silica |
|---|---|
| Customized Support | OEM & ODM |
| Model Number | Dove Prism |
| Application | digital equipment, science and technology, medical instruments and other fields. |
| Scratch/Dig | 40/20 |
| Dimension Tolerance | +/-0.05 to 0.1mm |
| Angle Tolerance | ±1 |
| Flatness Tolerance | 1/4 lambda or as needed |
| Coating | AR,AF,AL,black print or as needed |
| Chamfer | optical level as needed |
| Transmission | >90% higher with AR coating |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “< ± 1%”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40/20, 60/40”; quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “3′”; state centration and edge chamfer.
- Coating — listed as “Ar or Bbar”; list the band and reflectance or transmission target.
