Product type: Bandpass Filter. Application: Lighting, Medical, Laser Module. Model: BPF004.
Overview

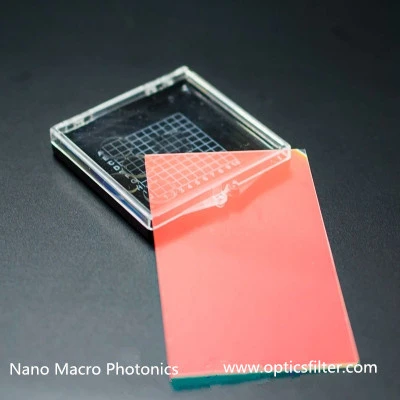

Customizable Dielectric Hard Coating Optical Glass 650nm Bandpass Filter is a bandpass filter made from Glass. Listed geometry: thickness 1-5mm or Custom. Optical / electrical data: wavelength 650nm, bandwidth Custom. It is used in Lighting, Medical and Laser Module. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Bandpass Filter |
| Shape | Customized |
| Cwl | 650nm |
| Fwhm | Custom |
| Usage | Lighting, Medical, Laser Module |
| Thickness Range | 1-5mm or Custom |
| Model NO. | BPF004 |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 0° |
| Blocking Range | 350-1100nm |
| Optical Density | Od2-Od6 |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Central Wavelength | 650nm±5nm |
|---|---|
| FWHM | 40±5nm or custom |
| Product size | 80x80mm(square or round customizable) |
| Transmission at CWL | >90%(According to the customers demand) |
| Blocking | >OD4-OD6 UV-NIR |
| Product material | Optical glass |
| Transport package | Vacuum package |
| Surface Quality | 60-40,40-20 |
| Application | Medical,Optical Instruments,Barcode Scanning etc |
What to specify when you request a quote
- Spectral target — listed as “650nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — listed as “350-1100nm”; give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “0°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “1-5mm or Custom”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
