Application: Home Appliance, Electronics & Instruments.
Overview

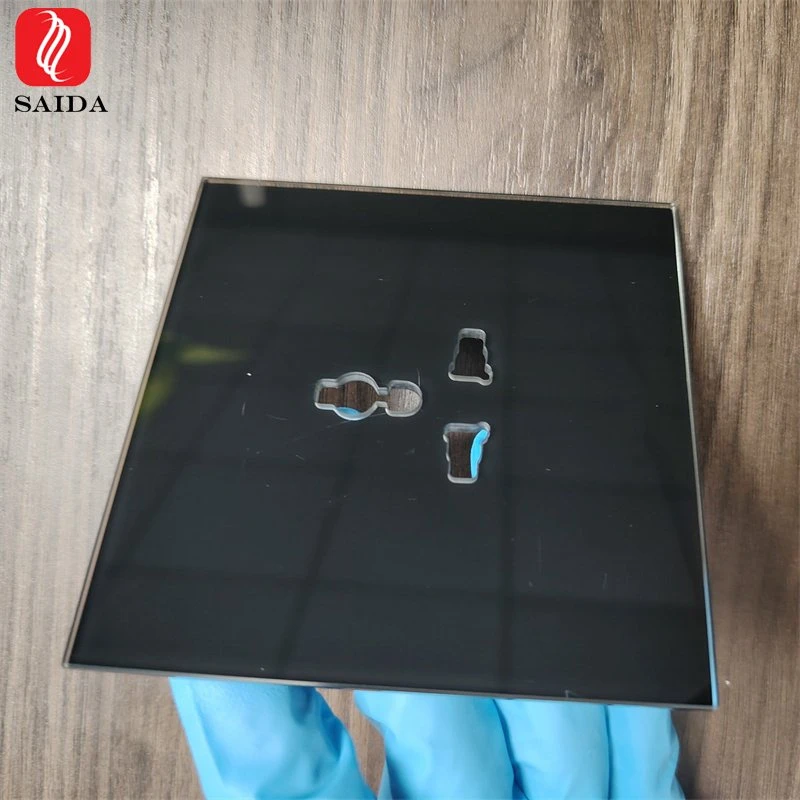

Customized Black Color Flat Polish Edge 3 Holes Socket Panel Tempered Glass: a drilled / perforated glass plate. Listed geometry: flat shape. Flatness Conforming Article. Typical applications: Home Appliance and Electronics & Instruments. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Shape | Flat |
|---|---|
| Flatness | Conforming Article |
| Usage | Home Appliance, Electronics & Instruments |
| Appearance | Flat Tempered |
| Standard | GB/T 9963-1998 |
| Steel Degree | Tempered Glass |
| Thickness of Flat Tempered Glass | From 0.5mm to 12mm |
| Thickness of Curve Tempered Glass | From 0.5mm to 12mm |
| Fragment State | Ⅱ |
| Technics | Chemical Tempered |
| Color | Customized |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Type | Customized Black Color Flat Polish Edge 3 Holes Socket Panel Tempered Glass |
|---|---|
| Raw Material | Crystal White/Soda Lime/Low Iron Glass |
| Size | Size can be customized |
| Thickness | 0.33-12mm |
| Tempering | Thermal Tempering/Chemical Tempering |
| Edgework | Flat Ground (Flat/Pencil/Bevelled/Chamfer Edge are available) |
| Hole | Round/Square (Irregular hole are available) |
| Color | Black/White/Silver (up to 7 layers of colors) |
| Printing Method | Normal Silkscreen/High Temperature Silkscreen |
| Coating | Anti-Glaring Anti-Reflective Anti-Fingerprint Anti-Scratches |
| Production Process | Cut-Edge Polish-CNC-Clean-Print-Clean-Inspect-Pack |
| Features | Anti-scratches/Waterproof/anti-fingerprint/anti-fire/easy to clean/high-pressure scratch resistant |
| Keywords | Anti Fingerprints Flat Switch Glass Panel Easy Clean-up Switch Glass Panel Intelligent Touch Switch Tempered Glass Panel |
What to specify when you request a quote
- Material — name the glass or quartz grade.
- Outline and thickness — listed as “From 0.5mm to 12mm”; give outline, thickness and tolerances.
- Holes, slots and features — listed as “Flat”; dimension every hole and its position tolerance on the drawing.
- Edges — state edge finish and chamfer.
- Surface — listed as “Conforming Article”; state polish and flatness where they matter.
