Product type: Flat Lens. Application: Medical, Optical, Photography, Camera.
Overview

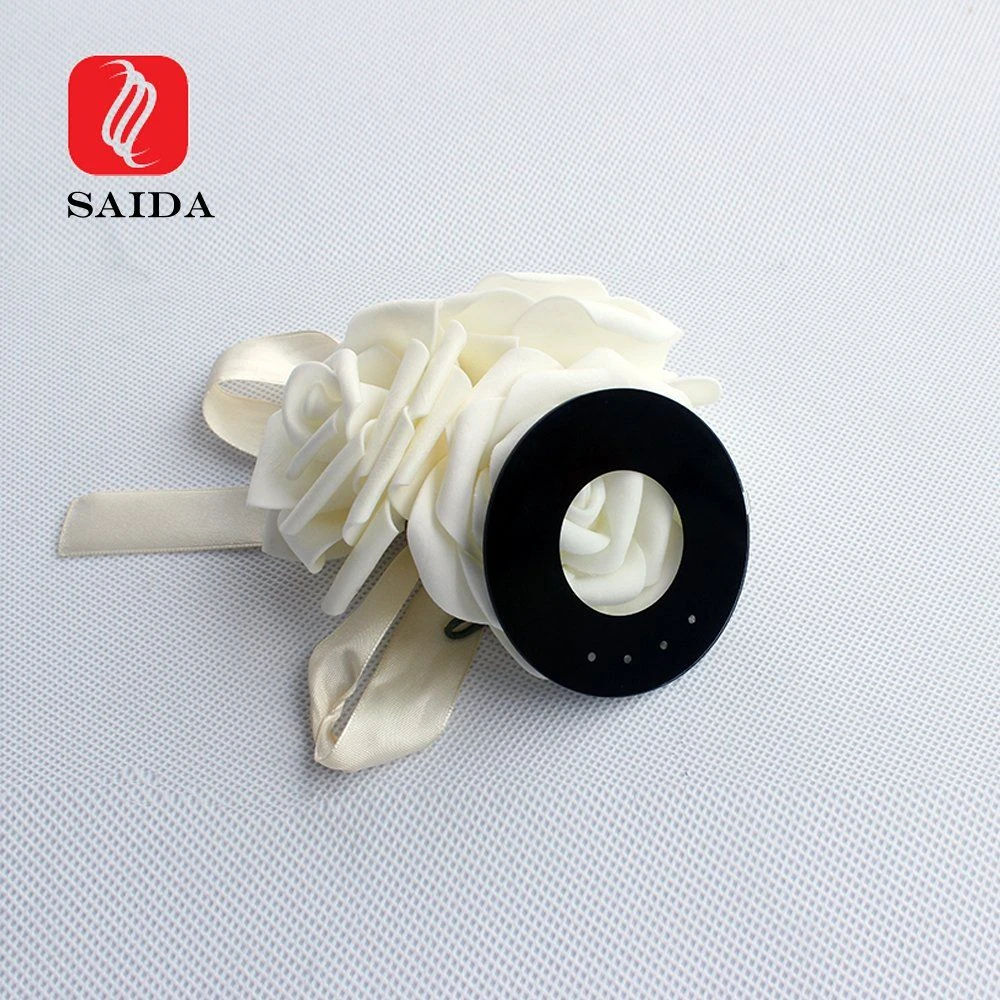

The Customized Black Color Silkscreen Printed Camera Lens Tempered Glass Protection Glass is supplied as a display / touchscreen cover glass made from Optical Glass. Listed geometry: flat lens shape. Optical / electrical data: transmittance 90%-95%. Coating: UV. Listed for Medical, Optical, Photography and Camera applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Flat Lens |
| Shape | Flat Lens |
| Transmittance | 90%-95% |
| Coating | UV |
| Usage | Medical, Optical, Photography, Camera |
| Lenses Color | Black-Clear |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
What to specify when you request a quote
- Glass type and thickness — listed as “Optical Glass”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “UV”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Flat Lens”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — listed as “90%-95%”; give transmission, haze or gloss targets for the viewing area.
Engineering guides for this part
For material grades and coating options, see AR-Coated Glass Materials for High-Transmission Optical Parts. How parts like this are machined and finished is covered in Precision AR Coating Process for Optical Glass Windows. For an application example, read AR Glass for Appliance Touch Screens: Selection & Integration. A related standard product is AR Anti-Reflection Optical Window.
