Product type: Color Filter. Application: Medical, Optical, Photography, Machine Vision, Biochemical Analysis.
Overview

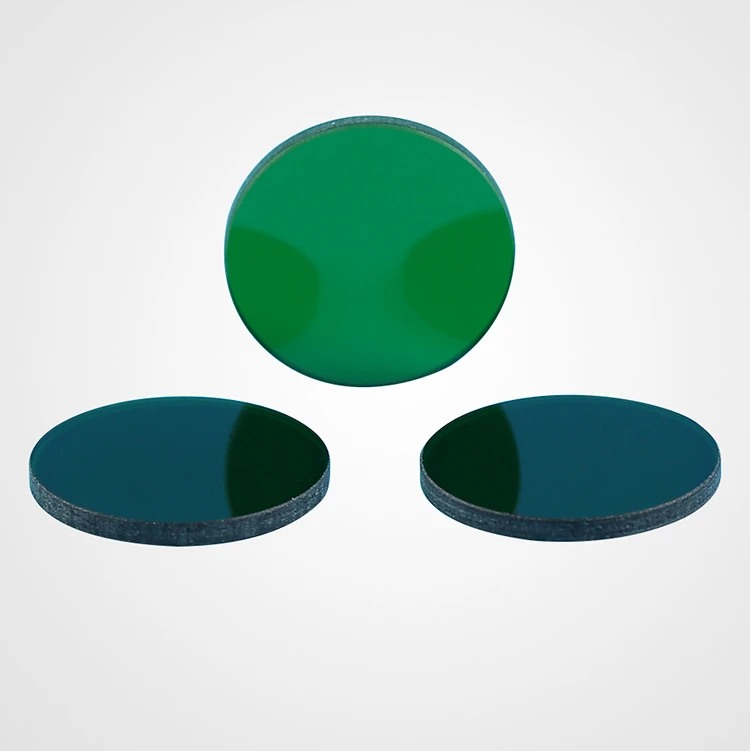

Customized Optical Filter Cwl 480nm Optical Glass Narrowband Filter for Astrophotography: a bandpass filter made from Glass. Listed geometry: thickness Customized. Optical / electrical data: wavelength 355-1064nm. It is used in Medical, Optical, Photography, Machine Vision and Biochemical Analysis. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Cwl | 355-1064nm |
| Usage | Medical, Optical, Photography, Machine Vision, Biochemical Analysis |
| Thickness Range | Customized |
| Color | Green |
| Principle | Cut-off Filter |
| Angle of incidence | 45° |
| Name | Narrowband Filter |
| Key | Optical Filter |
| Thickness Tolerance | ±0.1mm |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
Technical data
| Product name | Narrowband filter |
|---|---|
| Material | K9,BK7,B270,quartz,Float glass,D263T,Fused silica,etc. |
| Wavelength | Customized |
| CWL Tolerance | +/-2nm-5nm |
| Size | Customized |
| Thickness tolerance | ±0.1mm |
| Transmittance | Above 90% |
| Cut off depth | OD2-OD4 |
| Application | It is widely used in machine vision, biochemical analysis, optical instruments, spectrum measurement and other fields. |
What to specify when you request a quote
- Spectral target — listed as “355-1064nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “45°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “Customized”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
