Product type: Customized Quartz. Application: Chemical, Metallurgy, Casting, Glass.
Overview

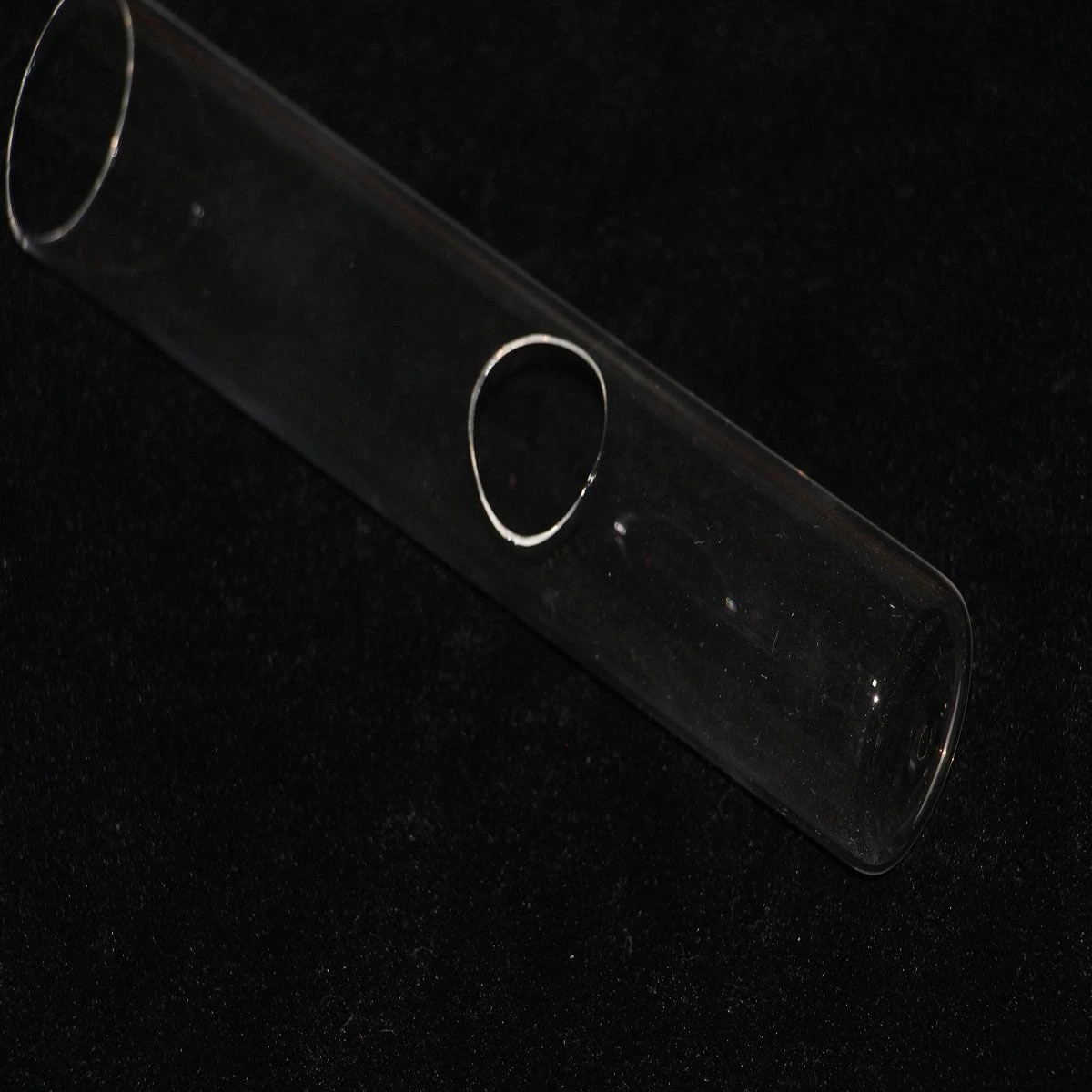

Customized Perforated Quartz Glass Sleeve: a precision glass tube / rod. Listed geometry: size Can Be Customized, can be customized shape. Surface quality 40/60; temperature 1200. Listed for Chemical, Metallurgy, Casting and Glass applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Customized Quartz |
|---|---|
| Shape | Can Be Customized |
| Size | Can Be Customized |
| Surface Quality | 40/60 |
| Application | Chemical, Metallurgy, Casting, Glass |
| Purity | 99.99% |
| Working Temperature | 1200 |
| Density | 2.21g/cm3 |
| Soft Point | 1730 Degree |
| Thermal Conductivity | 1.4W/M.Degree |
| https | //dehuilighting0301.en.made-in-china.com/product-list-1.html |
| Supplier | DONGHAIXIAN DEHUI LIGHTING APPLIANCE CO., LTD. |
Technical data
| Density | 2.21×103kg/m3 |
|---|---|
| Hardness | 580KHN100 |
| Softening Point | 1700ºC |
| Annealing Point | 1210 Degree |
| Thermal Conductivity | 1.4W/M.Degree |
| Specific Heat | 690j/Kg,Degree |
| Compression Strength | >1.1×109Pa |
| Cofficient of Thermal Expansion(20ºC-300ºC) | 5.5×10-7cm/cmºC |
What to specify when you request a quote
- Material — name the glass (borosilicate 3.3, quartz, soda-lime).
- OD, ID and wall — listed as “Can Be Customized”; give outer and inner diameter or wall and their tolerances.
- Length and ends — give length, end finish and any closed or flared ends.
- Straightness and bore — state straightness and bore tolerance for precision tubing.
