Product type: Flat Lens. Application: Lighting, Medical, Optical, Photography. Model: NBPF.
Overview

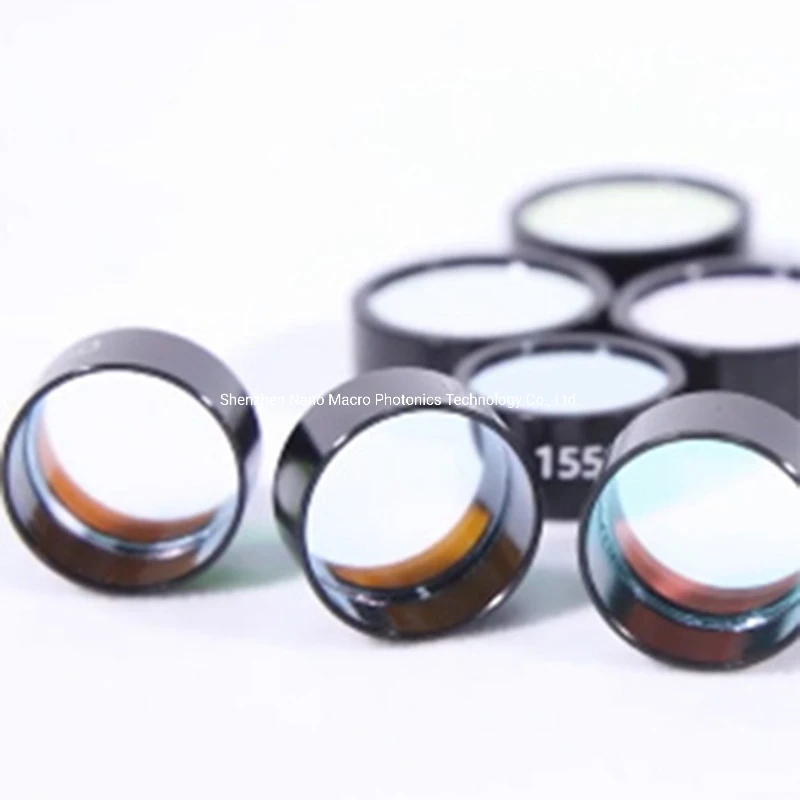

Cwl 340-1080nm Optical Glass Bandpass Filter Narrow Band Filter: a bandpass filter made from Optical Glass. Listed geometry: single-lens shape. Optical / electrical data: wavelength 340-1080nm, bandwidth 20nm or Custom, transmittance 90%-95%. Coating: EMI. It is used in Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Flat Lens |
| Shape | Single-lens |
| Cwl | 340-1080nm |
| Fwhm | 20nm or Custom |
| Transmittance | 90%-95% |
| Coating | EMI |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | NBPF |
| Lenses Color | Clear |
| Cwl Tolerance | +-3nm |
| Blocking Range | 200-1100nm |
| Optical Density | Od>2~6 |
| Optical Aperture | Customize |
| Flat Polish | 60-40 |
| OEM Printing | Okay |
| OEM Packing | Okay |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Product Name | Optical Bandpass Filter Narrow Band Filter CWL 340-1080nm |
|---|---|
| CWL | 340-1080nm |
| FWHM | 20nm or custom |
| Material | Glass |
| Transmittance | T>90% |
| Mount thickness | 5.5mm |
| Uage | Fluorometer/Optical |
| Size | 5-80mm or custom |
| Shape | Round/Square/custom |
| Surface Quality | 60/40 Scratch/Dig |
What to specify when you request a quote
- Spectral target — listed as “340-1080nm”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — listed as “200-1100nm”; give the blocking range and optical density (OD) the system needs.
- Angle of incidence — interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Optical Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
