Product type: Triplet Lenses. Application: Lighting, Medical, Optical, Photography, Astronomy.
Overview

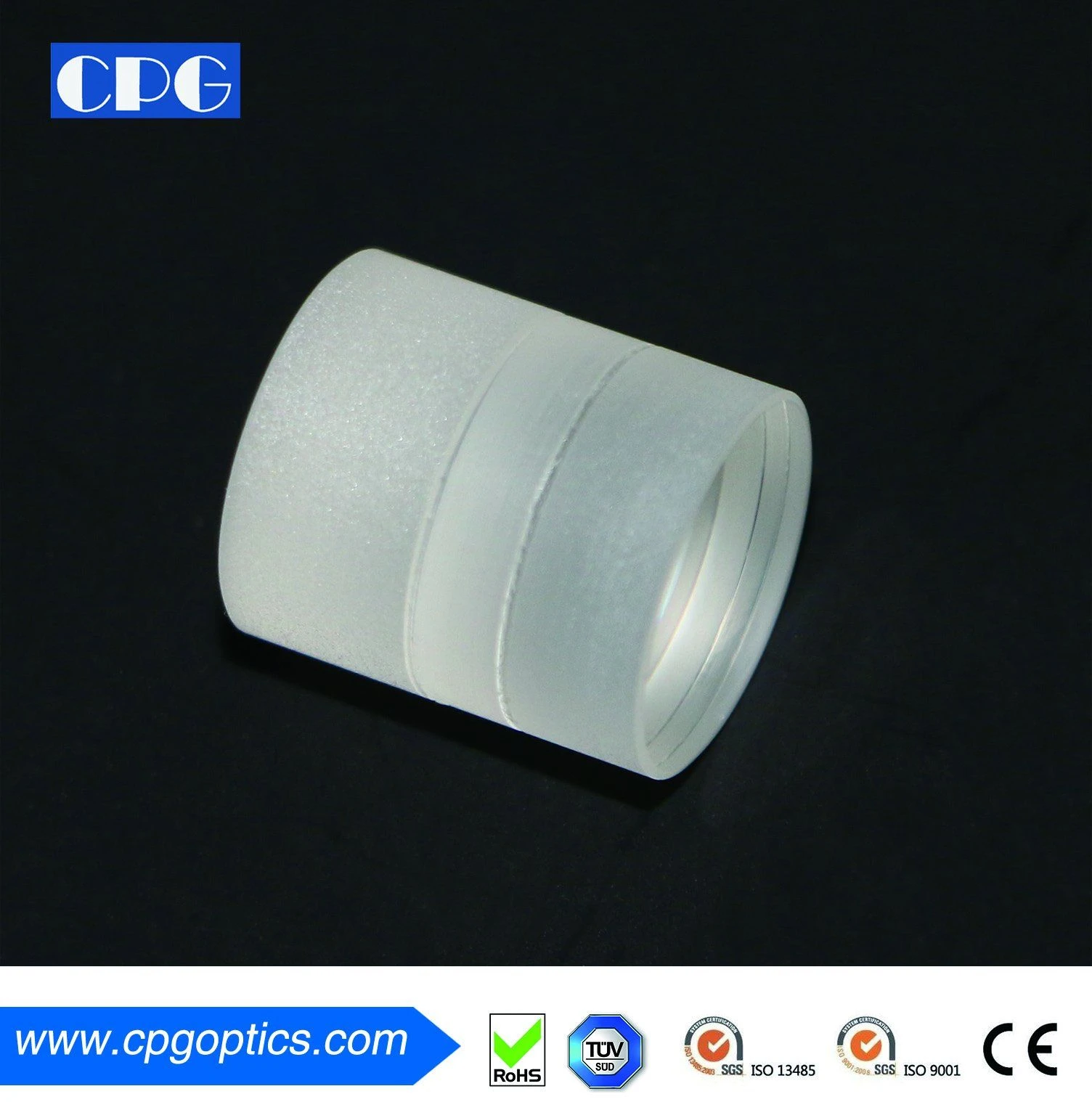

The D37mm (BBAR) Coated Achromatic Triplet Optical Lenses is supplied as an optical lens made from Optical Glass. Listed geometry: diameter 37.0332+0.0000/-0.0500mm(S-BSM2), triplet lenses shape. Optical / electrical data: transmittance 90%-95%. Coating: Anti-Reflection. Listed for Lighting, Medical, Optical, Photography and Astronomy applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Triplet Lenses |
| Shape | Triplet Lenses |
| Diameter | 37.0332+0.0000/-0.0500mm(S-BSM2) |
| Transmittance | 90%-95% |
| Coating | Anti-Reflection |
| Clear aperture | >90% |
| Usage | Lighting, Medical, Optical, Photography, Astronomy |
| Lenses Color | Clear |
| Specifications | Items |
| Center thickness | 20.6756+/-0.1500mm |
| S6 SAG | 0.4572+/-0.1000mm |
| ROC1 | 44.3357mm+/-0.5%,CX |
| ROC2=ROC3 | 32.87776mm+/-0.5%,Doublet |
| ROC4=ROC5 | 27.45232mm+/-0.5%,Doublet |
| ROC6 | 239.67948mm+/-0.5%,CX |
| All edges | fine ground |
| Centerness | <2arcmin per lens |
| Chamfer | 0.254-0.508mm(FW)x45deg |
| Standard | MIL-PRF-13830B |
| Supplier | CPG OPTICS LIMITED |
Technical data
| Items | Description | |
| Triplet Lens | Material: | Ohara S-BSM2 |
| Ohara S-NPH3 | ||
| Ohara S-LAL54 | ||
| Diameter: | 37.0332+0.0000/-0.0500mm(S-BSM2) | |
| 37.0332-0.0500/-0.1500mm(S-NPH3) | ||
| 31.4960+0.0000/-0.0500mm(S-LAL54) | ||
| Center thickness: | 20.6756+/-0.1500mm | |
| S6 SAG: | 0.4572+/-0.1000mm | |
| ROC1: | 44.3357mm+/-0.5%,CX | |
| ROC2=ROC3: | 32.87776mm+/-0.5%,Doublet | |
| ROC4=ROC5: | 27.45232mm+/-0.5%,Doublet | |
| ROC6: | 239.67948mm+/-0.5%,CX | |
| Surface quality: | S1&S2&S3&S4&S5&S6:60-40 | |
| All edges:fine ground | ||
| Centerness: | <2arcmin per lens | |
| <3arcmin per assembly | ||
| Clear aperture: | >90% | |
| Chamfer: | 0.254-0.508mm(FW)x45deg | |
| Standard: | MIL-PRF-13830B |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “37.0332+0.0000/-0.0500mm(S-BSM2)”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “fine ground”; state centration and edge chamfer.
- Coating — listed as “Anti-Reflection”; list the band and reflectance or transmission target.
