Product type: Fresnel Lens. Application: Lighting, Medical, Optical, Photography, Astronomy.
Overview

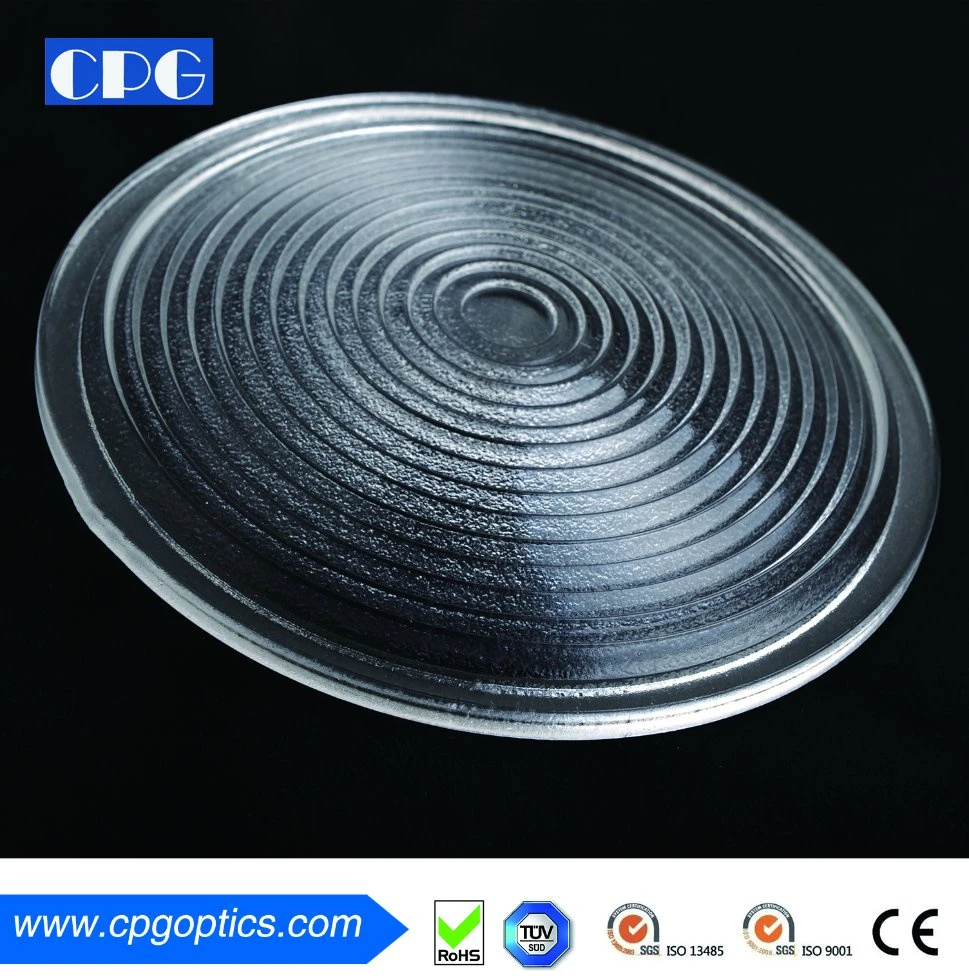

The Dia150mm Aspherically Contoured Optical Fresnel Lens is supplied as an optical lens made from Optical Glass. Listed geometry: diameter 150.0+/-0.1mm, thickness as required, single-lens shape. Optical / electrical data: transmittance >95%. Coating: HMC; surface quality as required. It is used in Lighting, Medical, Optical, Photography and Astronomy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Fresnel Lens |
| Shape | Single-lens |
| Diameter | 150.0+/-0.1mm |
| Thickness | as required |
| Transmittance | >95% |
| Coating | HMC |
| Surface quality | as required |
| Usage | Lighting, Medical, Optical, Photography, Astronomy |
| Lenses Color | Clear |
| Materials | Optical Glass or Plastic. |
| Focal length | as required |
| Ridges | as required |
| Inspections | Packaging& Shipping |
| Package detail | Optics are packed with Capacitor paper, white paper, custom-made plastic containers etc |
| Supplier | CPG OPTICS LIMITED |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “150.0+/-0.1mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “as required”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “HMC”; list the band and reflectance or transmission target.
