Product type: Thin Film Filter. Application: Lighting, Medical, Optical, Photography, Astronomy. Model: Filter.
Overview

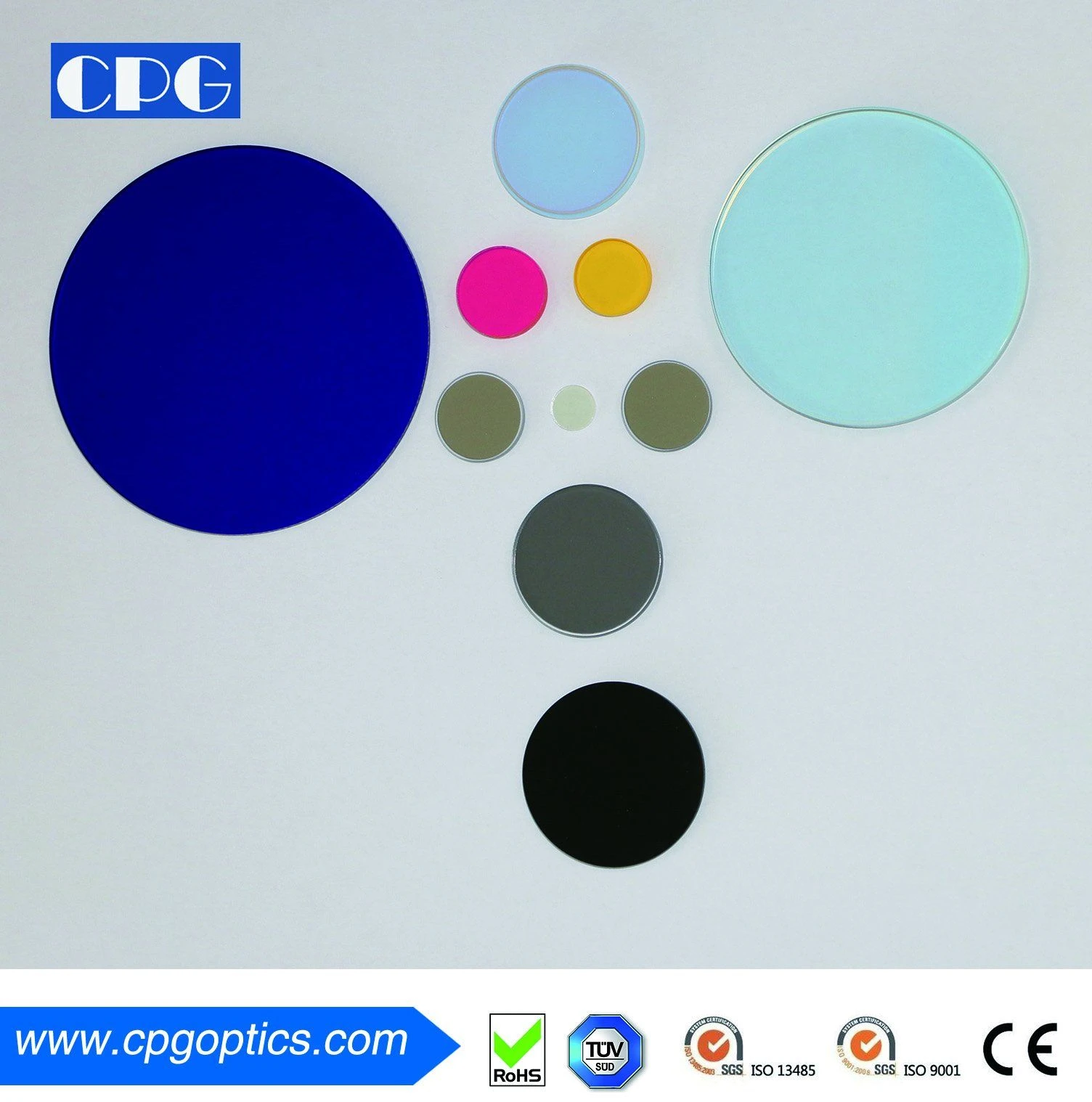

Dia21mm Multi-Layer Dielectric Coating Optical Longpass Filter: a longpass / shortpass filter made from Fused Silica. Listed geometry: diameter 21.0+/-0.1mm, thickness 3.0+0.0/-0.1mm, round shape. Coating: Multi-layer dielectric coating,extend to within at least 1.0mm from circumference,surface B; surface quality 40-20; flatness 1/4L PTV,TWD. It is used in Lighting, Medical, Optical, Photography and Astronomy. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Fused Silica |
|---|---|
| Type | Thin Film Filter |
| Shape | Round |
| Diameter | 21.0+/-0.1mm |
| Thickness | 3.0+0.0/-0.1mm |
| Coating | Multi-layer dielectric coating,extend to within at least 1.0mm from circumference,surface B |
| Surface quality | 40-20 |
| Flatness | 1/4L PTV,TWD |
| Parallelism | <20arcsec |
| Clear aperture | 1.5mm from the circumference |
| Usage | Lighting, Medical, Optical, Photography, Astronomy |
| Model NO. | Filter |
| Thickness Range | 2mm-5mm |
| Color | Transparent |
| Principle | Cut-off Filter |
| Angle of incidence | 45° |
| R1 | infinity |
| R2 | infinity |
| Chamfer | 0.2mmx45deg |
| Tavg>85%@470-1750nm,AOI | 0deg,total filter |
| Standard | MIL-PRF-13830B |
| https | //cpgoptics.en.made-in-china.com/product/gCxncWjUhhVD/China-Customized-Fluorescence-Optical-Dichroic-Longpass-Filter.html |
| Supplier | CPG OPTICS LIMITED |
Technical data
| Items | Description | |
| Filter | Material: | UV Fused Silica |
| Diameter: | 21.0+/-0.1mm | |
| Thickness: | 3.0+0.0/-0.1mm | |
| R1: | infinity | |
| R2: | infinity | |
| Flatness: | 1/4L PTV,TWD | |
| Surface quality: | 40-20 | |
| Parallelism: | <20arcsec | |
| Clear aperture: | 1.5mm from the circumference | |
| Chamfer: | 0.2mmx45deg | |
| <1.0mm,chips of edges | ||
| Coating: | Multi-layer dielectric coating,extend to within at least 1.0mm from circumference,surface B | |
| 470-2000nm,transmission waveband,surface B | ||
| 200-430nm,rejection waveband,surface B | ||
| 3%,slope factor,surface B | ||
| 450+/-10nm,cut-on wavelength,surface B | ||
| Standard: | MIL-PRF-13830B |
