Product type: Convex Lens. Application: Lighting, Medical, Optical, Photography, Astronomy. Model: Doublet lens.
Overview

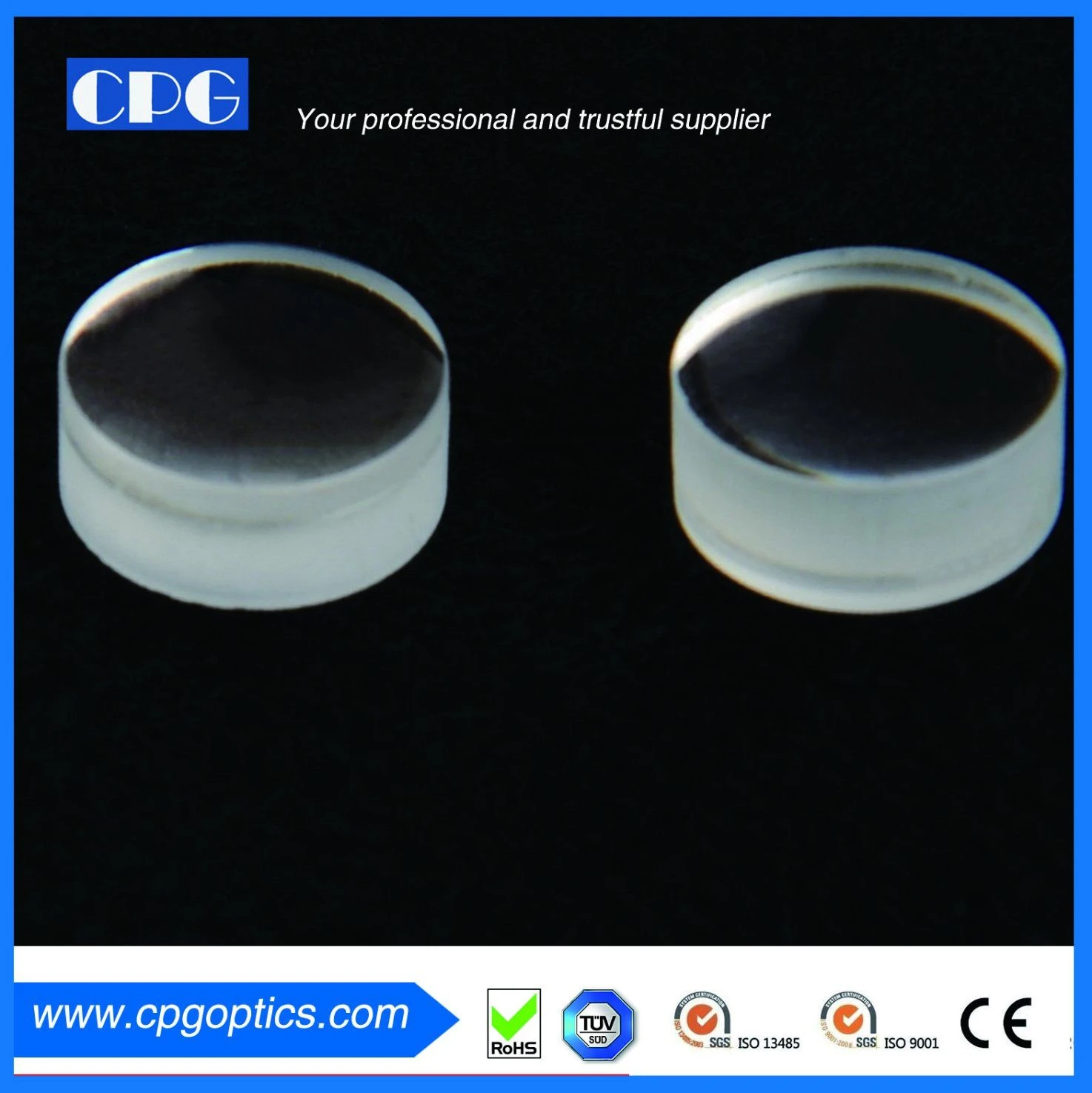

Dia25.4mm 400-700nm Ar Coated Optical Doublet Achromatic Lens: an optical lens made from Optical Glass. Listed geometry: diameter 25.4+0.0/-0.1mm, cemented shape. Optical / electrical data: transmittance 90%-95%. Coating: Anti-Reflection. Listed for Lighting, Medical, Optical, Photography and Astronomy applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Convex Lens |
| Shape | Cemented |
| Diameter | 25.4+0.0/-0.1mm |
| Transmittance | 90%-95% |
| Coating | Anti-Reflection |
| Clear Aperture | >D9.0mm |
| Usage | Lighting, Medical, Optical, Photography, Astronomy |
| Model NO. | Doublet lens |
| Lenses Color | Clear |
| Center thickness | 5.0+/-0.2mm |
| ROC1 | infinity |
| ROC2=ROC3 | 74.83+/-0.1mm CX |
| ROC4 | 74.83+/-0.1mm CX |
| Centerness | <3arcmin |
| Chamfer | <0.25mmx45deg |
| Standard | MIL-PRF-13830B |
| Supplier | CPG OPTICS LIMITED |
Technical data
| Items | Description | |
| Achromatic Lens | Material: | Schott N-FK5 |
| Schott F2 | ||
| Diameter: | 25.4+0.0/-0.1mm | |
| Center thickness: | 5.0+/-0.2mm | |
| ROC1: | infinity | |
| ROC2=ROC3: | 74.83+/-0.1mm CX | |
| ROC4: | 74.83+/-0.1mm CX | |
| Surface quality: | S1&S2&S3&S4:60-40 | |
| Centerness: | <3arcmin | |
| Clear Aperture: | >D9.0mm | |
| Chamfer: | <0.25mmx45deg | |
| Standard: | MIL-PRF-13830B |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — listed as “25.4+0.0/-0.1mm”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — quote surface figure (λ) and scratch-dig.
- Centring and edges — listed as “<0.25mmx45deg”; state centration and edge chamfer.
- Coating — listed as “Anti-Reflection”; list the band and reflectance or transmission target.
