Product type: Optical Prism. Application: Lighting, Medical, Optical, Photography. Model: RAY-LH011#.
Overview

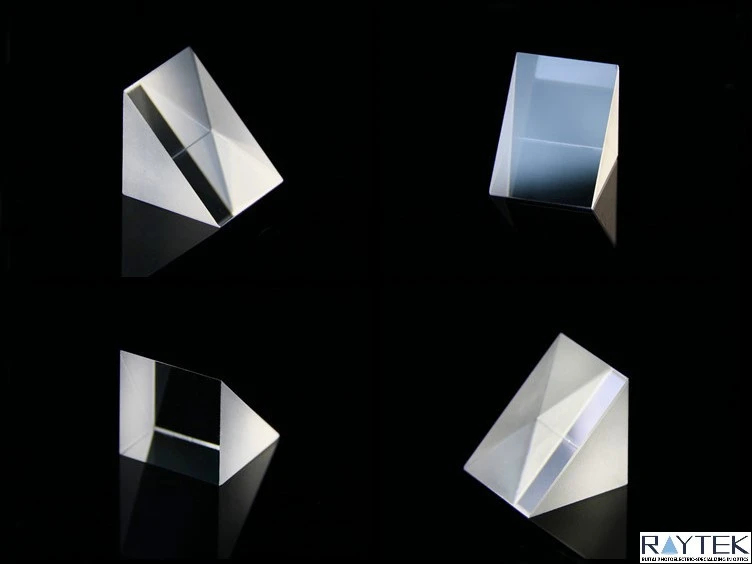

Dispersive Prism/Optical Prism/Optical Glass Prism/Glass Prism/Optical Lens is an optical prism made from Optical Glass. Listed geometry: prism shape. Optical / electrical data: wavelength 488-694 Nm/700-950nm, transmittance Customized. Coating: Dielectric Coating; surface quality 40-20 Scratch-Dig or Custom Manufacturing; flatness Lambda/10 at 632.8nm with Power Removed. Typical applications: Lighting, Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Optical Glass |
|---|---|
| Type | Optical Prism |
| Shape | Prism |
| Wavelength Range | 488-694 Nm/700-950nm |
| Transmittance | Customized |
| Surface Quality | 40-20 Scratch-Dig or Custom Manufacturing |
| Usage | Lighting, Medical, Optical, Photography |
| Model NO. | RAY-LH011# |
| Lenses Color | Clear |
| Surface Flatness | Lambda/10 at 632.8nm with Power Removed |
| Coating Type | Dielectric Coating |
| Products Name | Dispersive Prism/Optical Prism/glass prism/Optical glass prism |
| Alias | Dispersive Prism/Optical Prism/glass prism/Optical glass prism |
| Supplier | Shanghai Rui Tai Photoelectric Technology Co., Ltd. |
What to specify when you request a quote
- Material — listed as “Optical Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “40-20 Scratch-Dig or Custom Manufacturing”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — listed as “Dielectric Coating”; list the band and reflectance or transmission target.
