Application: Stage Performance, Advertising, Shopping Guide. Model: Cover glass for touch screens.
Overview

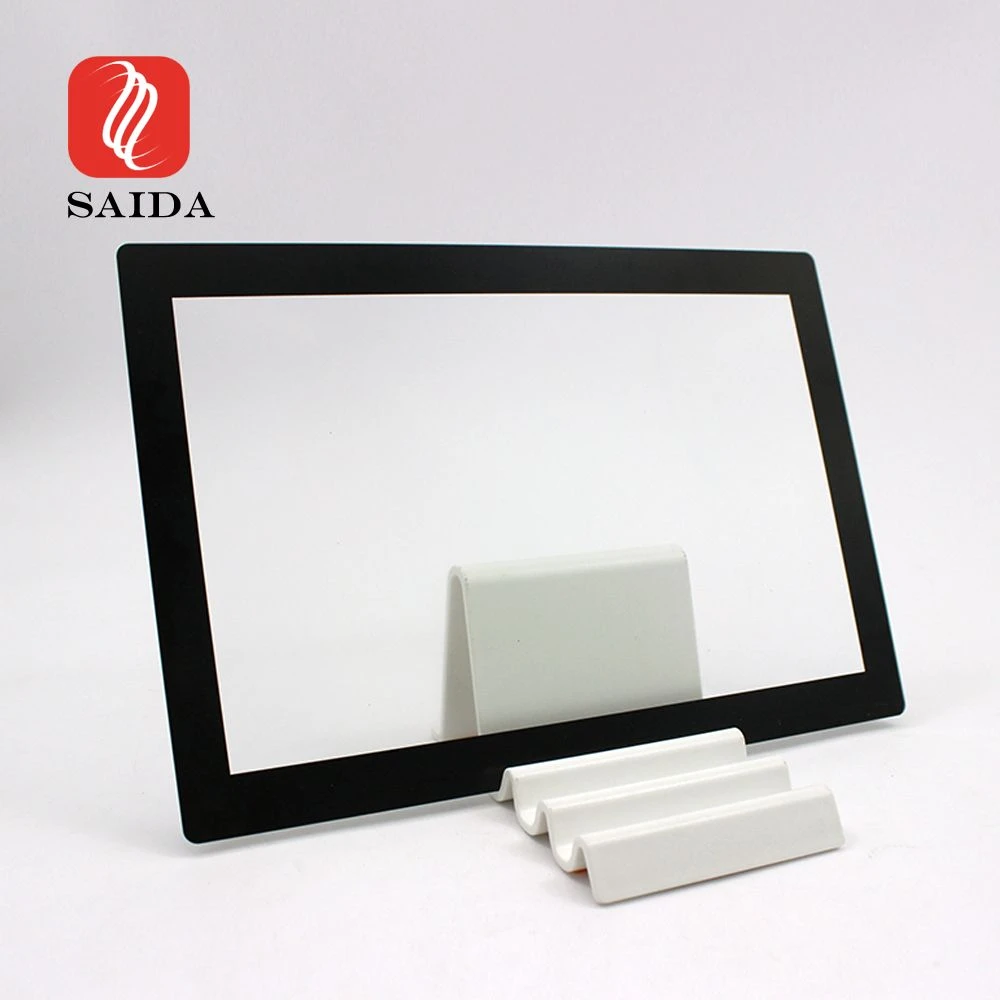

Display Protective Cover Tempered Glass for Digital HMI Touch Screen: a display / touchscreen cover glass. Listed geometry: size Customized According to Customer Drawings, thickness 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc. Optical / electrical data: transmittance >91%. Typical applications: Stage Performance, Advertising and Shopping Guide. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Transmittance | >91% |
|---|---|
| Application | Stage Performance, Advertising, Shopping Guide |
| Tube Chip Color | Full Color |
| Display Function | Video Display, Image & Text Display, Text Display |
| Model NO. | Cover glass for touch screens |
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 2R,1G,2B |
| Pixel Density | 27,777 dots / m² |
| Scanning Mode | 1/8 Scan |
| System Operating Platform | WIN2000 |
| Display Type | LED Video Display |
| IP Rating | IP43 |
| Glass Silk Screen Color | Black, Gray, White, Other Colors. |
| Glass Raw Materials | Gorilla/AGC/Dragontail/Panda Glass or Other Brand. |
| Glass Thickness | 0.55mm/0.6mm/0.7mm/0.8mm/1.0mm/1.5mm/2.0mm/3mm etc |
| Glass Shapes | Square, Round, Irregular Graphics, (Customized) |
| Glass Size | Customized According to Customer Drawings |
| Edge Processing | Straight, Round, Beveled, Stepped; Polished, CNC |
| Surface Treatment | AG/Af/Ar Coating |
| Minimum Order Quantity | 100PCS |
| Drilling | Acceptable |
| Shipping Way | Commercial Express, Sea Shipping |
| Tempered | Physical Tempered, Chemical Tempered |
| Hardness | >7h |
| Currently our products are mainly used in | 1. Consumer Electronics (smart watch, smart bracelet, tablet, glass cover, camera lens cover, game console cover, etc.) |
| Packaging | Each glass use double sided protective film and then packed by craft paper then into a wooden crate. |
| Supplier | DONGGUAN SAIDA GLASS CO.,LTD |
Technical data
| Product Name | Display protection cover toughened glass Touch Screen control panel tempered anti glare glass with silk screen printed |
|---|---|
| Material | Gorilla/AGC/Dragontail/Panda Glass or Other Brand. |
| Color | customized |
| size | as your requirement |
| shape | as your requirement |
| thinkness | 0.5mm/0.7mm/0.8mm/1.1mm/1.3mm/1.5mm/1.8mm/2mm/3mm etc. |
| Technology | Tempering (Silk printing, tempering, frosting ,drilling, edging, water-jet cutting, laminating) |
| Used | household panel, touch screen panel |
What to specify when you request a quote
- Glass type and thickness — listed as “Gorilla/AGC/Dragontail/Panda Glass or Other Brand.”; name the glass (soda-lime, aluminosilicate, borosilicate) and thickness.
- Strengthening — listed as “Physical Tempered, Chemical Tempered”; state thermal tempering or chemical strengthening and the required surface compression or impact rating.
- Printing and coatings — listed as “>7h”; list silk-screen colours, windows, and any AR / AG / AF coating.
- Outline and edges — listed as “Square, Round, Irregular Graphics, (Customized)”; send a drawing with cut-outs, holes and edge finish.
- Optical requirements — listed as “>91%”; give transmission, haze or gloss targets for the viewing area.
