Product type: Dichroic Mirror. Application: Medical, Civil, Labs. Model: DM.
Overview

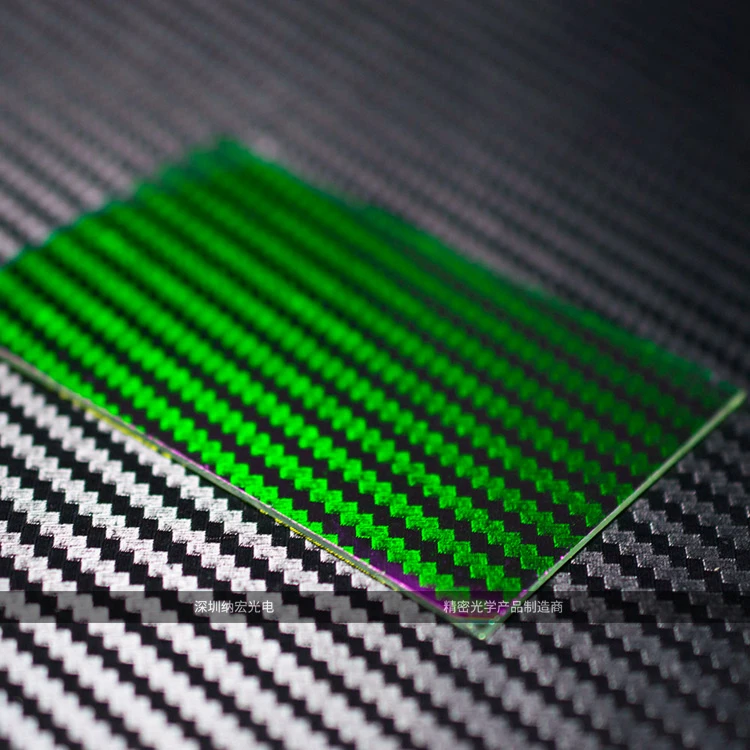

The Dm505 PCR Fam Channel Filter Optic Glass Optical Filter Dichroic Mirror is supplied as a dichroic filter made from Glass. Listed geometry: plano shape. Optical / electrical data: transmittance 505-800nm or Custom. Typical applications: Medical, Civil and Labs. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Dichroic Mirror |
| Shape | Plano |
| Application | Medical, Civil, Labs |
| Model NO. | DM |
| Transmission Range | 505-800nm or Custom |
| Reflection Range | 450-490 Nm or Custom |
| Transmission | >90% or Custom |
| Reflectance | >90% or Custom |
| Angle of Incidence | 45 Degree |
| Supplier | Nano Macro Optics Co.,Ltd. |
Technical data
| Transmission wavelength range | 520nm-700nm or custom |
|---|---|
| Transmittance | T>90% |
| Reflection wavelength range | 490nm-510nm or custom |
| Refletance | R>90% |
| Angle of incidence | 45 degree |
| Surface quality | 60/40 |
| Substrade | Optical glass |
| Dimension | Custom Option |
What to specify when you request a quote
- Spectral target — state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “45 Degree”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
