Product type: Color Filter. Application: Medical, Optical, Photography.
Overview

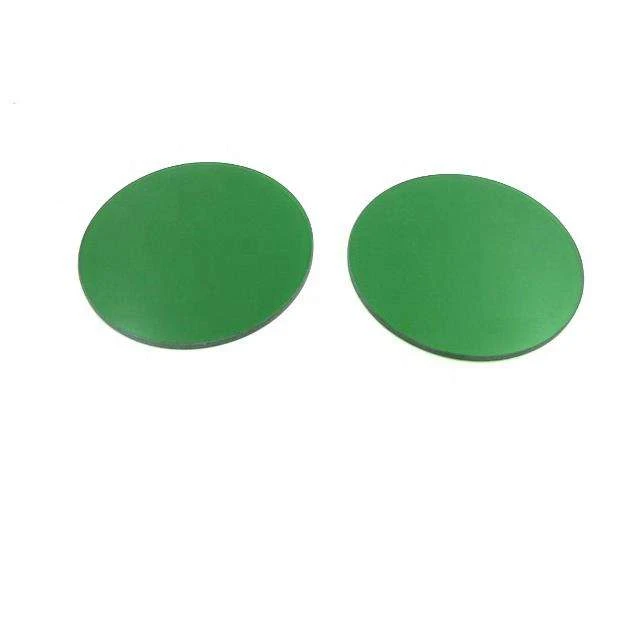

Factory Customize Round Lb1 Vg9 IR Cut Optical Filters Lb16 Green Filter Glass is a UV / IR cut filter made from Glass. Listed geometry: thickness Customized. Optical / electrical data: wavelength Customized. Typical applications: Medical, Optical and Photography. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Color Filter |
| Shape | Customized |
| Cwl | Customized |
| Usage | Medical, Optical, Photography |
| Thickness Range | Customized |
| Color | Black |
| Principle | Cut-off Filter |
| Angle of incidence | 45° |
| Name | Infrared Filter |
| Key | Optical Filter |
| Thickness Tolerance | ±0.1mm |
| Use | Optical and Photographic Instrument |
| Supplier | Shanghai Jingsheng Optoelectronics Technology Co., Ltd |
Technical data
| Product name | Long pass Filter |
|---|---|
| Material | K9,BK7,B270,quartz,Float glass,D263T,Fused silica,etc. |
| Shape | Square, Round, Special Shape, etc. |
| Size | 3-1200mm |
| Thickness | 1.2-5mm |
| Finish | 10/5~60/40 |
| Thickness Tolerance | 0.3-50±0.02mm |
| Surface Type | λ/10 |
| Surface Quality | 10-5 |
| Chamfer | 45°×0.2mm |
What to specify when you request a quote
- Spectral target — listed as “Customized”; state the centre or edge wavelength, the bandwidth and the minimum transmission in the passband.
- Blocking — give the blocking range and optical density (OD) the system needs.
- Angle of incidence — listed as “45°”; interference filters shift with angle, so specify the operating angle and cone.
- Size and thickness — listed as “Customized”; give outline, thickness and tolerance, and whether the filter is mounted.
- Substrate — listed as “Glass”; name the substrate glass if thermal or UV behaviour matters.
- Surface quality — quote scratch-dig for imaging paths.
