Product type: Measurement Type. Application: School, Hospital, Lab. Model: HB-cell.
Overview

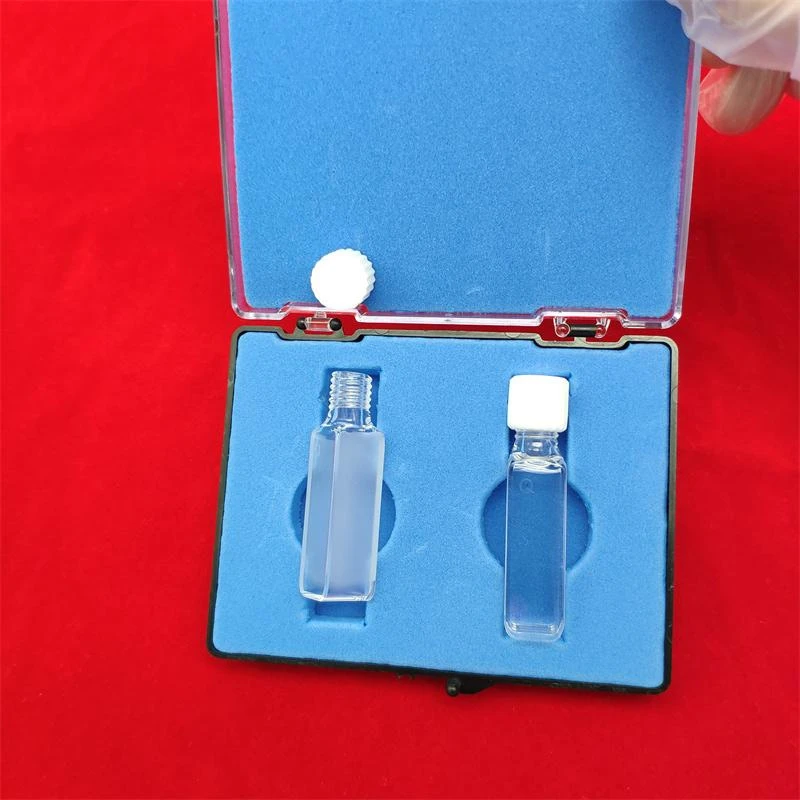

The Factory Supply Two Sides Clear Quartz Glass Standard Flow Cell Cuvette is supplied as an optical cuvette made from Quartz Glass. Listed geometry: size Customized. Optical / electrical data: transmittance 190nm-2500nm, Transmittance in 200nm UV Band ≥85%, sheet resistance -40℃~+200℃, some models support 121℃ autoclaving. Temperature -40℃~+200℃, some models support 121℃ autoclaving. It is used in School, Hospital and Lab. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Quartz Glass |
|---|---|
| Type | Measurement Type |
| Size | Customized |
| Application | School, Hospital, Lab |
| Model NO. | HB-cell |
| Name | IR Quartz Glass Popular Standard Cells with |
| Color | Clear |
| Structure | Portable |
| Transmittance Range | 190nm-2500nm, Transmittance in 200nm UV Band ≥85% |
| Material Purity | High-purity fused quartz (SiO2content ≥99.99%), no impurity interference |
| Optical Path Specifications | 0.1mm, 0.5mm, 1mm, 5mm, 10mm, 20mm, 30mm, 50mm, 100mm |
| Capacity Range | 0.05mL (micro-volume) – 20mL (large volume) |
| Temperature Resistance | -40℃~+200℃, some models support 121℃ autoclaving |
| Optical Precision | Optical path error ±0.02mm, surface roughness ≤2nm |
| ISO 9001 | 2015 and IATF 16949 |
| ISO9001 | 2015 Quality Management System |
| Period of validity | from2024.10.17 to 2027.10.25 |
| Date | MAY .08.2026 |
| Supplier | Lianyungang Highborn Technology Co., Ltd. |
Technical data
| Material | Code | Transmission On Empty Cell | Deviations In Matching |
| Optical Glass | G | at 350nm approx. 82% | at 350nm max. 0.5% |
| ES Quartz Glass | Q | at 200nm approx. 80% | at 200nm max. 0.5% |
| IR Quartz Glass | I | at 2730nm approx. 88% | at 2730nm max. 0.5% |
What to specify when you request a quote
- Material — listed as “Quartz Glass”; name the glass (soda-lime, borosilicate, quartz) because it fixes UV transmission and chemical resistance.
- Dimensions — listed as “Customized”; give dimensions and tolerances.
- Surface and edges — state edge finish and any frosted or coated areas.
- Cleanliness and packing — state cleanliness level and packing for lab use.
