Product type: Thin Film Filter. Application: Medical.
Overview

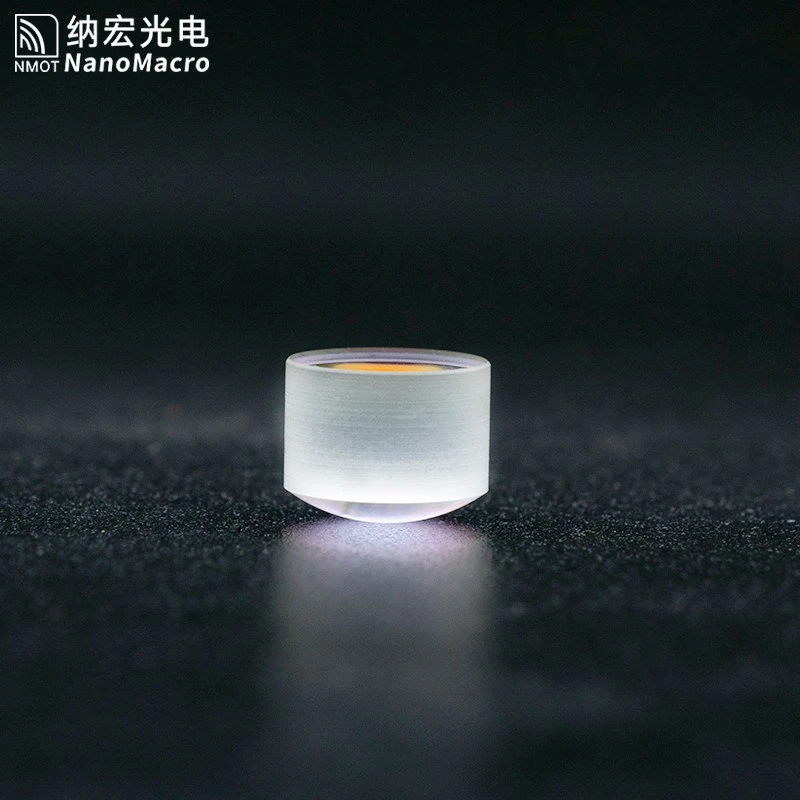

Fused Silica Optical Coated Meniscus Lens is an optical lens made from Glass. Listed geometry: size 80*80mm or Customized, thickness 5mm-10mm. Optical / electrical data: wavelength Customized, transmittance T>99%. Surface quality 60/40. Typical applications: Medical. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Thin Film Filter |
| Shape | Customized |
| Size | 80*80mm or Customized |
| Cwl | Customized |
| Surface Quality | 60/40 |
| Usage | Medical |
| Thickness Range | 5mm-10mm |
| Color | Transparent |
| Principle | Ar Coating |
| Angle of incidence | 0° |
| Transmition | T>99% |
| Cut off Band | 200-1100nm |
| Supplier | Nano Macro Optics Co.,Ltd. |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — listed as “80*80mm or Customized”; give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “60/40”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
