Product type: Prism. Application: Beam Dispersion, Beam Split. Model: TT Prism34.
Overview
Germanium/Zinc Sulfide/Zinc Selenide Uncoated Right Angle Triangular Prism is an optical prism made from Glass. Listed geometry: thickness as Required, right angle prism shape. Surface quality as Required. Typical applications: Medical Instrument. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Prism |
| Shape | Right Angle Prism |
| Thickness | as Required |
| Surface Quality | as Required |
| Application | Medical Instrument |
| Usage | Beam Dispersion, Beam Split |
| Model NO. | TT Prism34 |
| Supplier | Tianjin Tengteng Optoelectronic Technology Co., Ltd. |
Technical data

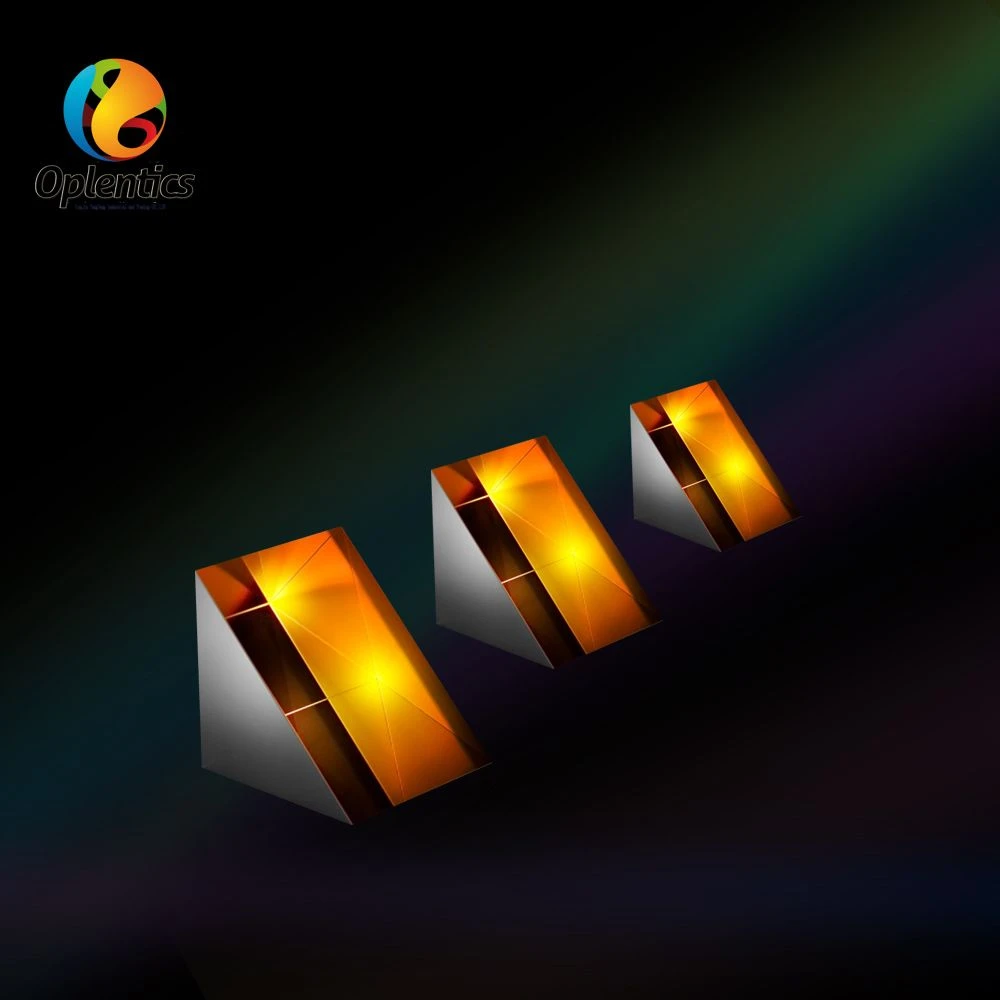

| Product Name | Germanium/Zinc sulfide/Zinc selenide Uncoated Right Angle Triangular Prism |
|---|---|
| Description | Right Angle Prisms are Prisms designed with a 90° angle |
| Material | Germanium/Zinc sulfide/Zinc selenide |
| Coating | Uncoated |
What to specify when you request a quote
- Material — listed as “Glass”; name the glass or crystal.
- Geometry — give diameter, focal length or radii, angles and tolerances.
- Surface figure — listed as “as Required”; quote surface figure (λ) and scratch-dig.
- Centring and edges — state centration and edge chamfer.
- Coating — list the band and reflectance or transmission target.
