Product type: Special Glass/High-Temperature-Resistant Glass. Application: Induction / Ceramic Cooktop Panels, Oven W. Model: HG-CG02. Function: Optical Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function.
Overview

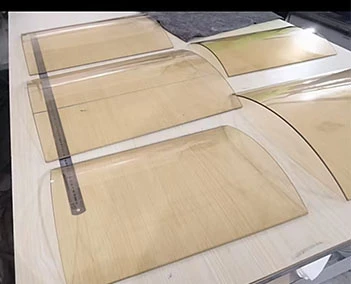

High Heat Resistant Tempered Glass Ceramic Light Brown Polished Surface 5mm Square Wood Stove Glass Mohs 7 Hardness RoHS Compliant in Stock Quick Shipment is an appliance glass. Listed geometry: flat & curved shape. Listed for Home Appliances, Electronics and Industry applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Type | Special Glass/High-Temperature-Resistant Glass |
|---|---|
| Shape | Flat & Curved |
| Application | Home Appliances/Electronics/Industry |
| Usage | Induction / Ceramic Cooktop Panels, Oven W |
| Model NO. | HG-CG02 |
| Structure | Crystal Structure |
| Moh's Hardness | 6.5 |
| Function | Optical Function, Thermal Function, Mechanics and Mechanical Function, Biological and Chemical Function |
| Transparency | Translucent |
| Processing Method | Phase & Crystallization |
| Preparation Process | Fusion Method |
| Color | Black/Clear/White |
| Standard delivery | 2-3 weeks after order confirmation. |
| Multi-layer protection | EPE foam liners + air column bags / bubble wrap, layered between each glass sheet |
| Supplier | Qingdao Hitech Glass Co.,Ltd |
Technical data
| No. | Property | Unit | Specification |
| 1 | Density | g/cm3 | 2.5 |
| 2 | Bending Strength | MPa | >=100 |
| 3 | Vickers Hardness | Hv | 700 |
| 4 | Young's Modulus | GPa | 90 |
| 5 | Thermal Expansion Coefficient (20-700C) | x10-6 /K | 0 ~ 0.1 |
| 6 | Thermal Shock Resistance | C | >=700 |
| 7 | Short-term Heat Resistance | C | 800 |
| 8 | Working Temperature (continuous) | C | 700 – 800 |
| 9 | Thickness Range | mm | 4 – 6 |
| 10 | Max Panel Size | mm | 1800 x 1000 |
| 11 | Transparency | – | High (visible + IR) |
| 12 | Acid Resistance | – | Good (Class 3, DIN 12116) |
| 13 | Alkali Resistance | – | Good (Class 2, ISO 695) |
| 14 | Chemical Standard | – | ISO 719 / DIN 12116 / ISO 695 |
| 15 | Applications | – | Fireplace, stove, oven, industrial furnace |
| Packaging & Shipping | |
|---|---|
| Outer Package | Fumigation-free plywood crates , suitable for direct export without additional treatment |
| Inner Cushioning | Multi-layer protection: EPE foam liners + air column bags / bubble wrap, layered between each glass sheet |
| Separation | Glass sheets separated by interleaving paper or individually wrapped with anti-static film to prevent surface scratching |
| Edge Protection | Reinforced corner guards and edge protectors applied to all four corners and edges |
| Large-Format Glass | A-frame or L-frame metal rack packaging available for panels exceeding standard sizes |
| Customization | Custom packaging available upon request, tailored to product dimensions and destination requirements |
What to specify when you request a quote
- Glass type and thickness — name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “Flat & Curved”; send a drawing with outline, holes and edge finish.
