Product type: Glass Tube, Glass Tube. Application: Indutrial, Indutrial. Model: JSV-PBT.
Overview

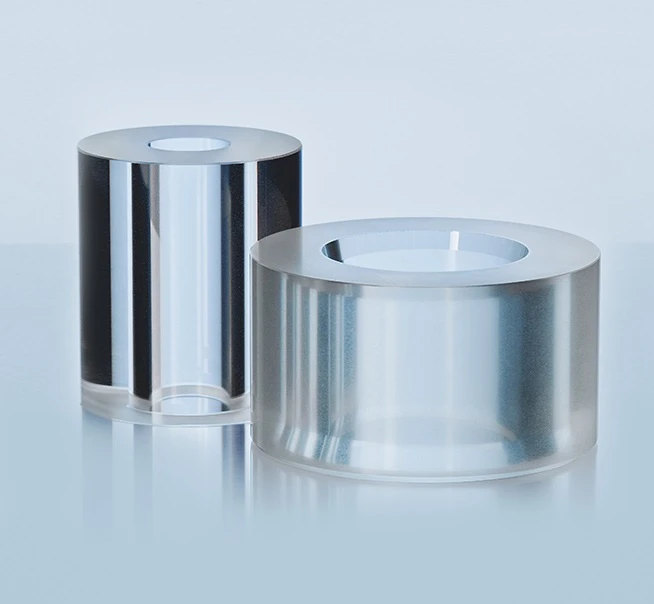

High Precision Bore Capillary Electronic Sealing Lead Glass Tubing: a sight / viewing glass made from Glass. Listed geometry: round shape. Listed for Indutrial applications. Dimensions, material grade, coating and finish can be quoted to your drawing; the values above are the listed starting point.
Specifications
| Material | Glass |
|---|---|
| Type | Glass Tube, Glass Tube |
| Shape | Round |
| Application | Indutrial, Indutrial |
| Color | Transparent, Transparent, Clear and Color |
| Model NO. | JSV-PBT |
| Glass Type | Hollow Glass, Hollow Glass |
| Recycled | Recycled |
| Flexibility | Hard |
| Logo Printing | with or Without Logo |
| Technics | Fused Glass |
| Processing | Cutting, Fire Polishing, Sealing |
| Workable | Blown and Pressed |
| Glass Tube | OD: 0.7 to 6mm; ID: 0.01 to 5.5mm |
| Glass Rod | Dia.:0.1 to 6mm |
| Glass Bead | OD: 0.7 to 6mm; ID: 0.01 to 5.5mm |
| Supplier | Jinan JSV Industrial Co., Ltd. |
Technical data
| Product Name | Precision bore elecronic glass tubePrecision bore elecronic glass rodPrecision bore elecronic glass beadFuse glass tube |
|---|---|
| Glass Type | Borosilicate glass, soda lime glass, lead free glass, lead glass, custom glass type is available |
| Size | Glass Tube: OD: 0.7 to 6mm; ID: 0.01 to 5.5mmGlass Rod: Dia.:0.1 to 6mmGlass Bead: OD: 0.7 to 6mm; ID: 0.01 to 5.5mm |
| Processiong | Cutting, grinding, polishing, direct drawing, redrawing, forming, reforming, melting |
| Application | Electronics, lighting, optical communication, fuse glass, electronic sealing glass, |
| Packing | Plastic bag, box, carton, pallet, wooden crate |
What to specify when you request a quote
- Glass type and thickness — listed as “Glass”; name the glass and thickness.
- Temperature and pressure — give working temperature, thermal shock and any pressure rating.
- Strengthening and safety — state tempering, lamination or the safety standard.
- Outline and edges — listed as “Round”; send a drawing with outline, holes and edge finish.
